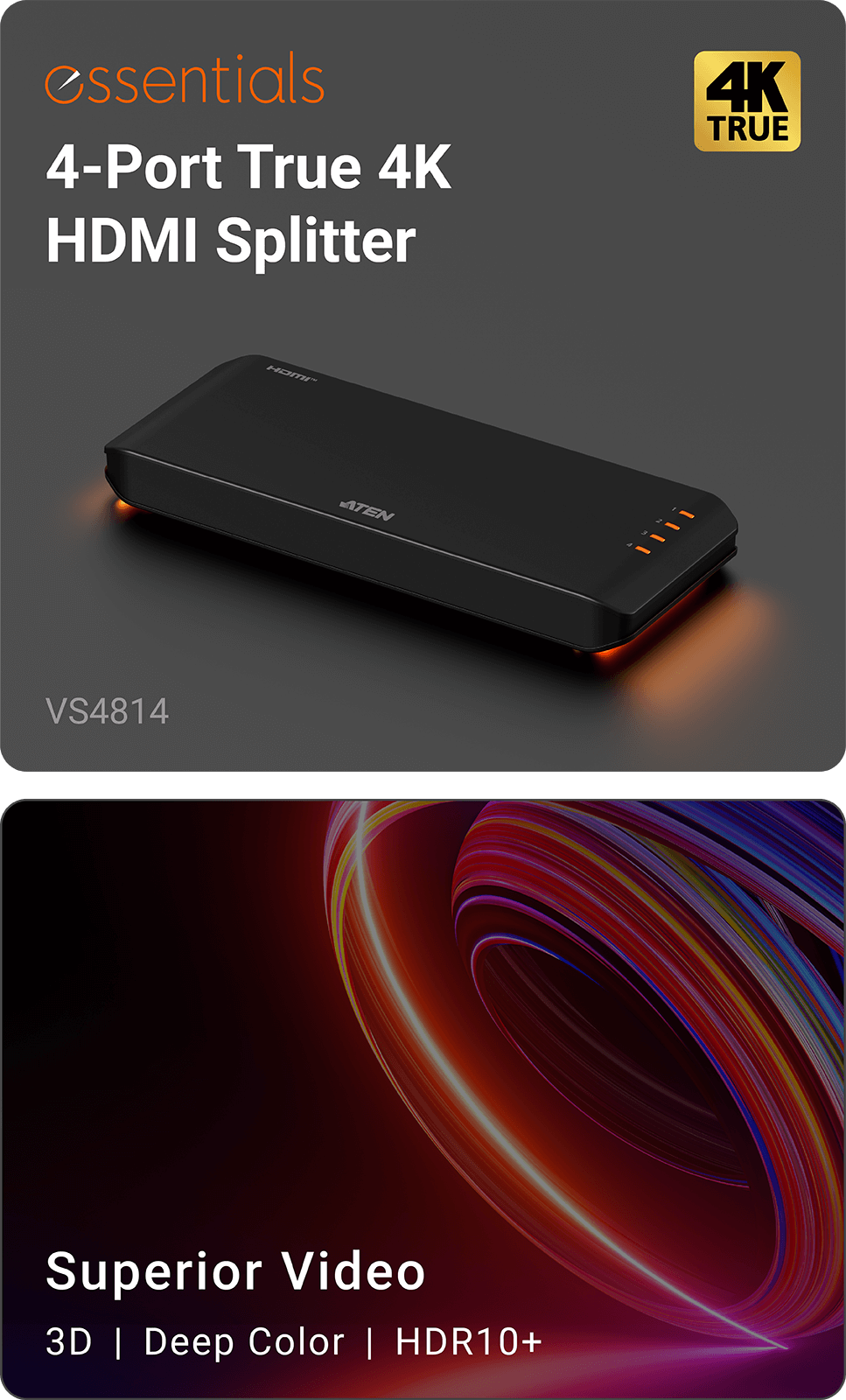

4-Port True 4K HDMI Splitter

New
VS4814

Your go-to HDMI splitter for home entertainment, commercial, and professional AV.

  • EDID Sync™ – avoids boot-up display issues & optimizes resolutions
  • One HDMI source shares four True 4K displays
  • LPCM 7.1, Dolby® & DTS-HD Master Audio™
  • Compact and aesthetic design with slick accent light
  • All Features

Add to Quote Cart
MSRP:Quote Upon Request

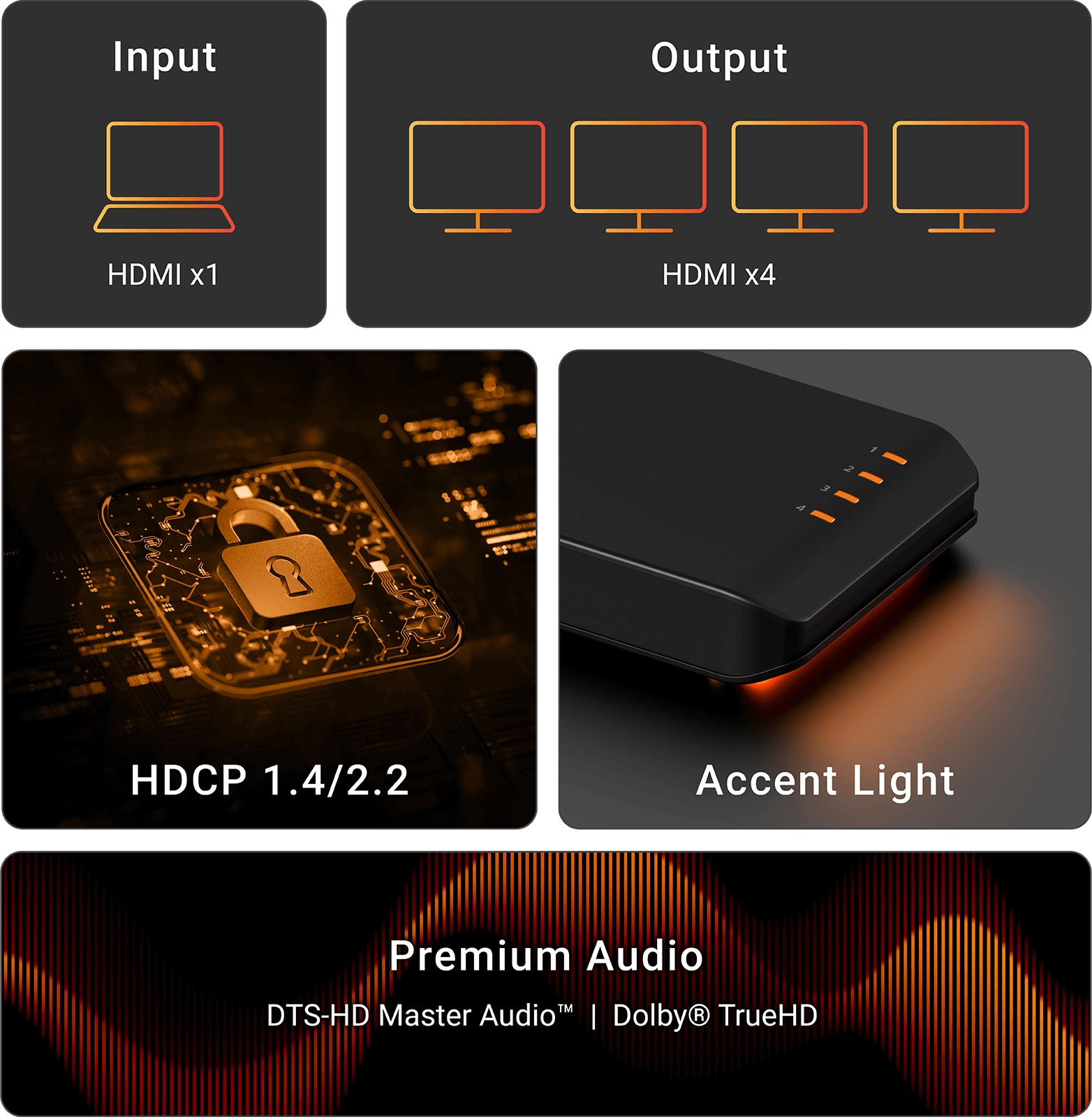

1-in 4-out HDMI Distribution Up to True 4K

Brilliant True 4K,
Effortlessly Multiplied Across Four Streams

The VS4814 is a 4-Port True 4K HDMI Splitter engineered to meet the highest demands of modern digital signage and commercial display applications. Featuring EDID Sync™, it delivers up to four simultaneous video streams from a single HDMI source, ensuring HDMI and HDCP 2.2-compliant visual excellence at all times. With support for HDR10+, 3D formats, and Deep Color, the VS4814 provides richer contrast and a wider color spectrum for truly immersive viewing experiences.

Sleek.
Compact.
Portable.

Accent Light

Stay in Sync with a Stylish Glow

True 4K + HDR

Crisp, Ultra High-Def Clarity

Broad Device Compatibility

Works with a wide range of input and output devices.

One Source, 4 Times the Impact with True 4K

Slide Content

Commercial Space

Slide Content

Sports Bar

Previous Next

What’s in the Box

Talk to Our Experts

If you prefer to have ATEN contact you, please complete the form and a representative will be in touch with you shortly

Package Contents

  • 1x 4-Port True 4K HDMI Splitter
  • 1x USB power cable (Type-C to Type-A) (1 m)
  • EDID Sync™ Smart Display Optimization
    • Automatically optimizes resolutions and prevents display issues for flawless display presentation



  • True 4K Dual-Display Sharing
    • Shares one HDMI source across four True 4K displays for maximum visual impact with uncompromised quality



  • HDMI 3D/Deep Color, HDR10+, HDCP 2.2 Compatible
    • Guarantees stable performance, broad compatibility, and superior image quality



  • Master-Class Audio Immersion
    • Full support for LPCM 7.1, Dolby® & DTS-HD Master Audio™ delivers theatrical-quality surround sound



  • Aesthetic Compact Form
    • Slim profile and stylish accent lighting allow integration into any space, perfectly complementing your setting
Video Input
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ω
Max. Distance3m at 3840x2160 @ 60Hz (4:4:4)
Video Output
Interfaces4 x HDMI Type A Female (Black)
Impedance100 Ω
Max. Distance3m at 3840x2160 @ 60Hz (4:4:4)
Video
Max. Data Rate18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock600 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP 2.2 Compatible
Max. Resolution3840 x 2160 @ 60Hz (4:4:4)
Audio
Input1 x HDMI Type A Female (Black)
Output4 x HDMI Type A Female (Black)
Connectors
Power1 x USB-C (5V/1A)
Cable Length
USB Cable1 x USB Type-C to Type-A (1m)
LEDs
LED Indicator4 x Port Indicator (Orange)
Power2 (Orange, Bottom Side)
Environmental
Operating Temperature0-40 °C
Storage Temperature-20 - 60 °C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPC
Weight0.10 kg ( 0.22 lb )
Dimensions (L x W x H)14.50 x 5.65 x 1.52 cm
(5.71 x 2.22 x 0.6 in.)
Carton Lot20 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

VS4814-4-Port-True-4K-HDMI-Splitter-datasheet-en.pdf (1.25 MB)
