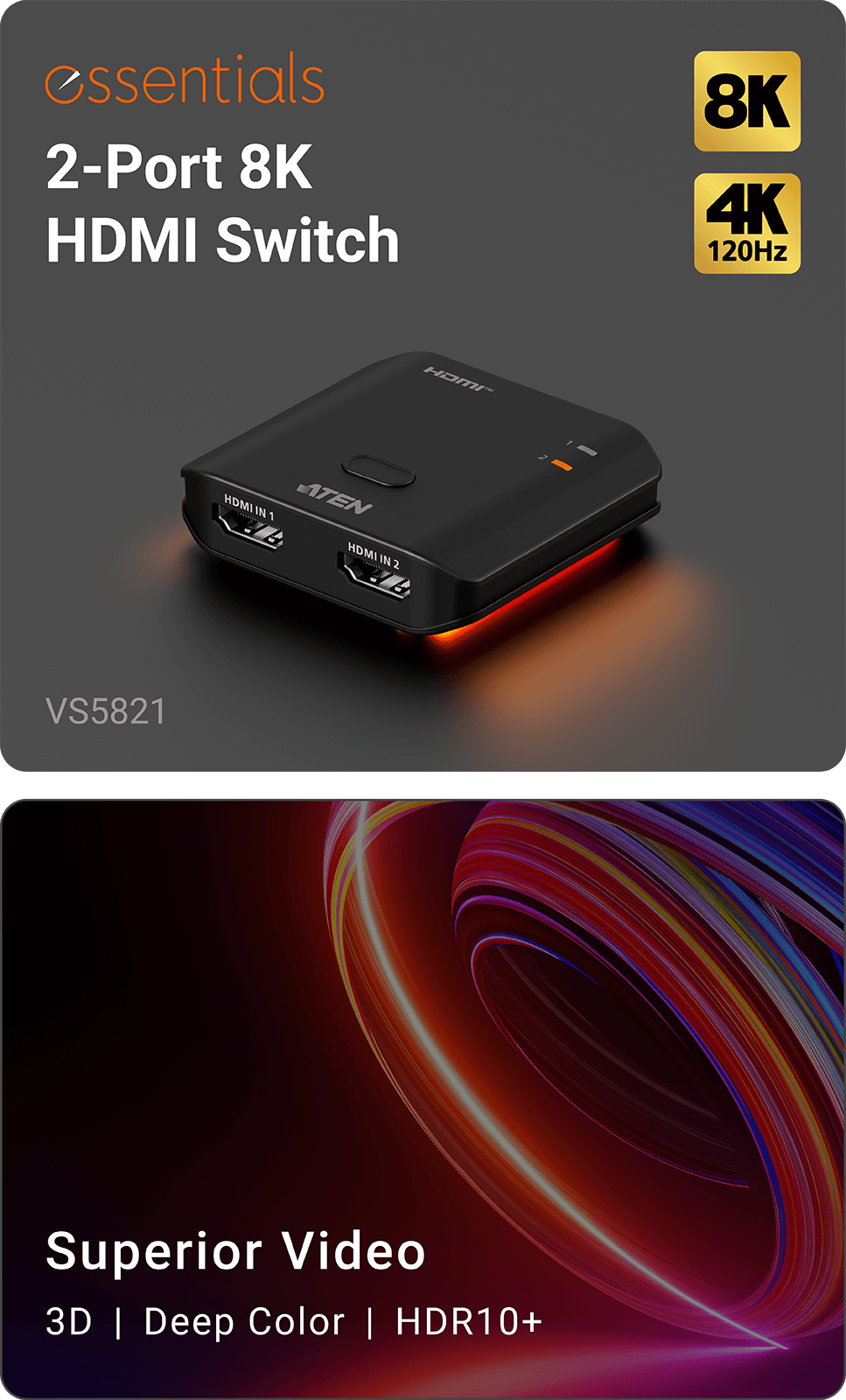

2-Port 8K HDMI Switch

New
VS5821

Your go-to HDMI switch for modern gaming, personal entertainment, and professional AV.

  • RapidSync™ – high-speed AV switching
  • 8K @ 60Hz / 4K @ 120Hz exquisite visual clarity
  • LPCM 7.1, Dolby® & DTS-HD Master Audio™
  • Supports VRR & ALLM
  • All Features

Add to Quote Cart
MSRP:Quote Upon Request

One-Button Switching
between 2 HDMI Sources Up to 8K

Instant Switching, Exceptional Detail,
Vibrant 8K Visuals

Upgrade your viewing experience with the VS5821, a 2-Port HDMI Switch engineered to deliver next-generation 8K Ultra HD performance for both personal entertainment and professional AV setups. Featuring RapidSync™, you can experience high-speed AV switching between two video sources on a single display in an instant. With just a simple press on the pushbutton, immerse yourself in a visual extravaganza of ultra-sharp detail, vibrant color, and cinematic sound – no fuss, no extra cost, just pure satisfaction.

Aesthetic.
Compact.
Portable.

Accent Light

Stay in Sync with a Stylish Glow

8K + HDR

Vivid, lifelike Visuals
with Vibrant Color Depth

Dive in. Game on.

Enjoy ultra-smooth, responsive gameplay.

Captivating Cinematic Audio-Visual Mastery

DTS-HD Master Audio™ | Dolby® TrueHD

Up to 48 Gbps
Ultra High Speed Video Transmission

One-Button Switch
2-to-1 RapidSync™

One-Button Switch. Wherever AV Reaches.

Slide Content

Home Office

Slide Content

Gaming Console

Slide Content

Home Entertainment

Slide Content

Meeting Presentation

Previous Next

What’s in the Box

Talk to Our Experts

If you prefer to have ATEN contact you, please complete the form and a representative will be in touch with you shortly

Package Contents

  • 1x 2-Port 8K HDMI Switch
  • 1x USB power cable (Type-C to Type-A) (1 m)
  • RapidSync™ High-Speed AV Switching
    • Ensures instant synchronization and ultra-fast transitions, eliminating signal delay



  • Ultra-High Resolution Visuals
    • Delivers 8K @ 60Hz and 4K @ 120Hz for exquisite clarity and unparalleled realism



  • Variable Refresh Rate (VRR)
    • Synchronizes frame rate to eliminate screen tearing and stutter for ultra-smooth gameplay



  • Auto Low Latency Mode (ALLM)
    • Automatically switches to game mode, dramatically reducing input lag for responsive control



  • HDMI 3D/Deep Color, HDR10+, HDCP 2.3 Compatible
    • Guarantees stable performance, broad compatibility, and superior image quality



  • Master-Class Audio Immersion
    • Full support for LPCM 7.1, Dolby® & DTS-HD Master Audio™ delivers theatrical-quality surround sound



  • Instant Source Switching
    • Easily switches between two HDMI sources via pushbutton for quick, hands-on control



  • Aesthetic Compact Form
    • Slim profile and stylish accent lighting allow integration into any space, perfectly complementing your setting
Video Input
Interfaces2 x HDMI Type A Female (Black)
Impedance100 Ω
Max. Distance1.5m at 7680x4320 @ 60Hz (4:2:0)
Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ω
Max. Distance1.5m at 7680x4320 @ 60Hz (4:2:0)
Video
Max. Data Rate48 Gbps
ComplianceHDMI (3D, Deep Color, 8K)
HDCP 2.3 Compatible
Max. Resolution7680x4320 @ 60Hz (4:2:0)
Audio
Input2 x HDMI Type A Female (Black)
Output1 x HDMI Type A Female (Black)
LEDs
Selected2 x Port Selector (Orange)
Power2 (Orange, Bottom Side)
Connectors
Power1 x USB-C (5V/1A)
Cable Length
USB Cable1 x USB Type-C to Type-A (1m)
Environmental
Operating Temperature0-40 °C
Storage Temperature-20 - 60 °C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPC
Weight0.03 kg ( 0.07 lb )
Dimensions (L x W x H)6.10 x 56.50 x 1.52 cm
(2.4 x 22.24 x 0.6 in.)
Carton Lot20 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

VS5821-2-Port-8K-HDMI-Switch-datasheet-en.pdf (1.38 MB)
