USB HDMI Dual View HDBaseT™ 2.0 KVM Extender (4K@100m for Single View)

New
CE824

An extender kit that enables long distance transmission of multiple signals and HDMI dual view access to a distant computer for KVM control from remote console.

  • Allows HDMI dual view access to a distant computer for KVM control from remote console
  • Transmits uncompressed HDMI video / stereo audio / USB / RS-232 signals via one single Cat 6 / 6A / ATEN 2L-29330 cable over long distances:
    – Standard mode supports single view at up to 4K or dual-view up to 1080p over 100 m
    – Long Reach mode supports single view at up to 1080p or dual-view up to 720p over 150 m*

Add to Quote Cart
MSRP: Quote Upon Request

ATEN CE824 adopts HDBaseT 2.0 technology to transmit uncompressed HDMI video, stereo audio, USB, and RS-232 signals while supporting up to 4096 x 2160 @ 30Hz (4:4:4) on a single display / 1080p on dual displays across 100 m over a single Cat 6 / 6A cable (ATEN 2L-29330 recommended), allowing access to a distant computer for KVM control from the remote console. With Long Reach Mode enabled, the CE824 can extend 1080p HDMI source along with other signals up to 150 m.* The ease of cabling installation plus the rack mount compatibility assure a more efficient system setup. The CE824 serves as an ideal solution forapplications that require high-quality multi-signal extension and KVM control across long distances – such as control centers, banking and finance sectors, industrial warehouses, and extended workstations.

Note: 1080p @ 150 m can only be achieved via single display installation.

  • Allows HDMI dual view access to a distant computer for KVM control from remote console
  • Transmits uncompressed HDMI video / stereo audio / USB / RS-232 signals via one single Cat 6 / 6A / ATEN 2L-29330 cable over long distances:
    – Standard mode supports single view at up to 4K or dual-view up to 1080p over 100 m
    – Long Reach mode supports single view at up to 1080p or dual-view up to 720p over 150 m*
  • 4 x USB 2.0 Type-A ports on the remote unit for connection to multiple USB peripherals
  • Supports 2-channel stereo audio
  • EDID buffer for smooth power-up and the highest quality display
  • PC wakeup function enabled via a pushbutton through RS-232
  • HDCP compatible
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • DC Jack with screw-lock ensures stable and secure connection
  • Rack mountable

    Note: 1080p @ 150 m can only be achieved via single display installation.
FunctionCE824LCE824R
Connectors

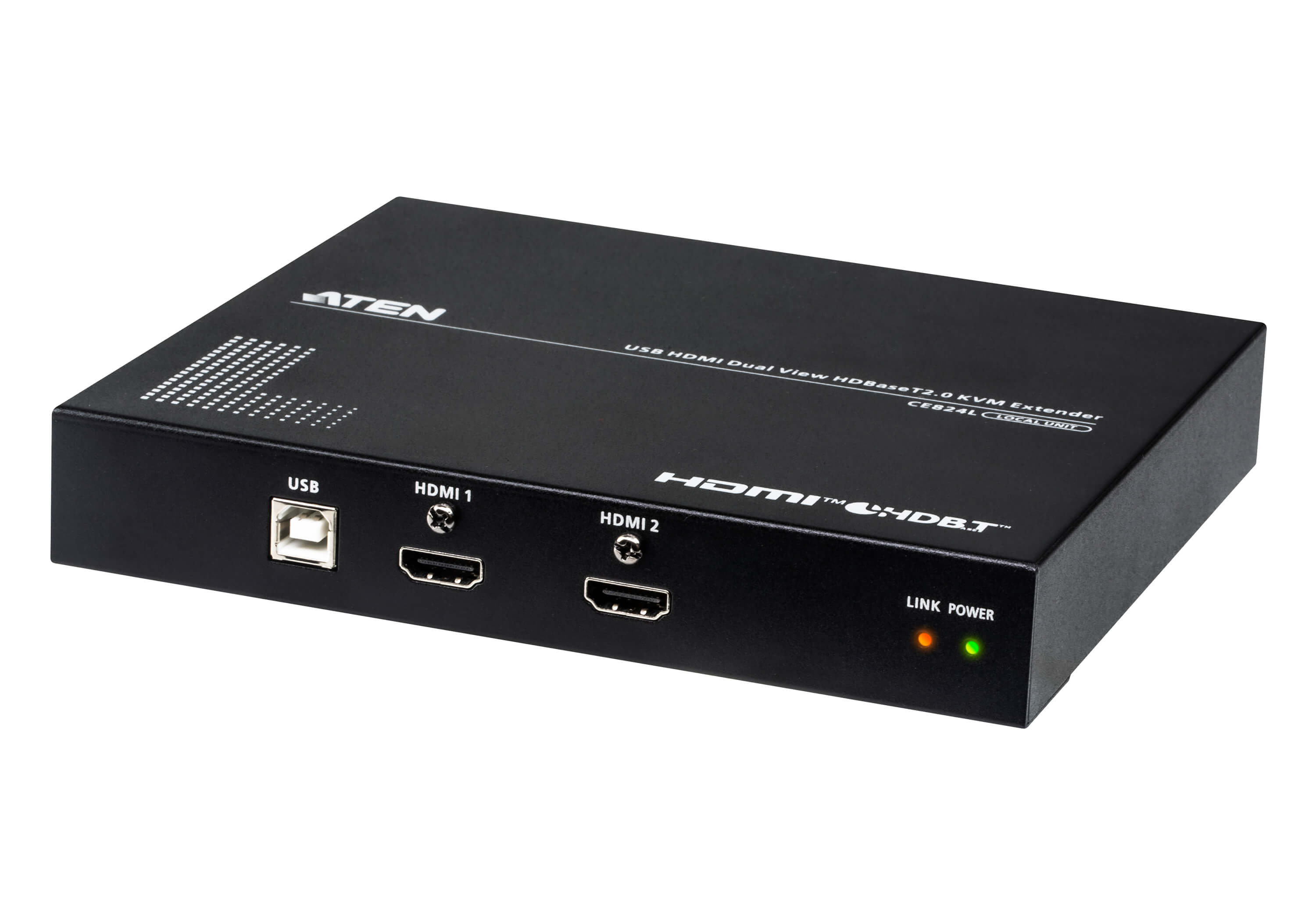

KVM Ports2 xHDMI Female (Black)
1 x USB Type B Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)		N/A

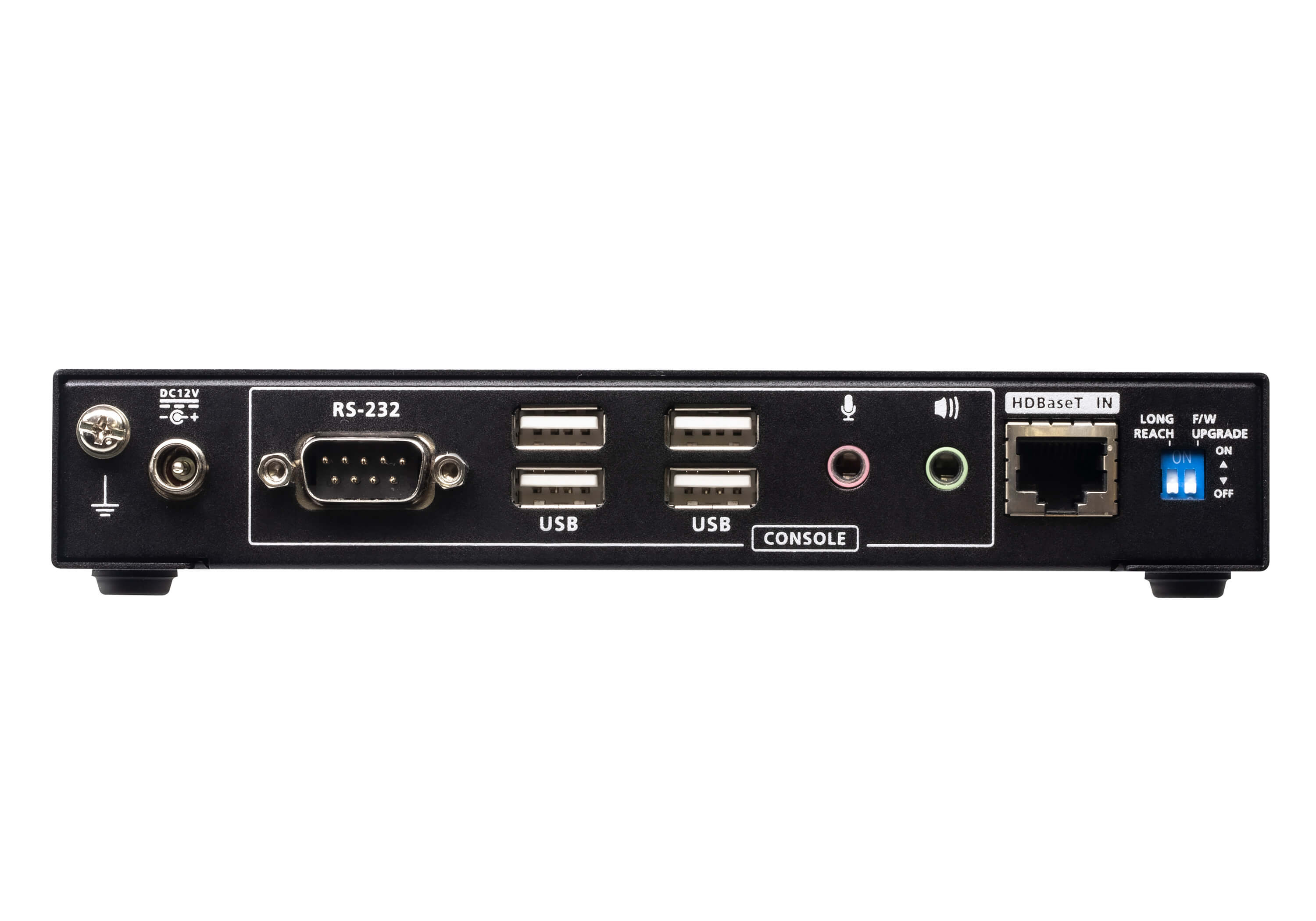

Console PortsN/A2 x HDMI Female (Black)
4 x USB Type A Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)

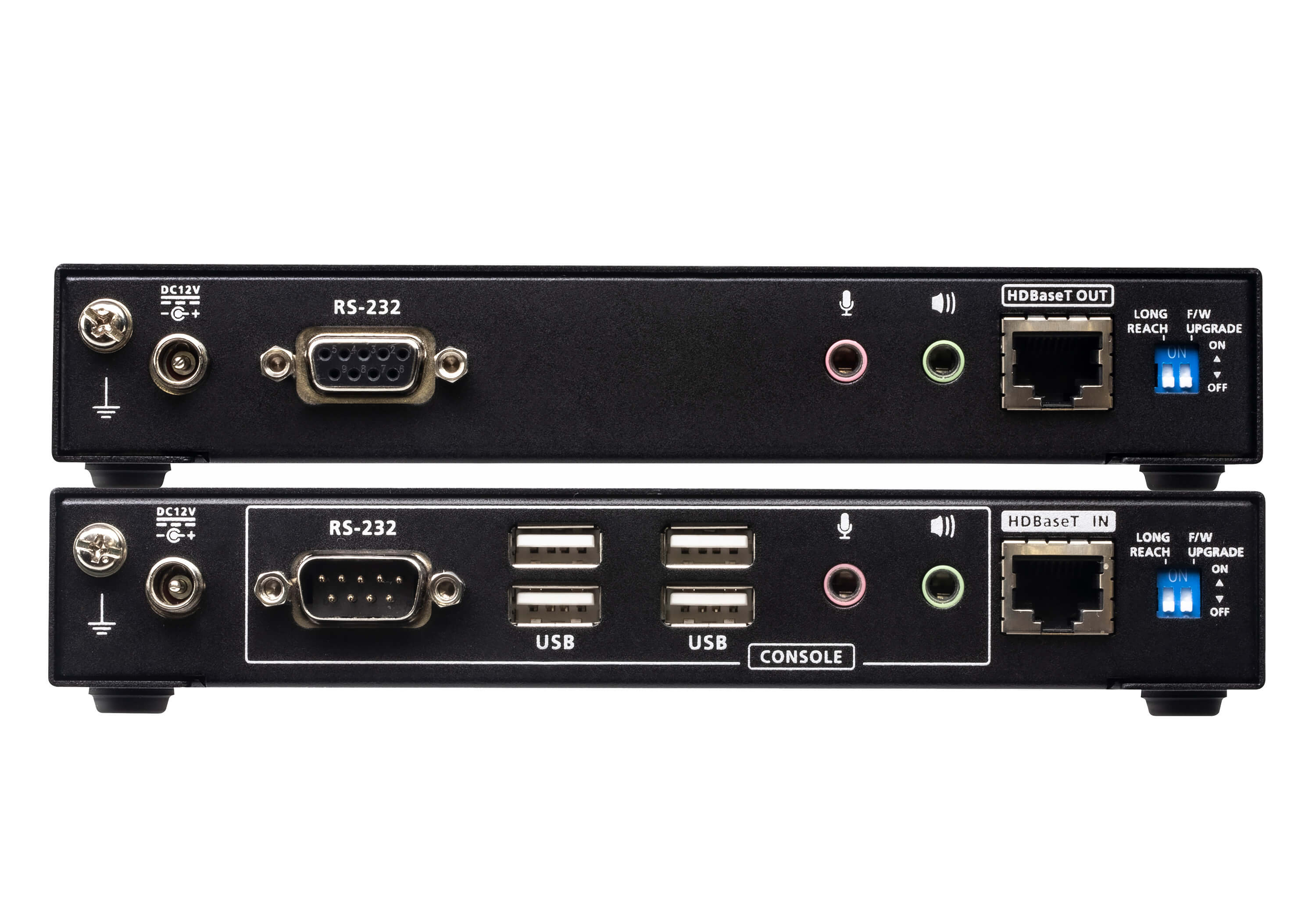

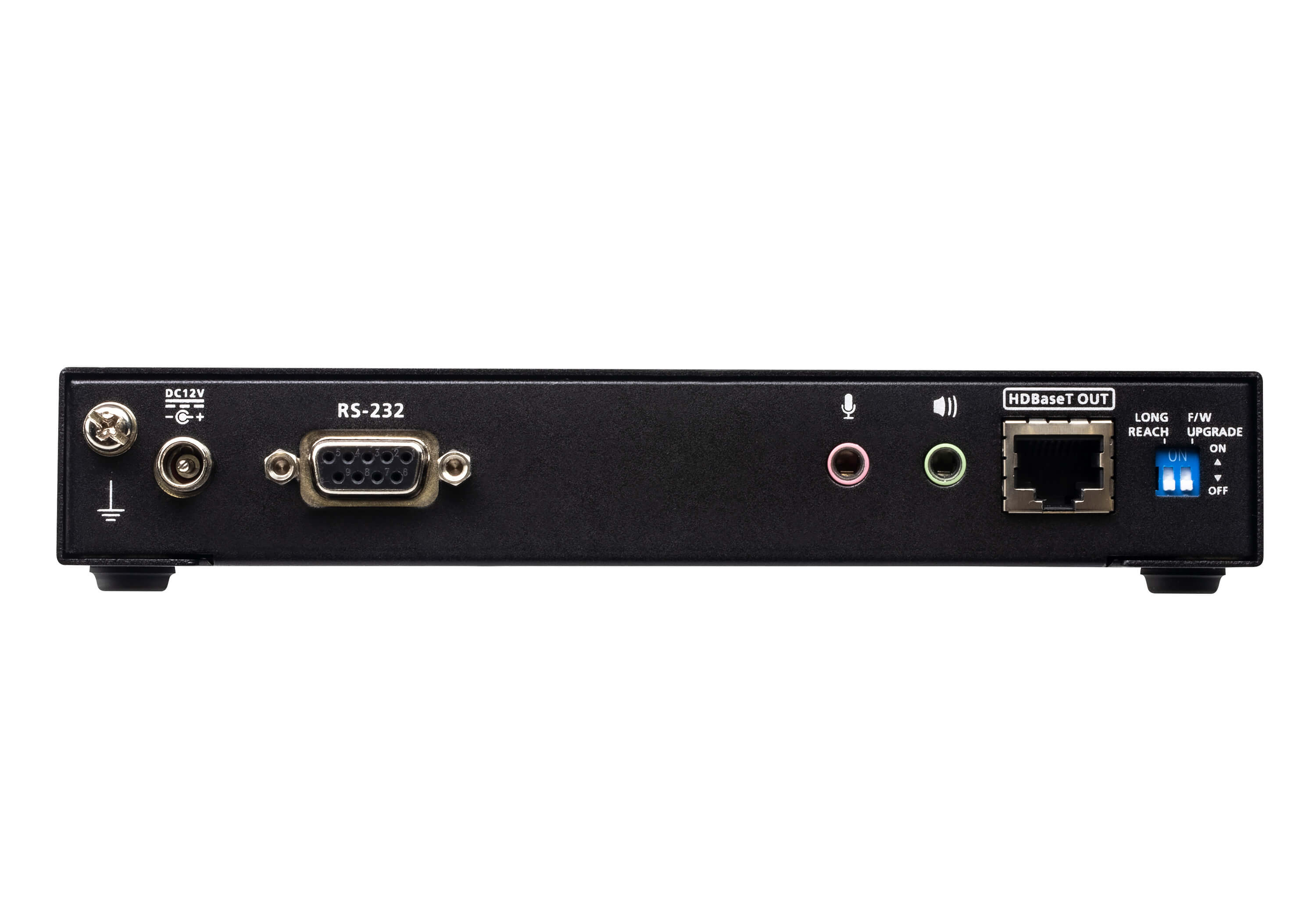

RS-2321 x DB-9 Female (Black)1 x DB-9 Male (Black)
Power1 x DC Jack (Black)1 x DC Jack (Black)
Unit To Unit1 x RJ-45 Female (Black)1 x RJ-45 Female (Black)

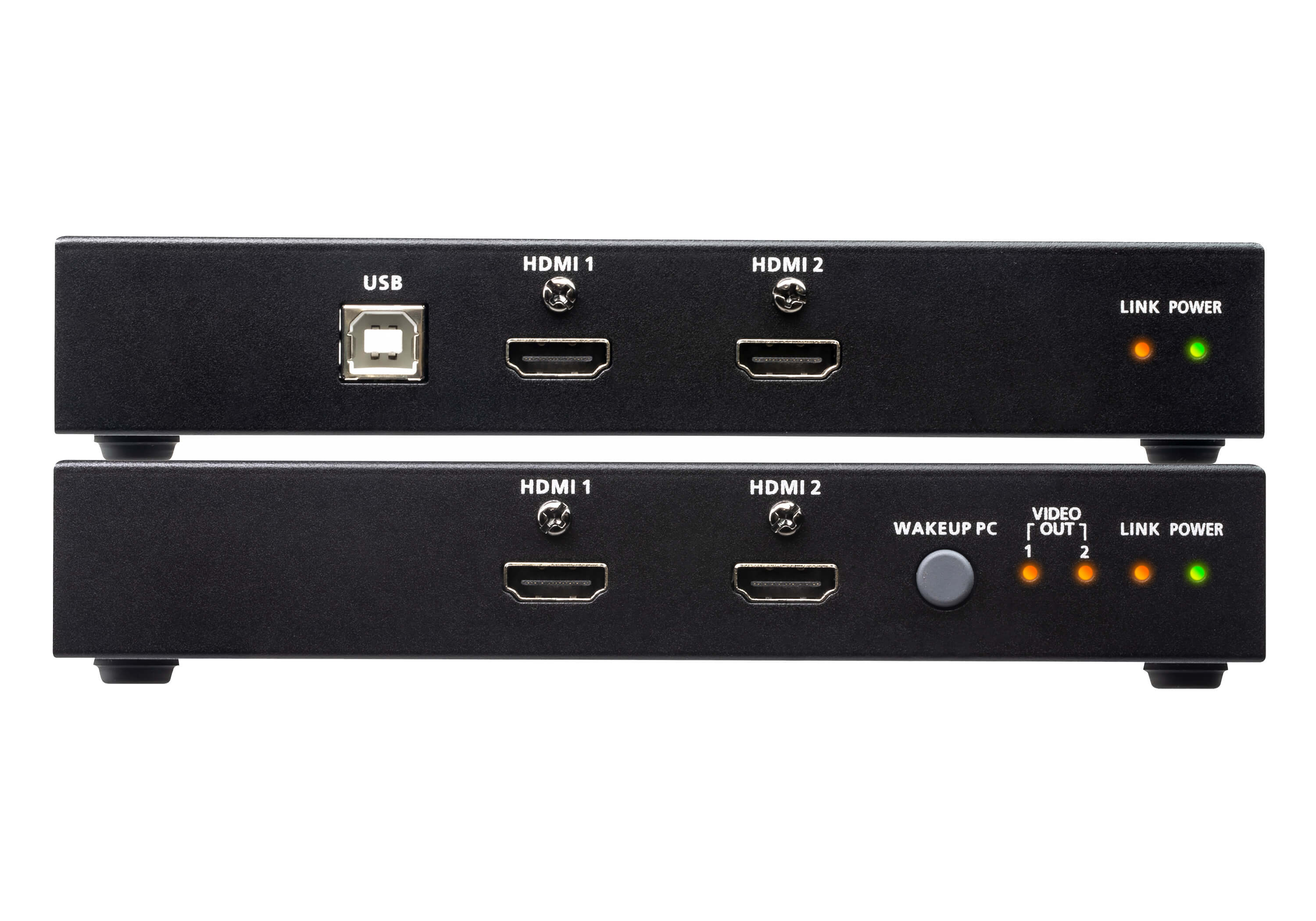

LEDs
Power1 (Green)1 (Green)
Link1 (Orange)1 (Orange)
Video OutputN/A2 (Orange)
Switches
Long Reach Mode Switch1 x Slide Switch1 x Slide Switch
Firmware Upgrade1 x Slide Switch1 x Slide Switch
Pushbuttons

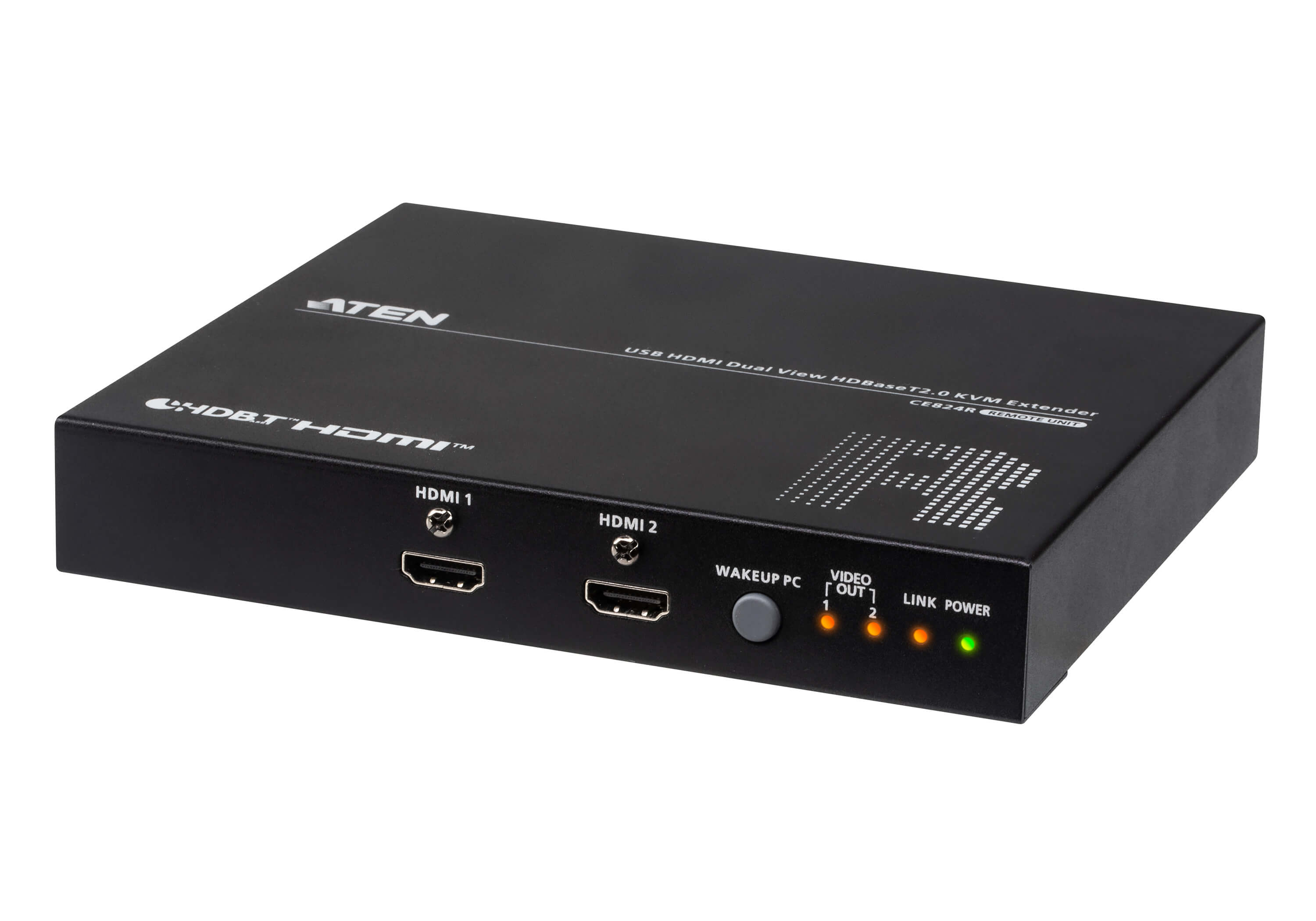

Wakeup buttonN/A1 x Pushbutton
VideoSingle view: Up to 4K@100m (Cat 6/6a/ATEN 2L-29330 Cat 6A)
1080P@150m (Cat 6/6a/ATEN 2L-29330 Cat 6A) with Long Reach Mode enabled

Dual-view: Up to 1080p@100m (Cat 6/6a/ATEN 2L-29330 Cat 6A)

*4K supported:
4096 x 2160 @ 60Hz (4:2:0), 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)		Single view: Up to 4K@100m (Cat 6/6a/ATEN 2L-29330 Cat 6A)
1080P@150m (Cat 6/6a/ATEN 2L-29330 Cat 6A with Long Reach Mode enabled

Dual-view: Up to 1080p@100m (Cat 6/6a/ATEN 2L-29330 Cat 6A)

*4K supported:
4096 x 2160 @ 60Hz (4:2:0), 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Power ConsumptionDC12V:5.98W:28BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.		DC12V:10.32W:57BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0–40°C0–40°C
Storage Temperature-20–60°C-20–60°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingMetalMetal
Weight0.79 kg ( 1.74 lb )0.82 kg ( 1.81 lb )
Dimensions (L x W x H)17.42 x 15.59 x 2.88 cm
(6.86 x 6.14 x 1.13 in.)		17.42 x 15.59 x 2.88 cm
(6.86 x 6.14 x 1.13 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Remote HDMI out640 x  480 @ 60/67/72/75 Hz1920 x 1200 @ 60 Hz (+ Reduced Blanking)
720 x 400 @ 70 Hz1080p @ 24/25/30/50/60 Hz
800 x 600 @ 56/60/72/75 Hz480p @ 60 Hz (4:3 / 16:9)
1024 x 768 @ 60/70/75 Hz720p @ 50/60 Hz
1280 x 800 @ 60 Hz1080i @ 50/60 Hz
1280 x 1024 @ 60/75 Hz576p @ 50 Hz (4:3 / 16:9)
1400 x 1050 @ 60 Hz3840 x 2160p @ 24/25/30 Hz
1440 x 900 @ 60 Hz3840 x 2160p @ 50/60 Hz 4:2:0
1600 x 1200 @ 60 Hz4096 x 2160p @ 24/25/30 Hz
1680 x 1050 @ 60 Hz4096 x 2160p @ 50/60 Hz 4:2:0
1920 x 1080 @ 60 Hz

Datasheet

CE824-USB-HDMI-Dual-View-HDBaseT™-2.0-KVM-Extender-Datasheet-en.pdf (1.08 MB)
File NameRelease Date
ce824-user-manual-w.pdf (957.89 KB) 2025-11-10
