ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN4164V features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.
New KN Series Exclusive :
• Advanced FPGA graphics processor – with an Full HD resolutions of 1920 x 1200 • Extreme virtual media speed – 2 x faster virtual media transmission speed • High grade security – supports FIPS 140-2 level 1 security standards
With dual on-board NICs and dual power supplies, the KN series are built for reliability, to ensure 24/7 availability of remote access to all servers.

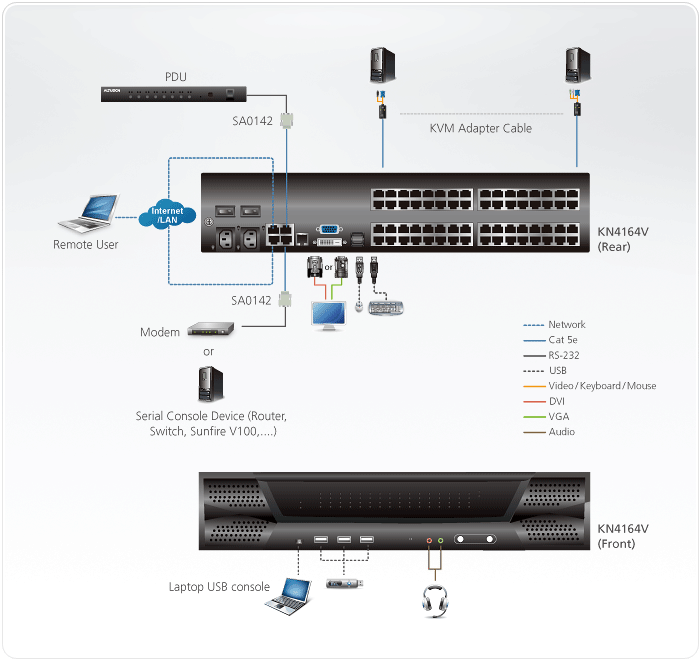

The KN series offers out-of-band (OOB) management that enables IT administrators to manage network devices (e.g. server, storage, router/switch) in server rooms via management networks that are separate from the main/production networks. So if there’s difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods, such as a direct console connection from a local computer, a USB console connection from a laptop, a PSTN connection via modem, or a dedicated management network connection via the Ethernet (LAN) port.
KN series devices can be integrated into the CC2000 Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world – allowing IT administrators to remotely monitor and control all devices on a network, including blade servers and virtual machines.
In addition, the KN series is compatible with ATEN’s KVM over IP Console Station, the KA82 series. The KA82 series is a hardware-based standalone console solution that can centrally manage multiple KN devices. It is especially suitable for environments where a PC is not allowed. The KVM over IP Console Station features a 0U space-saving compact design and low power consumption for 24/7 operations.
To help you manage and control an entire data center, ATEN KVM over IP switches support blade servers and chassis. With powerful features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches’ user interface.
Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode™, Mouse DynaSync™ and the Adapter ID.
A Windows Client and a Java Client are available for remote access. They allow IP connection and login from anywhere over the internet. In addition, ATEN also provides an iOS APP - PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from your iPad. Please visit the PadClient webpage for more information.
ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services possible.
1x KN4164V KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x Power Cords
1x Mounting Kit
1x Lok-U-Plug Installation Tool
1x Foot Pad Set (4 pcs.)
1x User Instructions
New KN Series Exclusive
Advanced FPGA graphics processor – with an Full HD resolution of 1920 x 1200
Extreme virtual media speed – 2 x faster virtual media transmission speed
High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Simultaneously share one local console and four/eight independent connections to the attached servers
High port density – RJ-45 connectors and Cat 5e/6 cable for up to 64 ports in a 2U housing
Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation
Four or eight separate buses for remote KVM over IP access
Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
Blade server support
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Dual Power Supply
High video resolution – up to 1920 x 1200 @ 60Hz – 24 bit color depth for the local console up to 50m, and 24 bit for the remote sessions
Monitor and control up to 64 computers on a single level, or control up to 512 computers in a cascade* * Cascade-compatible KVM Switches include the following: CS9138, CS1308, CS1316, KH1508A, KH1516A and KH1532A
Up to 64 user accounts
Up to 32 concurrent logins
Green IT-Fan speed varies according to temperature
Event logging and Windows-based Log Server support
Critical system event notification via SMTP email; SNMP trap and Syslog support
Customizable events notification
Out-of-Band Access-Modem dial-in/dial out/dial back support
Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
Port Share Mode allows multiple users to gain access to a server simultaneously
