ATEN Control System - 8-button Keypad (US, 1 Gang)


VK108US
  • Key pad - provides physical connection to the ATEN Control System
  • Fully customizable with 14 layout combinations of 4 to 8 buttons; customized button engraving service
  • Easy ID paring with Control Box for Ethernet communication
  • Up to 8 keypads connect to a single Control Box for future scalability
ROHS
Weee

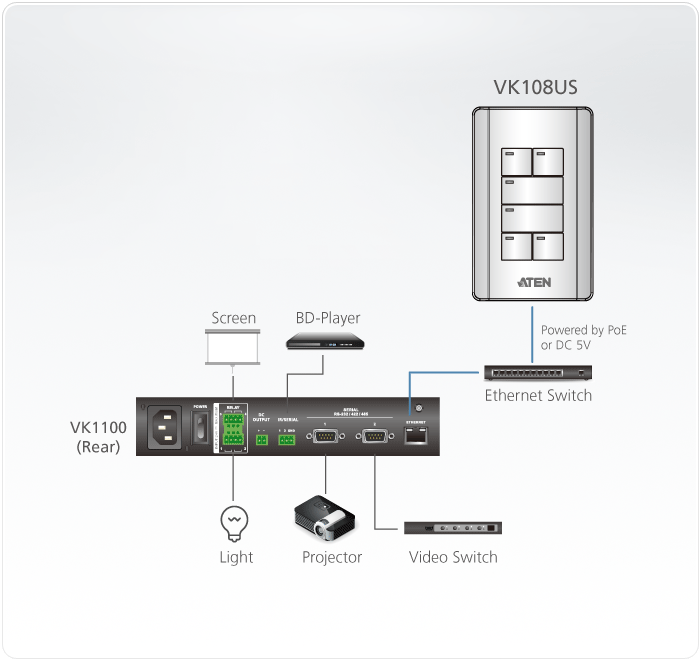

The VK108US is a fully-customizable 8-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the one-gang keypad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego’s. By connecting to the VK2100/VK1100 Control Box over a LAN, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the button’s ready to go, you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK108US is an affordable solution, perfect to serve as the primary interface in small meeting rooms, or as secondary device control in classrooms and conference centers.

Keypad Layout Example



Custom button placement on the keypad can be set in 14 different combinations of 4 to 8 buttons. The example above shows the 10 most commonly used.


Package Contents

  • 1x VK108US Keypad
  • 1x Button Pack
  • 1x Terminal Block
  • 1x Faceplate
  • 1x User Instructions
  • Key pad - provides physical connection to the ATEN Control System
  • Fully customizable with 14 layout combinations of 4 to 8 buttons
  • System LED indicators for quick connection status check
  • Dual-color button LEDs for clear indication and visibility in dark environments
  • Easy ID paring with Control Box for Ethernet communication
  • Up to 8 keypads connect to a single Control Box for future scalability
  • Unrestricted modes support flexible behavior settings for each button
  • Intuitive web GUI for easy keypad configuration
  • Dual power supply – DC 5V or Power over Ethernet
  • Customized button engraving service


Interfaces
Ethernet• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
Keypad Layout4~8 buttons customizable in 14 keypad layouts
Switches
Controller ID1 x 16-segment Switch
Keypad ID1 x 8-segment Switch
Reset Button1 x Semi-recessed Pushbutton
Power ConsumptionDC5V:1.25W:6BTU
DC48V:1.58W:7BTU
Environmental
Operating Temperature0 – 50°C
Storage Temperature–20 – 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPlastic
Weight0.13 kg ( 0.29 lb )
Dimensions (L x W x H)11.63 x 7.06 x 3.89 cm
(4.58 x 2.78 x 1.53 in.)
Faceplate Dimension (L x W x H)11.92 x 7.42 x 0.92 cm
(4.69 x 2.92 x 0.36 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
