HDMI HDBaseT Receiver (4K@100m) (HDBaseT Class A)
VE812R

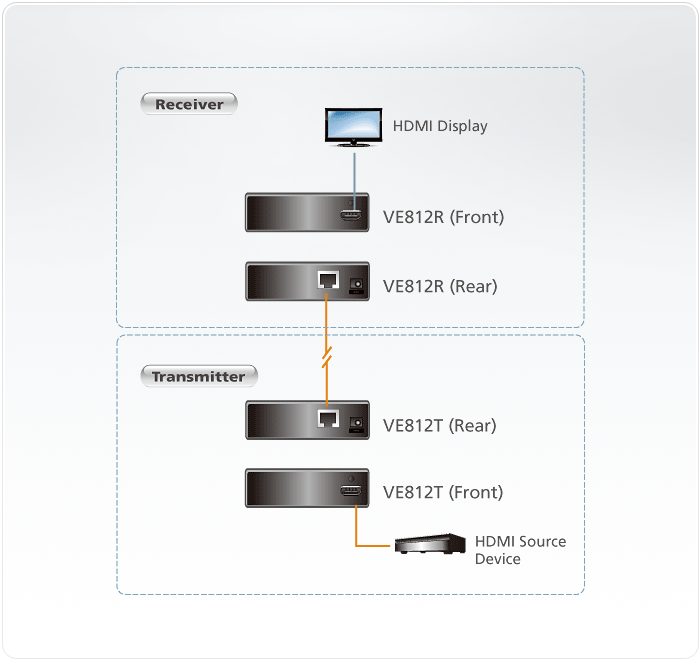

- Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
- HDMI (3D, Deep Color, 4k); HDCP Compatible
- Long distance transmission - up to 100m
- Supports up to 340MHz bandwidth for high performance video






The VE812R HDMI Over Single Cat 5 Receiver supports HDBaseT technology that uses a single Cat 5e cable to extend signals up to 330 ft.The VE812R not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.
The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
Package Contents
- 1x VE812R HDMI Over Single Cat 5 Receiver
- 1x Power Adapter
- 1x Mounting Kit
- 1x User Instructions
- Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
- HDMI (3D, Deep Color, 4k); HDCP Compatible
- Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Long distance transmission - up to 330 ft.
- Selects the optimum EDID settings for smooth power-up and highest quality display
- Supports up to 340MHz bandwidth for high performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

HDMI over Single Cat 5 Receiver
Video Output | |
Interfaces | 1 x HDMI Type A Female (Black) |
Impedance | 100 Ώ |
Video | |
Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
Max. Pixel Clock | Up to 340 MHz |
Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) |
Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Audio | |
Output | 1 x HDMI Type A Female (Black) |
Connectors | |
Power | 1 x DC Jack |
Power Consumption | DC5.3V:5.06W:24BTU |
Environmental | |
Operating Temperature | 0 - 50°C |
Storage Temperature | -20 - 60°C |
Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | 0.41 kg ( 0.9 lb ) |
Dimensions (L x W x H) | 14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.) |
Carton Lot | 5 pcs |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
