9 x 2 4K Presentation Matrix Switch
VP1920

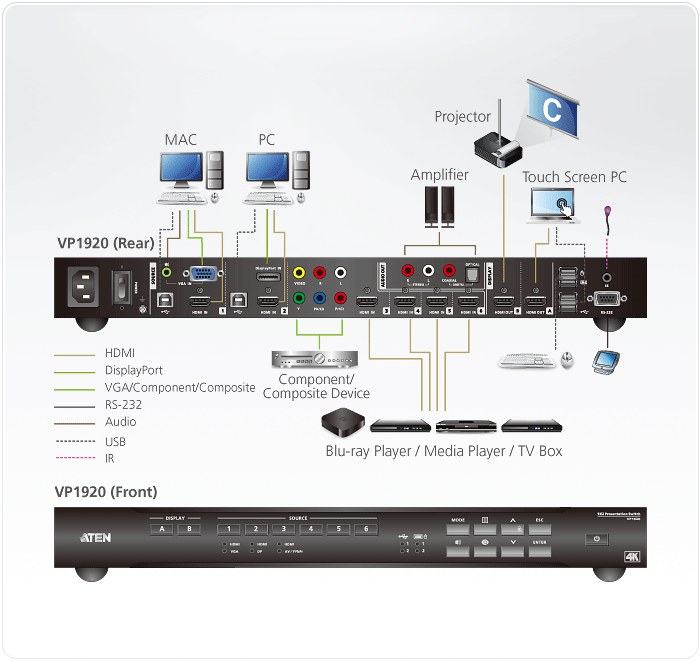

- Multi-format AV Fast Switching – fast switching among 6 HDMI and 3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/Component/Composite) to 2 HDMI outputs and support of Coaxial, Toslink, Stereo audio outputs enable flexible interface/format conversion
- USB Control Routing for PCs and Touch Panels – allow keyboard/mouse and touch panel
controls over the remote computers, with the control focus for keyboard/mouse and USB peripherals can be individually switched to a designated computer source - Selectable Matrix, Mirror and PIP modes to meet the needs of various events or presentation styles
- Source preview – quickly identifies and switches to the target content
MSRP:
Quote Upon Request
The ATEN VP1920 is a 3-in-1 presentation switch that integrates a video matrix switch, an audio processor,
With streamlined control from front panel pushbuttons, IR remote controller, OSD, and RS-232, the VP1920 reduces not only system device count, but also lower operation complexity. It is suitable for all small-to-medium sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition centers or hotels.
Package Contents
- 1x VP1920 9 x 2 4K Presentation Matrix Switch
- 1x Power Cord
- 1x IR Receiver
- 1x IR Remote Control
- 1x User Instructions
- Multi-format AV Switching with Simplicity
- Supports multi-format 9 Inputs and 2 HDMI outputs:
• 3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/AV/YPbPr)
• 3 HDMI inputs
• 2 HDMI outputs - VGA port supports universal analog input formats (RGBHV/
RGBs /YCbCr/YPbPr) - Embed/De-embed Audio–HDMI/DisplayPort audio signals can be extracted to digital/analog audio signals;
stereo / composite /component audio can be embeddedto digital audio signals
- Supports multi-format 9 Inputs and 2 HDMI outputs:
- High-definition Video with Optimum Output
- Superior video quality up to 4096 x 2160@60Hz (4:2:0) / 4096 x 2160@30Hz (4:4:4) (HDMI/DP)
- EDID Expert™ - automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
- HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
- Versatile, Streamlined Operation
- Multiple control methods via front-panel pushbuttons, RS-232, OSD, and IR remote
- Source preview – quickly identifies and switches to the target content
- Selectable display modes (Matrix, Mirror, or PiP) for different presentation demands
- Auto switching – automatically detects and switches to a new source as soon as it is connected for time-saving and convenience
- Supports stand-by mode for power saving and fast waking up
- Extended Flexibility for USB Peripherals
- USB ports enable keyboard/mouse or touch panel control over the connected computers
- Control focus for keyboard/mouse and USB peripherals can be individually switched to a designated computer source
Video Input | |
Interfaces | 6 x HDMI Type A female (Black) 1 x DP Female (Black) 1 x HDB-15 Female (Blue) 1 x Component (3x RCA female, Blue/Green/Red) 1 x Composite (1x RCA female, Yellow) |
Video Output | |
Interfaces | 2 x HDMI Type A female (Black) |
Max. Distance | Up to 15m |
Video | |
Max. Resolution | HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) DP: Up to 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) VGA/Analog: Up to 1920x1200@60Hz |
Compliance | HDMI (3D, Deep Color, 4K) HDMI/DP: HDCP 1.4 Compatible; Consumer Electronics Control (CEC) |
Audio | |
Input | Stereo Audio: 1 x mini stereo Jack female (Green) Composite/Component Audio: 2 x RCA female (Red/White) |
Output | Optical Audio: 1 x Toslink (Black) Coaxial Audio: 1 x RCA female (Orange) Stereo Audio: 2 x RCA female (White / Red) |
Connectors | |
Computers | 2 x USB Type B Female (White) |
Console Ports | Keyboard/Mouse: 2 x USB Type A Female (White) Device: 2 x USB Type A Female (White) |
Power | 1 x 3-prong AC Socket |
Control | |
RS-232 | 1 x DB 9 female (Black) |
IR | 1 x Mini Stereo Jack Female (Black) |
Switches | |
Power | 1 x Pushbutton 1 x Rocker |
Video Input Port Selection | 6 x Pushbutton |
Video Output Port Selection | 2 x Pushbutton |
Selection | Mode: 1 x Pushbutton Menu: 1 x Pushbutton Up (Unlock): 1 x Pushbutton Esc: 1 x Pushbutton Audio: 1 x Pushbutton Preview: 1 x Pushbutton Down: 1 x Pushbutton Enter: 1 x Pushbutton |
LEDs | |
Video | Source 1: HDMI/VGA: 2(Green) Source 2: HDMI/DP: 2(Green) Source 3: HDMI/AV/YPbPr: 2(Green) |
USB Link | Keyboard/Mouse: 2 (Amber) Device: 2 (Amber) |
EDID Settings | EDID Mode: Default / Display A/ Remix |
Power | |
Maximum Input Power Rating | 100-240 VAC; 50-60Hz; 1.0A |
Power Consumption | AC110V:7.3W:60BTU/h AC220V:7.3W:60BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental | |
Operating Temperature | 0-40°C |
Storage Temperature | -20 - 60°C |
Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | 2.36 kg ( 5.2 lb ) |
Dimensions (L x W x H) | 43.72 x 16.36 x 4.40 cm (17.21 x 6.44 x 1.73 in.) |
Carton Lot | 1 pc |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
User Manual
File Name | Release Date |
vp1920-user-manual-w.pdf (2.21 MB) | 2024-04-22 |
Quick Start Guide
vp1920-9×2-4K-Presentation-Matrix-Switch-qsg.pdf (1.27 MB)CAD Drawing
VP1920-ASM-V01_WEB.pdf (67.61 KB)Firmware
Description | Ver. | Release Date | File Name |
Firmware Upgrade | v1.2.115 | 2024-05-02 | vp1920-v1.2.115.zip |
Firmware Upgrade | v1.2.114 | 2022-11-18 | vp1920_v1.2.114.zip |
Firmware Upgrade | v1.2.113 | 2022-07-21 | vp1920_v1.2.113.zip |
Firmware Upgrade | v1.2.112 | 2022-05-19 | vp1920_v1.2.112.zip |
Firmware Upgrade | v1.1.106 | 2020-12-21 | vp1920_v1.1.106.zip |
Firmware Upgrade | v1.1.105 | 2019-04-24 | vp1920_v1.1.105.zip |
Firmware Upgrade | v1.1.101 | 2018-12-04 | vp1920_v1.1.101.zip |
Firmware Upgrade | v1.0.071 | 2018-11-02 | vp1920_v1.0.071.zip |
