9 x 2 4K Presentation Matrix Switch

  • Multi-format AV Fast Switching – fast switching among 6 HDMI and 3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/Component/Composite) to 2 HDMI outputs and support of Coaxial, Toslink, Stereo audio outputs enable flexible interface/format conversion
  • USB Control Routing for PCs and Touch Panels – allow keyboard/mouse and touch panel controls over the remote computers, with the control focus for keyboard/mouse and USB peripherals can be individually switched to a designated computer source
  • Selectable Matrix, Mirror and PIP modes to meet the needs of various events or presentation styles
  • Source preview – quickly identifies and switches to the target content

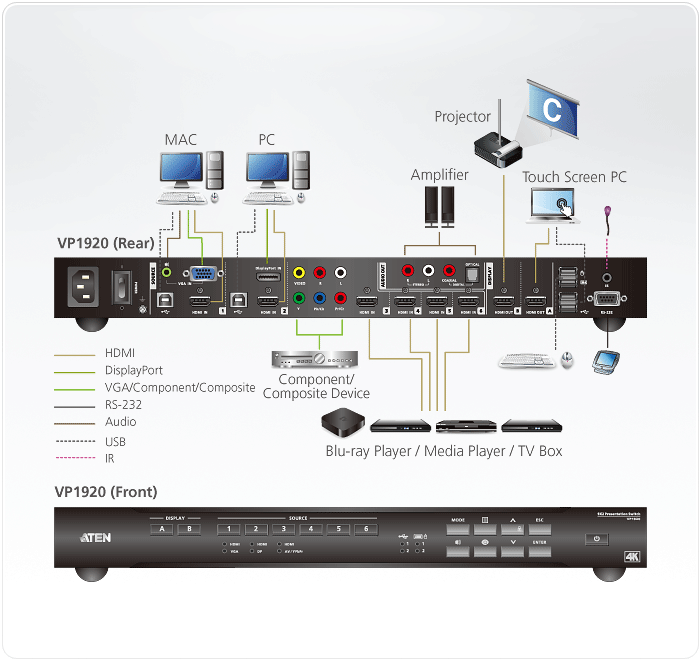

The ATEN VP1920 is a 3-in-1 presentation switch that integrates a video matrix switch, an audio processor and an analogue-to-digital converter functions. With nine multi-format inputs to two HDMI 4K outputs, it is designed to boost the efficiency and impact of professional presentations.

With streamlined control from front panel pushbuttons, IR remote controller, OSD, and RS-232, the VP1920 reduces not only system device count, but also lower operation complexity. It is suitable for all small-to-medium sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition centres or hotels.


For a limited time only, we are offering you the opportunity to try a video presentation switch for 2 weeks! >> How to apply

Package Contents

  • 1x VP1920 9 x 2 4K Presentation Matrix Switch
  • 1x Power Cord
  • 1x IR Receiver
  • 1x IR Remote Control
  • 1x User Instructions
  • Multi-format AV Switching with Simplicity
    • Supports multi-format 9 Inputs and 2 HDMI outputs:
      •  3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/AV/YPbPr)
      •  3 HDMI inputs
      •  2 HDMI outputs
    • VGA port supports universal analog input formats (RGBHV/RGBs/YCbCr/YPbPr)
    • Embed/De-embed Audio–HDMI/DisplayPort audio signals can be extracted to digital/analog audio signals; stereo / composite/component audio can be embedded to digital audio signals

  • High-definition Video with Optimum Output
    • Superior video quality up to 4096 x 2160@60Hz (4:2:0) / 4096 x 2160@30Hz (4:4:4) (HDMI/DP)
    • EDID Expert™ - automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
    • HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant

  • Versatile, Streamlined Operation
    • Multiple control methods via front-panel pushbuttons, RS-232, OSD, and IR remote
    • Source preview – quickly identifies and switches to the target content
    • Selectable display modes (Matrix, Mirror, or PiP) for different presentation demands
    • Auto switching – automatically detects and switches to a new source as soon as it is connected for time-saving and convenience
    • Supports stand-by mode for power saving and fast waking up

  • Extended Flexibility for USB Peripherals
    • USB ports enable keyboard/mouse or touch panel control over the connected computers
    • Control focus for keyboard/mouse and USB peripherals can be individually switched to a designated computer source
Video Input
Interfaces6 x HDMI Type A female (Black)
1 x DP Female (Black)
1 x HDB-15 Female (Blue)
1 x Component (3x RCA female, Blue/Green/Red)
1 x Composite (1x RCA female, Yellow)
Video Output
Interfaces2 x HDMI Type A female (Black)
Max. DistanceUp to 15m
Max. ResolutionHDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
DP: Up to 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
VGA/Analog: Up to 1920x1200@60Hz
ComplianceHDMI (3D, Deep Color, 4K)
HDMI/DP: HDCP 1.4 Compatible; Consumer Electronics Control (CEC)
InputStereo Audio: 1 x mini stereo Jack female (Green)
Composite/Component Audio: 2 x RCA female (Red/White)
OutputOptical Audio: 1 x Toslink (Black)
Coaxial Audio: 1 x RCA female (Orange)
Stereo Audio: 2 x RCA female (White / Red)
Computers2 x USB Type B Female (White)
Console PortsKeyboard/Mouse: 2 x USB Type A Female (White)
Device: 2 x USB Type A Female (White)
Power1 x 3-prong AC Socket
RS-2321 x DB 9 female (Black)
IR1 x Mini Stereo Jack Female (Black)
Power1 x Pushbutton
1 x Rocker
Video Input Port Selection6 x Pushbutton
Video Output Port Selection2 x Pushbutton
SelectionMode: 1 x Pushbutton
Menu: 1 x Pushbutton
Up (Unlock): 1 x Pushbutton
Esc: 1 x Pushbutton
Audio: 1 x Pushbutton
Preview: 1 x Pushbutton
Down: 1 x Pushbutton
Enter: 1 x Pushbutton
VideoSource 1: HDMI/VGA: 2(Green)
Source 2: HDMI/DP: 2(Green)
Source 3: HDMI/AV/YPbPr: 2(Green)
USB LinkKeyboard/Mouse: 2 (Amber)
Device: 2 (Amber)
EDID SettingsEDID Mode: Default / Display A/ Remix
Maximum Input Power Rating100-240 VAC; 50-60Hz; 1.0A
Power ConsumptionAC110V:7.3W:60BTU/h

● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Operating Temperature0-40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
Weight2.36 kg ( 5.2 lb )
Dimensions (L x W x H)43.72 x 16.36 x 4.40 cm
(17.21 x 6.44 x 1.73 in.)
Carton Lot1 pc
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Desc.Ver.Release DateFile Name
Firmware Upgradev1.2.1152024-05-02 vp1920-v1.2.115.zip
Firmware Upgradev1.2.1142022-11-18 vp1920_v1.2.114.zip
Firmware Upgradev1.2.1132022-07-21 vp1920_v1.2.113.zip
Firmware Upgradev1.2.1122022-05-19 vp1920_v1.2.112.zip
Firmware Upgradev1.1.1062020-12-21 vp1920_v1.1.106.zip
Firmware Upgradev1.1.1052019-04-24 vp1920_v1.1.105.zip
Firmware Upgradev1.1.1012018-12-04 vp1920_v1.1.101.zip
Firmware Upgradev1.0.0712018-11-02 vp1920_v1.0.071.zip
