Opera del Duomo museum

The Opera Primaziale Pisana has undergone a complete renovation since 2015. Last year they approached ATEN to control their video systems within the conference hall in the new Opera del Duomo museum. Requirements were a fully automated system and the connection to a WAN network.

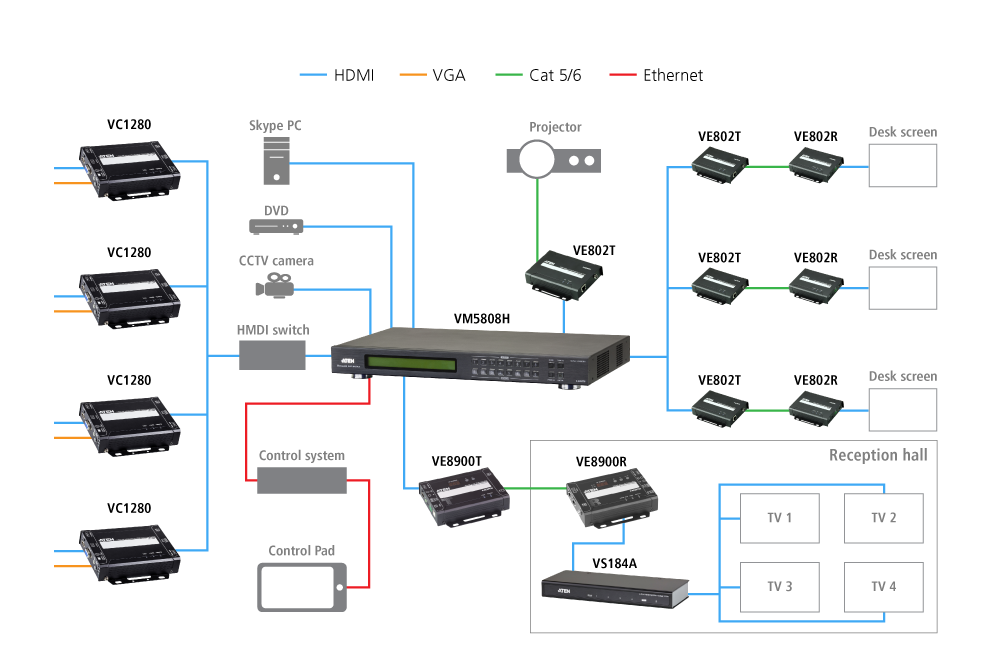

Additionally, in the front of the room there was a table from which four people should be able to connect different HDMI and VGA appliances. The video signal had to be extend from there to different screens and projectors, some of which were located in a separate room.

"Ask the customer for a quote about ATEN, or a quote about this project."

Name of the person giving the quote

How does it work?

Easy operating system

Easy system to operate for differtent lectures.

Multiple interfaces

Ability to distribute multiple inputs to multiple outputs.

Multiple displays

Support a wide range of displays from different manufacturers.

Multiple resolutions

Support 4K resolutions in case of future installation upgrades.

Products used for this project

VC1280

2-Port 4K HDMI/VGA to HDMI Converter Switch

VE8900R

HDMI over IP Receiver (1080p@100m)

VE8900T

HDMI over IP Transmitter (1080p@100m)

VE802

HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)

VS184A

4-Port 4K HDMI Splitter

VM5808H

8 x 8 HDMI Matrix Switch with Videowall & Scaler
