8-Port PS/2-USB VGA LCD KVM Switch


CL1308
  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 19" LED-backlit LCD panel
  • A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.
  • USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
ROHS
Weee
MSRP: Quote Upon Request

With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.

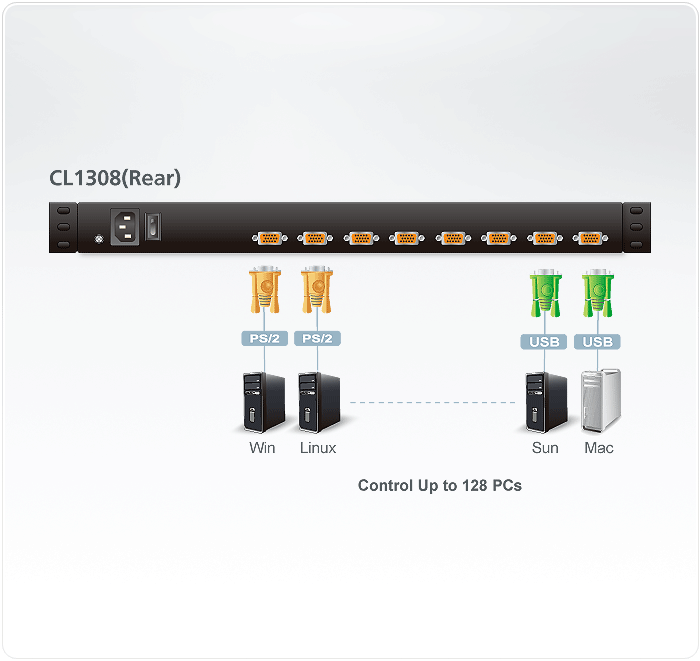

The CL1308 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.

Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.

Package Contents

  • 1x CL1308 LCD KVM Switch with Rack Mount Kit
  • 2x 2L-5202U Custom KVM Cable Cable (1.8m)
  • 1x LIN5-04A2-J11G Firmware Upgrade Cable
  • 1x LIN2-418K-E12G Power Cord
  • 1x User Instructions
  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.
  • Integrated KVM console with 19" LED-backlit LCD panel
  • Dual Interface – supports computers with PS/2 or USB keyboards and mice
  • Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Supports USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
  • Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
  • Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
  • Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
  • Auto Scan feature for monitoring user-selected computers
  • Broadcast mode – operations simultaneously performed on all selected computers
  • Hot pluggable – add or remove computers without having to power down the switch
  • Buzzer on/off via hotkey and OSD
  • Rack mountable
  • Keyboard language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

    More information about "Easy Rack Mounting"...

19” LCD KVM Switch


FunctionCL1308N
Computer Connections
Direct8
Maximum128 (via Cascade)
Port SelectionOSD, Hotkey, Pushbutton
Connectors
KVM Ports8 x SPHD Female (Yellow)
Firmware Upgrade1 x RJ-11 Female
Power1 x IEC 60320/C14
Switches
Port Selection8 x Pushbutton
Reset1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch
Power1 x Rocker Switch
LCD Control4 x Pushbutton
LCD Power1 x LED Pushbutton
LEDs
Online8 (Orange)
Selected8 (Green)
Power1 (Dark Green)
1 (Orange)
Lock1 (Green)
LED Illumination Light1 x LED Illumination Light
Panel Spec
LCD Module19" TFT-LCD
Resolution1280 ×1024 @ 75 Hz
Response time5 ms
Viewing Angle170° (H), 160° (V)
Pixel Pitch0.294 mm x 0.294 mm
Support Color16.77M colors
Contrast Ratio1000:1
Luminance250 cd/m²
Video
Input Video Resolutionup to 1920 × 1200 @ 60 Hz;
1280 × 1024 @ 75 Hz, DDC2B
Scan Interval1-255 seconds
Emulation
Keyboard / MousePS/2, USB
Maximum Input Power Rating100-240 V AC; 50-60 Hz; 1A
Power ConsumptionAC110V:24.4W:114BTU
AC220V:24.7W:116BTU
Environmental
Operating Temperature0-50°C
Storage Temperature-20-60°C
Humidity0 - 80% RH, Non-condensing
Physical Properties
HousingMetal + Plastic
Rail TypeSingle Rail
Weight12.59 kg ( 27.73 lb )
Dimensions (L x W x H)48.30 x 68.92 x 4.40 cm
(19.02 x 27.13 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
