ATEN Control System - 12-button Keypad (EU, 2 Gang)


VK112EU
MSRP: Quote Upon Request
  • Keypad - provides physical connection to the ATEN Control System
  • Fully customizable with 125 layout combinations of 6 to 12 buttons; customized button engraving service
  • Easy ID pairing with Control Box for Ethernet communication
  • Available in black or white color

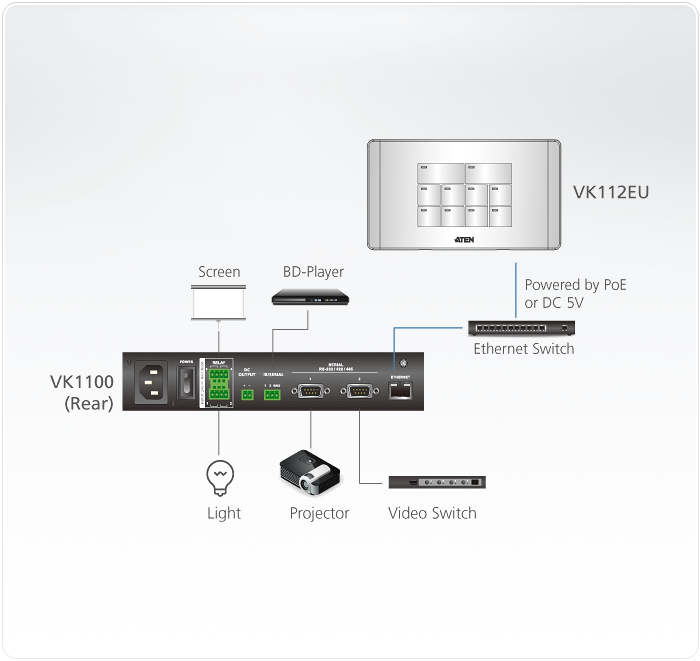

The VK112EU is a fully-customizable 12-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the 2-gang keypad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego’s. By connecting to the VK2200 / VK1200 / VK2100A / VK1100A Control Box or VK0100 / VK0200 Control Pad over a LAN, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the buttons ready to go, you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK112EU is an affordable solution, perfect to serve as the primary interface in meeting rooms, or as secondary device control in classrooms and conference centers.

Note: This model is also available in black color – Part number: VK112EU1, which is a built-to-order product. To place an order, please contact your regional ATEN representative.



Keypad Layout Example


Custom button placement on the keypad can be set in 125 different combinations of 6 to 12 buttons. The example above shows the 12 most commonly used.



VK112EUTTK
VK112EUTTK includes a VK112EU unit and an ergonomically designed keypad tabletop kit compatible with VK112EU black / white editions, further enhancing the ease-of-use. For more information, please contact your regional ATEN representative.



Accessories:
*The power adapter for this product is sold separately. For more information about this accessory, see Accessories.

Package Contents

  • 1x VK112EU 12-Button Keypad (EU, 2 Gang)
  • 1x Button Pack
  • 1x Terminal Block
  • 1x Faceplate
  • 1x User Instructions
  • Keypad - provides physical connection to the ATEN Control System
  • Fully customizable with 125 layout combinations of 6 to 12 buttons
  • Available in black or white color
  • System LED indicators for quick connection status check
  • Dual-color button LEDs for clear indication and visibility in dark environments
  • Easy ID pairing with Control Box for Ethernet communication
  • Up to 8 keypads connect to a single Control Box for future scalability
  • Versatile modes support flexible behavior settings for each button
  • Intuitive web GUI for easy keypad configuration
  • Dual power supplies with Power over Ethernet (PoE) and DC power
  • Customized button engraving service
  • Flexible installation is made easier with the keypad tabletop kit (VK112EUTTK), allowing for device mounting on the table or to the wall
Interfaces
Ethernet• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
Keypad Layout6~12 buttons customizable in 125 keypad layouts
Switches
Controller ID1 x 16-segment Switch
Keypad ID1 x 8-segment Switch
Reset Button1 x Semi-recessed Pushbutton
Power ConsumptionDC5V:1.25W:6BTU
POE:1.56W:7BTU
Environmental
Operating Temperature0 – 50°C
Storage Temperature–20 – 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPlastic
Weight0.17 kg ( 0.37 lb )
Dimensions (L x W x H)8.32 x 14.76 x 4.80 cm
(3.28 x 5.81 x 1.89 in.)
Faceplate Dimensions (L x W x H)8.62 x 15.12 x 0.92 cm
(3.39 x 5.95 x 0.36 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.





Desc.Ver.Release DateFile Name
Firmware Upgradev3.6.3552023-10-26 vk112eu-v3.6.355.zip
Firmware Upgradev3.1.3022021-11-01 vk112eu_v3.1.302.001.zip
Firmware Upgradev3.0.2942021-05-25 vk112eu_v3.0.294.001.zip
Firmware Upgradev2.7.2642020-05-22 vk112eu_v2.7.264.001.zip
Firmware Upgradev2.7.2632020-03-27 vk112eu_v2.7.263.zip
Firmware Upgradev1.0.0682019-11-01 vk112eu_v1.0.068.zip
Firmware Upgradev1.0.0662018-05-03 vk112eu_v1.0.066.zip
Firmware Upgradev1.0.0652018-02-09 vk112Eu_v1.0.065.zip
OSDesc.Ver.Release DateFile Name
ATEN Certified Drivers
Drivers for ATEN Control System
Search for drivers
Firmware Upgrade Tool
Firmware upgrade toolv1.2.1132021-12-21 FirmwareUpgradeTool_Setup_v1.2.113.zip
Firmware upgrade toolv1.1.1062018-01-09 FirmwareUpgradeTool_Setup_v1.1.106.zip
IP Installer & Utility
IP Installerv1.4.1322014-09-23 IPInstaller_v1.4.132.zip
