4 x 2 True 4K Presentation Matrix Switch


VP1420
MSRP: Quote Upon Request
  • Analog/Digital AV Matrix Switching – switch among 3 HDMI and 1 VGA inputs to 2 HDMI outputs and support of audio embedding/de-embedding
  • Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, Contact Closure, and web-based GUI through Ethernet
  • Superior video quality – True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI); HDR support
  • Scaler – supports video upscaling to 4K for display A and downscaling to 1080p for display B
HDMI
HDR
true-4k

ATEN VP1420 is a multi-in-one presentation switch that integrates a video matrix, True 4K scaler, audio processor, and analog-to-digital converter functions into one compact device. With four analog/digital inputs to two HDMI outputs, it is designed to boost the impact of any professional presentation in small- to medium-size meeting rooms.



True 4K, HDR Visual Clarity

Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) with HDR to deliver vivid content in every presentation.

Smooth AV Switching Scaled to Perfection

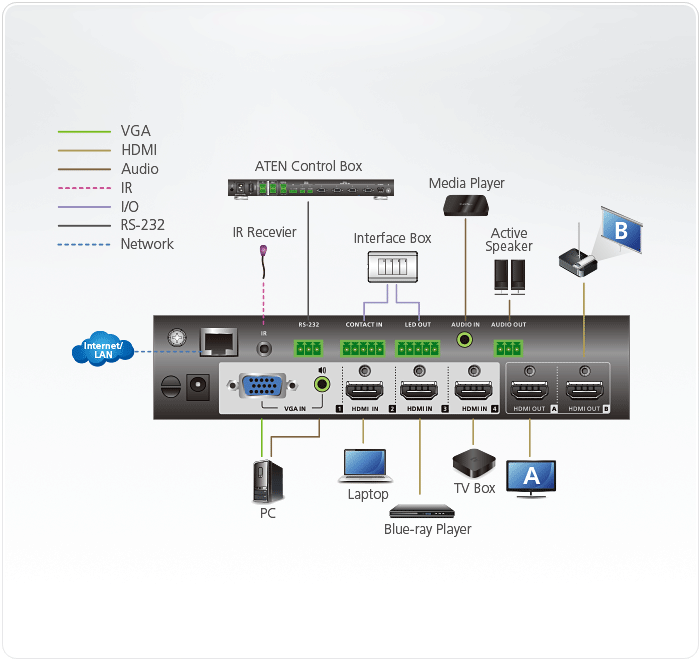

Connect up to 4 sources (3 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.




Flexible Audio Embedding / De-Embedding

Supports stereo audio embedding and HDMI audio de-embedding to different audio outputs to ease adaptation to your preferred audio setup.

Versatile Control, Streamlined Operations

Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.




Package Contents

  • 1x VP1420 4 x 2 True 4K Presentation Matrix Switch
  • 1x IR Receiver
  • 1x IR Remote Control
  • 2x 3-pole Terminal Blocks
  • 2x 5-pole Terminal Blocks
  • 1x Power Adaptor
  • 1x VPK104 4-Key Contact Closure Remote Pad
  • 4x 4-pole Terminal Blocks
  • 1x User Instructions

The ATEN VP1420 is a multi-in-one presentation switch that integrates a video matrix switch, True 4K scaler, audio processor, and analog-to-digital converter functions into one compact device that easily mounts under a table or in a rack. With four analog/digital inputs to two HDMI True 4K outputs, it is designed to boost the efficiency and impact of professional presentations.

With streamlined control from front-panel pushbuttons, IR remote controller, RS-232, and web-based GUI via Ethernet, the VP1420 reduces not only system device count, but also lowers operation complexity. It is suitable for all meeting space and education environments, such as huddle rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition galleries or hotels.



  • Analog/Digital AV Matrix Switching
    • Supports multi-format 4 inputs – 3 HDMI and 1 VGA inputs
    • 2 HDMI outputs
    • Audio embedding – stereo audio can be embedded into HDMI output or separated to stereo line out
    • Audio de-embedding – HDMI audio can be extracted to stereo line out
    • Auto switching – automatically detects and switches to a new source as soon as it is connected



  • High-definition Video with Optimum Output
    • Superior video quality – True 4K resolutions up to 4096 x 2160@60Hz (4:4:4) (HDMI)
    • Supports 4K HDR
    • Scaler – supports video upscaling to 4K for display A and downscaling to 1080p for display B
    • EDID Expert™ – automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
    • HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant



  • Versatile, Streamlined Operation
    • Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
    • View and control via ATEN Video Presentation Control App in a swift and agile way
    • Supports stand-by mode for power saving and fast waking up
    • Consumer Electronics Control (CEC) support
    • Built-in Contact in and LED out for keypad control using VPK104 Contact Closure Remote Pad
Video Input
Interfaces3 x HDMI Type A female (Black)
1 x VGA (HDB-15) Female (Blue)
Max. DistanceHDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m
VGA: 1080p@60Hz at 15m
Video Output
Interfaces2 x HDMI Type A female (Black)
Max. DistanceHDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m
Video
Max. ResolutionHDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
VGA: Up to 1080p@60Hz
ComplianceHDMI (3D, Deep Color, 4K); 4K HDR
HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Audio
InputStereo Audio (VGA): 1 x mini stereo Jack female (Green)
Stereo Audio (HDMI): 1 x mini stereo Jack female (Green)
OutputLine Out (Unbalanced): 1 x Captive Screw Connector, 3-pole
Control
RS-2321 x Captive Screw Connector, 3-pole
IR1 x Mini Stereo Jack Female (Black)
Ethernet1 x RJ-45 Female (Silver)
Contact In1 x Captive Screw Connector, 5-pole
LED Out1 x Captive Screw Connector, 5-pole
LED out power: +5 VDC, 0.2 A
Switches
Power1 x Pushbutton (LED: Green / Orange)
Video Input Port Selection4 x Pushbutton (LED: Green)
Video Output Port Selection2 x Pushbutton (LED: Orange)
SelectionMute: 1 x Pushbutton
Mode / Unlock: 1 x Pushbutton
EDID SettingsEDID Mode: ATEN Default / Display A / Remix
Connectors
Power1 x DC Jack (Black)
Power ConsumptionDC5V:7.21W:38BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight1.09 kg ( 2.4 lb )
Dimensions (L x W x H)20.00 x 16.05 x 4.40 cm
(7.87 x 6.32 x 1.73 in.)
Carton Lot3 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.





Desc.Ver.Release DateFile Name
Firmware Upgradev1.1.1082022-10-05 vp1420_v1.1.108.zip
Firmware Upgradev1.1.1052020-07-31 vp1420_v1.1.105.zip
Firmware Upgradev1.1.1032020-06-02 vp1420_v1.1.103.zip
Firmware Upgradev1.0.0712019-11-28 vp1420_v1.0.071.zip
Firmware Upgradev1.0.0692019-11-08 vp1420_v1.0.069.zip
