7 x 3 Seamless Presentation Matrix Switch with Scaler, Streaming, Audio Mixer, and HDBaseT


VP2730
MSRP: Quote Upon Request
  • Ultra Seamless Switching with Scaler – zero second switching without any latency while scaling for the best output resolution ensures extra smooth presentations
  • Bi-directional Distance-free Streaming – Go live to stream out HD video to up to 5 remote sites or stream in content from a remote site via an intuitive web GUI
  • Built-in Audio Mixer – supports dynamic/condenser microphone input with selectable 48V Phantom Power and allows mic input to be mixed with program audio
  • Multi-view Flexibility – display and switch simultaneously up to six sources on PiP (picture in picture) PbP (picture by picture), quad-view, and more
HDBaseT
HDMI
ROHS
Weee

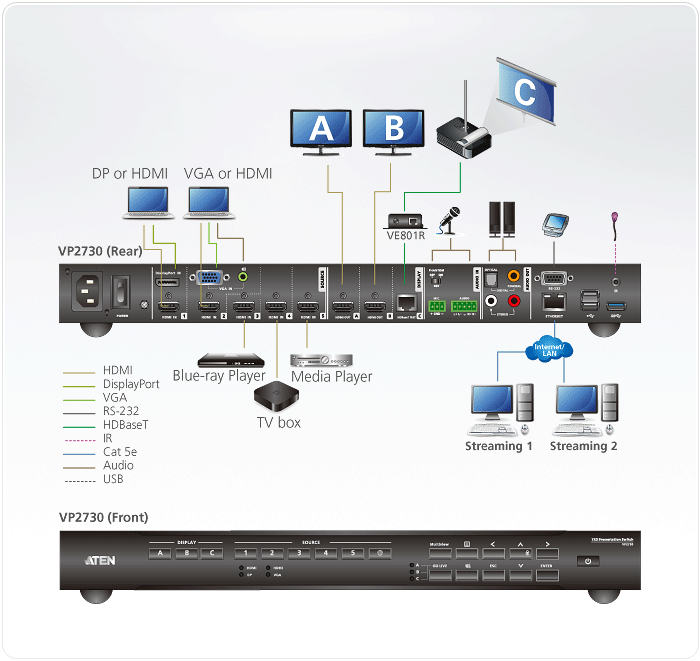

VP2730 is a multi-in-one presentation switch that integrates video matrix switch with scaler, streaming, audio mixer, HDBaseT extender, and analog-to-digital converter functions into one compact device. With seven multi-format inputs to two HDMI and one HDBaseT high-definition outputs, VP2730 empowers larger meetings and facilitates collaboration between local and remote participants in boardrooms, video conferencing rooms, lecture halls or distance learning classrooms.

With the user in mind, VP2730 comes with a straightforward and accessible OSD and Web GUI to streamline operation for both local and remote participants. To facilitate sharing and collaboration with no distance limitations, VP2730 not only allows the meeting moderator to share video content to up to five remote sites, but also enables remote sites or local participants to wirelessly stream in their content for discussion. The moderator can monitor and switch among sources in any variation of full-screen, dual-view, tri-view, quad-view or PIP modes, with up to six sources displayed simultaneously on one screen.

VP2730 also features more advanced meeting management functions: Moderator Mode enables the meeting moderator to control other displays via the host display; Chat Room facilitates meeting communications; while Screen Capture and Freeze record and control the meeting flow. This Collaborative presentation solution facilitates distance-free content sharing along with advanced audio, simplifying AV integration via eliminating the need for numerous individual components and the compatibility challenges that accompany them.

Package Contents

  • 1x VP2730 7 x 3 Presentation Matrix Switch with Streaming, HDBaseT
  • 1x IR Receiver
  • 1x IR Remote Control
  • 1x Power Cord
  • 2x Terminal Blocks
  • 4x Foot Pads
  • 1x User Instructions
  • Seamless Multi-format AV Switching
    • Supports multi-format 7 Inputs:
      •  2 combo inputs (HDMI/VGA, HDMI/DisplayPort)
      •  3 HDMI inputs
    • 2 HDMI and 1 HDBaseT outputs
    • Superior video quality up to 1080p @ 60Hz (HDMI/DisplayPort)
    • Ultra Seamless Switch™ – zero second switching that provides continuous video streams, real-time switching and stable signal transmissions
    • Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions
    • Flexible aspect ratio conversion



  • 1080p Streaming for Distance-free Sharing and Collaboration
    • Go Live – meeting moderator can broadcast HD video streams to up to 5 remote locations
    • Streaming In – remote locations can stream and share content to the meeting moderator at any distance via intuitive web GUI
    • Streaming Queuing – shares the streamed-in content approved by the meeting moderator one at a time to help manage the meeting flow



  • Audio Mixer Integration for Advanced Applications
    • Audio Mixer – allows mixing of the microphone inputs to any external analog or digital audio output device
    • Embed/De-embed Audio – HDMI/DisplayPort audio signals can be extracted to separate digital/analog audio signals; Mic/Line audio can be embedded to HDMI audio
    • Supports multi-format digital/analog audio outputs, including coaxial, TOSLINK and RCA



  • Advanced Conferencing Management Features for Collaboration
    • Multi-view – displays and switches simultaneously in any variation of full-screen, dual-view, tri-view, quad-view or PIP modes, with up to six sources displayed simultaneously on one screen
    • Moderator Mode – enables the meeting moderator control other displays via host display
    • Chat Room – facilitates real-time and precise communication among remote participants
    • Screen Capture – captures anything on your screen with a click
    • Freeze – freezes the screen for discussion or to control the meeting flow



  • Streamlined Operation
    • Multiple Control Options – flexible control via built-in Web UI, Front Panel, OSD, IR Remote Control, and RS-232
    • Auto switching – automatically detects and switches to a new source as soon as it is connected for time-saving and convenience


Video Input
Interfaces5 x HDMI Type A female (Black)
1 x DP Female (Black)
1 x HDB-15 Female (Blue)
Video Output
Interfaces2 x HDMI Type A female (Black)
HDBaseT: 1 x RJ-45 Female (Silver)
Max. DistanceHDMI: Up to 15m
HDBaseT: Up to 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6)
Video
Max. ResolutionHDMI/DP: Up to 1080p@60Hz
VGA/Analog: Up to 1920x1200@60Hz
ComplianceHDMI/DP: HDCP 1.4 Compatible; Consumer Electronics Control (CEC)
Audio
InputStereo Audio: 1 x mini stereo Jack female (Green)
Balance Audio: 1 x Captive Screw Connector, 5-pole
Microphone: 1 x Captive Screw Connector, 3-pole
OutputOptical Audio: 1 x Toslink (Black)
Coaxial Audio: 1 x RCA female (Orange)
Stereo Audio: 2 x RCA female (White / Red)
Connectors
Console PortsUSB 2.0: 2 x USB Type A Female (White)
USB 3.0: 1 x USB Type A Female (Blue)
Power1 x 3-prong AC Socket
Control
RS-2321 x DB 9 female (Black)
IR1 x Mini Stereo Jack Female (Black)
Ethernet1 x RJ-45 Female (Silver)
Switches
Power1 x Pushbutton
1 x Rocker
Video Input Port SelectionVideo In: 5 x Pushbutton
Streaming In: 1 x Pushbutton
Video Output Port Selection3 x Pushbutton
SelectionMultiview: 1 x Pushbutton
Menu: 1 x Pushbutton
Left: 1 x Pushbutton
Up (Unlock): 1 x Pushbutton
Right: 1 x Pushbutton
Go Live: 1 x Pushbutton
Mute: 1 x Pushbutton
Esc: 1 x Pushbutton
Down: 1 x Pushbutton
Enter: 1 x Pushbutton
Phantom power1 x Slide Switch
LEDs
VideoSource 1: HDMI/DP: 2(Green)
Source 2: HDMI/VGA: 2(Green)
Video OutputGo Live: 3 (Amber)
EDID SettingsEDID Mode: ATEN Default / Display A
Power
Maximum Input Power Rating100-240 VAC; 50-60Hz; 1.0A
Power ConsumptionAC110V:28.5W:174BTU
AC220V:27.3W:168BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight3.70 kg ( 8.15 lb )
Dimensions (L x W x H)43.24 x 26.28 x 4.40 cm
(17.02 x 10.35 x 1.73 in.)
Carton Lot1 pc
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.




Desc.Ver.Release DateFile Name
Firmware Upgradev1.1.109 vp2730_v1.1.109.zip
Firmware Upgradev1.1.107 vp2730_v1.1.107.zip
Firmware Upgradev1.0.079 vp2730_v1.0.079.zip
OSDesc.Ver.Release DateFile Name
Drivers for ATEN Control System
Drivers for ATEN Control Systemv1.1.109 ATEN_VP2730_v1.1.109_vkd.zip
