1-Local/Remote Shared Access 16-Port USB HDMI Single Rail WideScreen FHD LCD KVM over IP Switch

New
CL3716i

A 1U single-rail Full HD LCD KVM over IP switch for secure local and remote server control in control rooms and data centers.

  • Compact 1U single-rail design with integrated 18.5" Full HD LCD
  • KVM over IP access for real-time remote management
  • Controls 16 computers from a single console
  • Flexible switching options via pushbuttons, hotkeys, and OSD enabling secure, centralized control
  • All Features

Add to Quote Cart
MSRP:Quote Upon Request
900-HDMI
RC-Icon_99-005-18.5-FHD-Widescreen
RC-Icon_99-006-External-Console
RC-Icon_99-007-HTML5-WebClient
RC-Icon_99-008-LED-Illumination-Light
RC-Icon_99-009-Over-IP-Access
RC-Icon_99-010-Panel-Array-Mode
RC-Icon_99-011-Short-Depth-Design

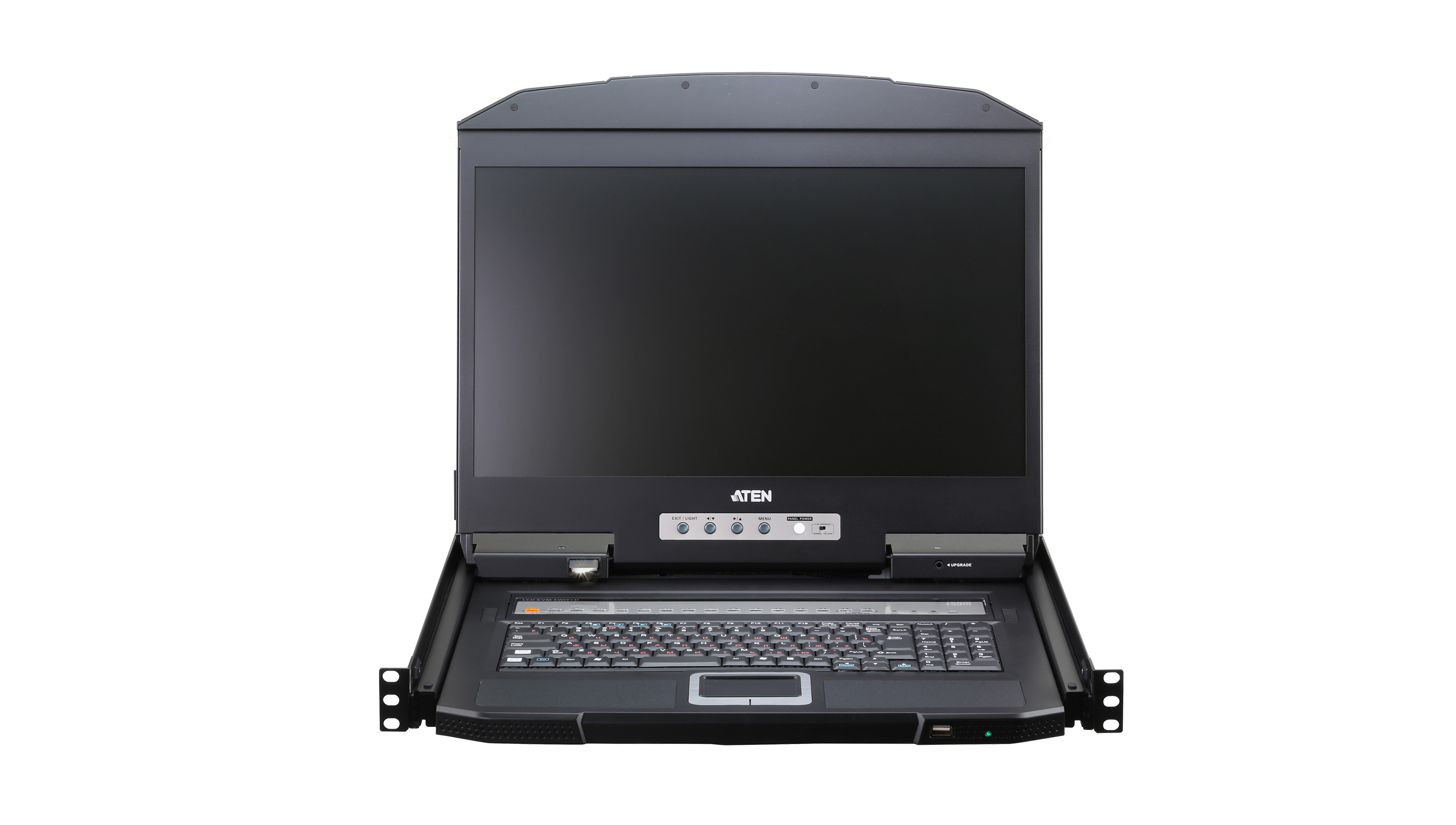

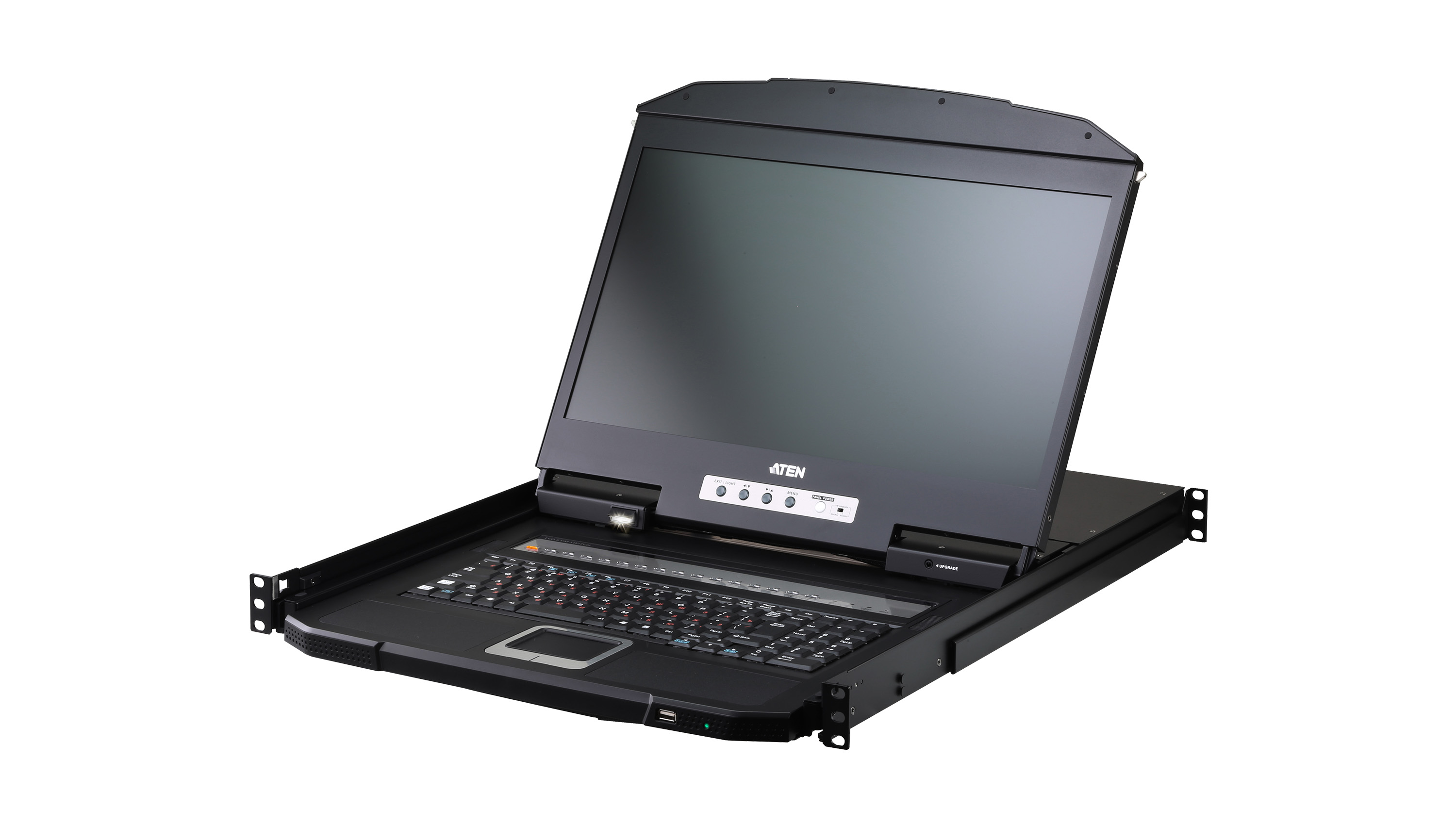

The ATEN CL3716iNW is a space-efficient 1U single-rail LCD KVM console designed for mission-critical environments such as control rooms and data centers. Integrating an 18.5" LED-backlit widescreen monitor, full keyboard, and touchpad into a short-depth sliding housing, it delivers reliable local and over IP access while maximizing valuable rack space.

Maximize Rack Space While Maintaining Full Local Control
Built into a compact 1U single-rail chassis with a short-depth design, the CL3716iNW fits perfectly in shallow racks and space-constrained installations. The all-in-one console design eliminates the need for external peripherals, while an integrated LED illumination light ensures clear visibility for accurate operation in low-light, 24/7 environments.

Centralized and Flexible Control of Multiple Systems
Supporting direct USB and HDMI connections to 16 computers, the CL3716iNW enables efficient centralized management from a single console. An external USB and HDMI console output allows simultaneous local and external access, providing greater operational flexibility for multi-operator or extended workspace scenarios. System control is intuitive via front-panel pushbuttons, hotkeys, or a multilingual on-screen display (OSD). Broadcast Mode enables commands to be sent to multiple computers simultaneously, while Auto Scan Mode provides continuous monitoring of selected systems.

Crystal-Clear Full HD for Precise Monitoring
Engineered for reliable performance, the CL3716iNW delivers crisp Full HD 1920 × 1080 @ 60 Hz video. This ensures clear and accurate visual output, helping operators monitor critical systems with confidence in mission-critical environments.

Simplified, Secure, and Efficient System Management
Three-level password protection safeguards against unauthorized access, a dedicated LAN port supports network-based firmware upgrades, and a front-panel hot-pluggable USB mouse port (HID-only) allows quick peripheral replacement to minimize downtime.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

Package Contents

  • 1 x CL3716iNW 1-Local/Remote Shared Access 16-Port USB HDMI Single Rail WideScreen LCD KVM over IP Switch with Standard Rack Mount Kit
  • 2 x KVM cable sets
  • 1 x power cord
  • 1 x user instructions
  • Space Utility Optimization
  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to enhance usability in dimly lit settings
  • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Short-depth design allows users to work with your rack-mounting equipment in narrow spaces
  • Console lock – enables the console drawer to remain securely locked away in position when not in use



  • Reliability and Operational Versatility
  • Superior video quality – up to 1920 x 1080 @ 60 Hz
  • External console port – enables management of connected computers from an external console (monitor, USB keyboard, and USB mouse)
  • Computer selection via pushbuttons, hotkeys, and multilingual on-screen display (OSD)
  • IP-based LCD KVM switch enabling shared local console access and remote access, allowing monitoring and control of multiple computers via a standard web browser over the network
  • Broadcast mode – allows users to send commands from the console to all computers to perform operations simultaneously
  • Three-level password security – only authorized users can view and control computers
  • Auto Scan mode – enables continuous monitoring of user-selected computers
  • Keyboard Language supports: English (UK), English (US), German (GER.), German (SWISS.), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Turkish and Traditional Chinese
  • Additional hot-pluggable USB mouse port on front panel that supports HID device for keyboard and mouse



  • Installation Flexibility
  • Standard rack mount kit included
  • Optional rack mount kits available including easy installation options*
  • No software required
  • Firmware upgradable via LAN port
  • Supports hot-plugging

    Note: Contact your ATEN dealer for product information.

    More information about "Easy Rack Mounting"...
FunctionCL3716iNW
Computer Connections
Direct16
Maximum16
Port SelectionOSD, Hotkey, Pushbutton
Connectors
KVM Ports16 x HDMI Female
16 x USB Type B Female
Power1 x IEC 60320/C14
External Mouse Port1 x USB Type A Female (Front)
External Console Ports1 x HDMI Female
2 x USB Type A Female
LAN Ports1 x RJ-45 Female
Switches
Port Selection16 x Pushbutton
Reset1 x Semi-recessed Pushbutton
Power1 x Rocker Switch
LCD Control4 x Pushbutton
LCD Power1 x LED Pushbutton
LEDs
Online16 (Orange)
Selected16 (Green)
Power1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light1 x LED Illumination Light
Panel Spec
LCD Module18.5" TFT-LCD
Resolution1920 x 1080 @ 60 Hz
Response time20 ms
Viewing Angle178° (H), 178° (V)
Pixel Pitch0.213 mm x 0.213 mm
Support Color16.77M colors
Contrast Ratio1000 : 1
Luminance350 cd/m²
Video
Remote1920 x 1200 @60 Hz
Input Video Resolutionup to 1920 × 1200 @ 60 Hz
Second console1920 x 1200 @ 60 Hz
Scan Interval1-255 seconds
Emulation
Keyboard / MouseUSB
Maximum Input Power Rating100–240 VAC, 50/60 Hz, 1 A
Power ConsumptionAC110V:42.1W:204BTU/h
AC220V:41.7W:202BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-40°C
Storage Temperature-20-60°C
Humidity0 - 80% RH, Non-condensing
Physical Properties
HousingMetal + Plastic
Rail TypeSingle Rail
Weight10.96 kg ( 24.14 lb )
Dimensions (L x W x H)48.06 x 63.10 x 4.28 cm
(18.92 x 24.84 x 1.69 in.)
Body Dimensions(L x W x H)44.92 x 58.4 x 4.28 cm
(17.69 x 22.99 x 1.69 in.)
NoteBody Dimensions exclude I/O ports, handles, and mounting brackets.
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

CL3708iNW-CL3716iNW-1-Local-Remote-Shared-Access 8-16-Port-USB-HDMI-Single-Rail-FHD-WideScreen-LCD-KVM-Datasheet-en.pdf (1.1 MB)
DescriptionVer.Release DateFile Name
Firmware Upgradev1.0.0622026-01-14 CL37xxiNW-v1.0.062.zip
