HDMI HDBaseT Receiver with Audio De-Embedding (4K@100m) (HDBaseT Class A)

New
VE2812R
  • Superior video quality : 4K HDMI up to 100 m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable and up to 1080p via a single Cat 5e/6 cable in HDBaseT Long Reach Mode
  • Features HDMI audio de-embedding, capable of extracting audio signals to Coaxial or Stereo output separately
  • HDMI 1.4 (3D, Deep color, 4K); HDCP 2.2 compliant
  • Supports manual Audio EDID Switching : AUTO, 2ch and 5.1ch
4K
HDBaseT
HDMI
ROHS
Weee

The VE2812R is a high-quality HDMI HDBaseT Receiver featuring audio de-embedding function. Powered by HDBaseT™ technology, the VE2812R can receive 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.With HDBaseT Long Reach Mode enabled, it can deliver HDMI signals up to a maximum range of 150 meters @ 1080p.

The VE2812R’s audio de-embedding function extracts the audio signal from the HDMI and converts it into Coaxial S/PDIF or Stereo Audio signal and delivers to an audio system that is separated from the display. Compatible with HDMI 1.4 (3D, Deep Color, 4k) and HDCP 2.2, the VE2812R ensures reliable transmission of high-quality uncompressed HDMI signals.

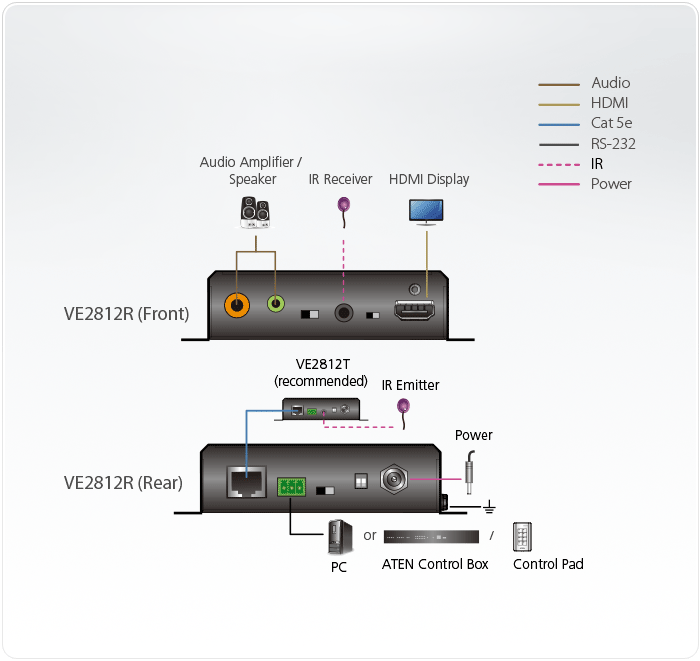

The VE2812R is recommended to be deployed in paired with the VE2812T. The VE2812R can carry on IR/RS-232 from the VE2812T, allowing users to remotely control the VE2812T unit through RS-232 command mode via input port switching. The solution is deal for a variety of settings, such as meeting rooms, digital educational environment or wherever high video quality is required.

Package Contents

  • 1x VE2812R HDMI HDBaseT Receiver with Audio De-Embedding
  • 1x RS-232 Terminal Block
  • 4x Foot Pads
  • 1x Power Adapter
  • 1x User Instructions
  • Superior video quality
    • 4K HDMI up to 100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
    • 1080p up to 150 m via a single Cat 5e/6 cable in HDBaseT Long Reach Mode
  • HDMI 1.4 (3D, Deep Color, 4K); HDCP 2.2 compliant
  • Supports Audio EDID Switching (2ch Stereo, 5.1ch Surround sound, and AUTO)
  • Supports Audio De-Embedding – extracts audio stream from an HDMI source and delivers as a separate audio from HDMI, Coaxial S/PDIF, or Stereo audio output
  • Features RS-232 Serial Communication Switch – Command mode and Bypass mode to meet application requirements
  • Supports bi-directional IR signal transmission - two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
  • Firmware upgradable
  • Built- in 8KV / 15 KV ESD protection
  • Plug-and-play
  • Rack-mountable using the VE-RMK1U


Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ώ
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolution*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Resolutions / DistanceUp to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
Audio
Output1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
1 x SPDIF Coaxial Female (Orange)
Connectors
Unit To Unit1 x RJ-45 Female
Power1 x DC Jack (Black) with locking
Control
RS-232Connector: 1 x Terminal Block, 3 pole; Type: DTE
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR1 x Mini Stereo Jack Female (Black)
Power ConsumptionDC5V:4.98W:43BTU
Switches
HDMI Mute1 x Slide Switch - HDMI Audio ON/OFF
Audio EDID Selection1 x Slide Switch - Audio Output Format Selection: 2ch / 5.1ch / AUTO
Mode Selection1 x Slide Switch - RS-232 Bypass or Command mode Selection
Long Reach Mode Switch1 x Slide Switch - Long Reach mode ON/OFF
Firmware Upgrade1 x Slide Switch - Firmware Upgrade mode ON/OFF
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.46 kg ( 1.01 lb )
Dimensions (L x W x H) with bracket14.53 x 12.30 x 3.00 cm
(5.72 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
