2-Port VGA Splitter (350MHz)


VS92A
  • One video input to 2 video outputs
  • Superior video quality - 1920 x 1440@60Hz
  • Supports 350 MHz bandwidth
  • Cascadable to 3 levels - provides up to 8 video signals
MSRP: Quote Upon Request

Add to Quote Cart

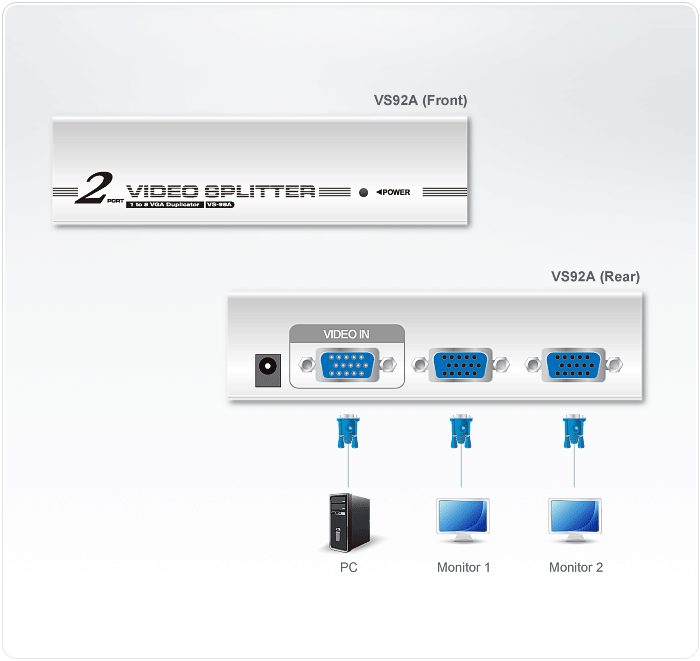

The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to 2 outputs, but also boosts the video signal over a distance of up to 30 m. It is cascadable to support up to 8 displays while offering bandwidth up to 350 MHz. The VS92A is ideal for broadcasting and enhancing video information to the public, monitoring the work environments from safe locations, or offering superior video for company or classroom training.

The splitter also comes available in VS92A-MA version, which contains a VGA cable and rack mounting kit with screws in the package for secure rack installation.

Package Contents

  • 1x 2-Port Video Splitter
  • 1x Power Adapter
  • 1x Rack Mounting Kit with Screws (VS92A-MA only)
  • 1x 1.8M VGA cable (VS92A-MA only)
  • 1x User Guide
  • Splits one video input to 2 video outputs
  • Cascadable to 3 levels – provides up to 8 video signals
  • Supports 350 MHz bandwidth
  • Long-distance transmission - up to 30 m *
  • Superior video quality – 1920 x 1440 @ 60 Hz
  • DDC, DDC2, DDC2B compatible (Port 1 only)
  • Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
  • All-metal casing
  • VS92A-MA version includes a VGA cable and rack mounting kit with screws for secure rack installation

    * Video content sent over very long distances using a VGA cable might result in slight degradation of the video signal and quality
Video Input
Interfaces1 x HDB-15 Male (Blue)
Impedance75 Ω
Max. Distance1.8 m
Video Output
Interfaces2 x HDB-15 Female (Blue)
Impedance75 Ω
Video
Max. Bandwidth350 MHz
Max. ResolutionUp to 1920 x 1440
Max. DistanceUp to 30 m
Connectors
Power1 x DC Jack
Power ConsumptionDC9V:1.15W:5BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0-50°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.42 kg ( 0.93 lb )
Dimensions (L x W x H)13.00 x 7.51 x 4.40 cm
(5.12 x 2.96 x 1.73 in.)
Carton Lot20 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Success stories

MDS & Video Matrix, Computer Room

Datasheet

vs92a-92a-ma-video-splitter-datasheet-en.pdf (298.13 KB) vs92a_94a_98a_video_splitter_ss_en.pdf (589.63 KB)
