HDMI HDBaseT-Lite Receiver with POH (4K@40m) (HDBaseT Class B)
VE802R
- HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
- POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel – IR transmission is processed one direction at a time

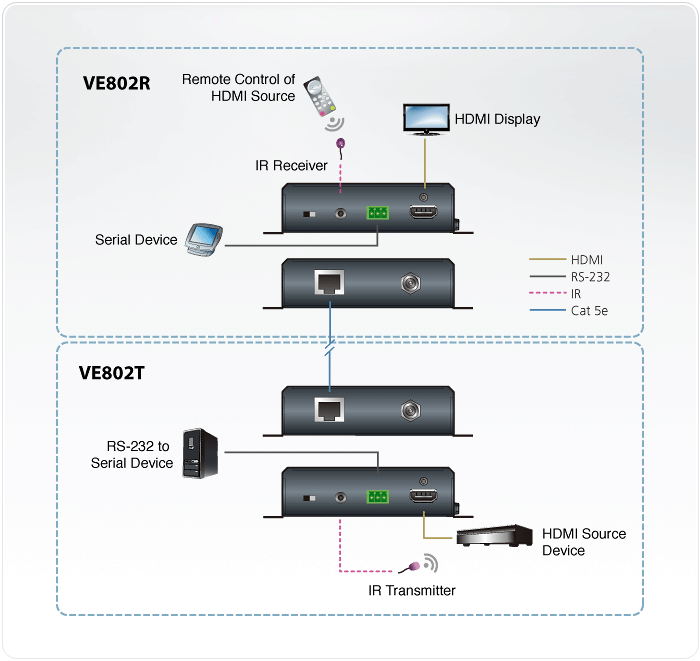

The VE802R HDMI HDBaseT-Lite Receiver connects with HDBaseT transmitters* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment center or any installation that requires superior video quality.
* Compatible HDBaseT Transmitter Units: VE802T
Package Contents
- 1x VE802R HDMI HDBaseT-Lite Receiver with POH
- 1x 0AD6-1F05-26EG Power Adapter
- 1x 2XRT-0003G IR Receiver
- 1x JCTN-3401-103G Terminal Block
- 1x User Instructions
- HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Rack- Mountable

HDMI HDBaseT-Lite Receiver
(HDBaseT Class B)
Video Input | |
Interfaces | 1 x HDMI Type A Female (Black) |
Impedance | 100Ώ |
Max. Distance | 1.8 m |
Video Output | |
Interfaces | 1 x HDMI Type A Female (Black) |
Impedance | 100Ώ |
Video | |
Max. Data Rate | 10.2Gbps (3.4Gbps per lane) |
Max. Pixel Clock | 340 MHz |
Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) |
Max. Resolutions / Distance | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Audio | |
Input | 1 x HDMI Type A Female (Black) |
Output | 1 x HDMI Type A Female (Black) |
Control | |
RS-232 | Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control |
IR | 1 x Mini Stereo Jack Female (Black) |
Connectors | |
Power | 1 x DC Jack (Black) with locking |
Unit To Unit | 1 x RJ-45 Female |
Power Consumption | DV5V:4.37W:20BTU |
Environmental | |
Operating Temperature | 0 - 50°C |
Storage Temperature | -20 - 60°C |
Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | 0.46 kg ( 1.01 lb ) |
Dimensions (L x W x H) with bracket | 14.04 x 12.30 x 3.00 cm (5.53 x 4.84 x 1.18 in.) |
Dimensions (L x W x H) without bracket | 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Datasheet
ve802_extender_ss_en.pdf (1.06 MB)User Manual
ve802-w_2015-05-11.pdf (657.32 KB)Quick Start Guides
ve802_extender_qsg.pdf (3.78 MB)CAD Drawing
VE802R-ASM-V02_WEB.pdf (34.65 KB)Compatible Products
