DisplayPort HDBaseT-Lite Extender (4K@40m; 1080p@70m) (HDBaseT Class B)


VE901
MSRP: Quote Upon Request
  • HDBaseT Connectivity – extends a DisplayPort connection up to 70 meters via a single Cat 6a cable or ATEN 2L-2910 Cat 6 cable
4K
HDBaseT

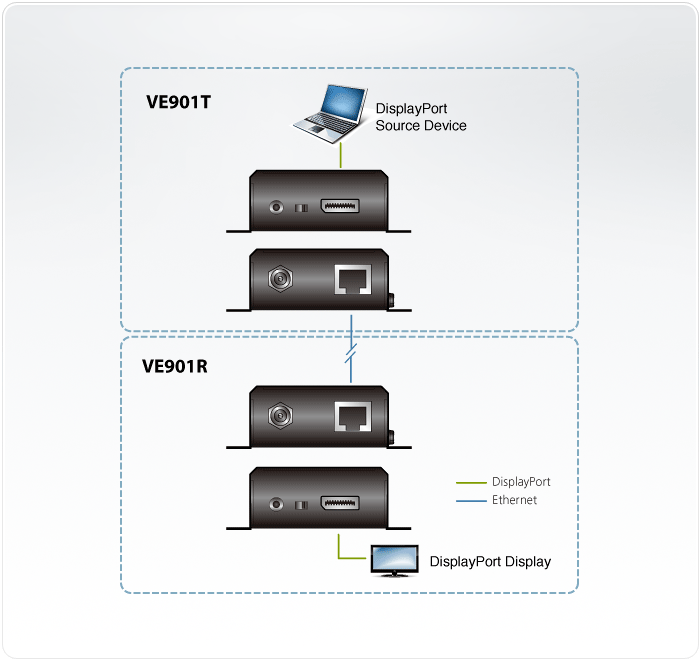

The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

The VE901 DisplayPort HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901 can be installed in a multitude of locations while ensuring peace of mind with its reliability.

Package Contents

  • 1x VE901T DisplayPort HDBaseT-Lite Transmitter
  • 1x VE901R DisplayPort HDBaseT-Lite Receiver
  • 2x 0AD8-1F05-26M1 Power Adapters
  • 1x User Instructions
  • HDBaseT Connectivity – extends a DisplayPort connection up to 70 meters via a single Cat 6a cable or ATEN 2L-2910 Cat 6 cable
  • DisplayPort v1.1*; HDCP 1.4 compliant
  • Superior video quality – 4K @ 35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat 6 cable) and 1920 x 1080 @ 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6 cable)
  • HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
  • Featuring 3.3V / 500mA power output for powering auxiliary devices
  • Plug-and-play
  • Rack-Mountable
    *Note:
    DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.
FunctionVE901RVE901T
Video Input
InterfacesN/A1 x DisplayPort Female (Black)
ImpedanceN/A100 Ω
Max. DistanceN/A1.5 m
Video Output
Interfaces1 x DisplayPort Female (Black)N/A
Impedance100 ΩN/A
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock297 MHz297 MHz
ComplianceDisplayPort (Deep Color, 4K)
HDCP Compatible
DisplayPort (Deep Color, 4K)
HDCP Compatible
Max. Resolutions / DistanceUp to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m (Cat 5e/6) / 70m (Cat 6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m (Cat 5e/6) / 70m (Cat 6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
InputN/A1 x DisplayPort Female (Black)
Output1 x DisplayPort Female (Black)N/A
Connectors
Power1 x DC Jack (Black) with locking1 x DC Jack (Black) with locking
Power ConsumptionDC5V:5.72W:27BTUDC5V:2.84W:13BTU
Environmental
Operating Temperature0-40°C0-40°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.27 kg ( 0.59 lb )0.24 kg ( 0.53 lb )
Dimensions (L x W x H) with bracket9.77 x 8.70 x 3.00 cm
(3.85 x 3.43 x 1.18 in.)
9.77 x 8.70 x 3.00 cm
(3.85 x 3.43 x 1.18 in.)
Dimensions (L x W x H) without bracket9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)
9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)
