HDMI HDBaseT-Lite Extender with PoH (4K@40m) (HDBaseT Class B)


VE802
MSRP: Quote Upon Request
  • HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • PoH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
  • Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel – IR transmission is processed one direction at a time
4K
HDBaseT
HDMI

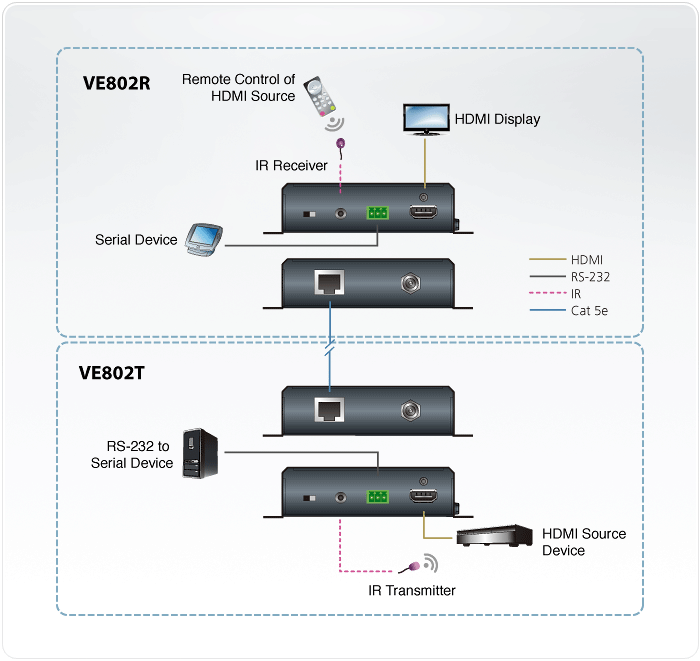

The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (PoH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802 is perfect for a digital entertainment center or any installation that requires superior video quality.

Package Contents

  • 1x VE802T/R HDMI HDBaseT-Lite Extender with PoH
  • 1x 0AD8-1F05-30M1 Power Adapter (VE802T)
  • 1x 2XRT-00004G IR Transmitter
  • 1x 2XRT-0003G-1 IR Receiver
  • 2x JCTN-3401-103G Terminal Blocks
  • 1x User Instructions
  • HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
  • HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  • PoH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
  • Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel – IR transmission is processed one direction at a time
  • Rack- Mountable
FunctionVE802RVE802T
Video Input
InterfacesN/A1 x HDMI Type A Female (Black)
ImpedanceN/A100 Ω
Max. DistanceN/A3 m
Video Output
Interfaces1 x HDMI Type A Female (Black)N/A
Impedance100 ΩN/A
Max. Distance3 mN/A
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceUp to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
InputN/A1 x HDMI Type A Female (Black)
Output1 x HDMI Type A Female (Black)N/A
Control
RS-232Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR1 x Mini Stereo Jack Female (Black)1 x Mini Stereo Jack Female (Black)
Connectors
Power1 x DC Jack (Black) with locking
or 1 x RJ-45 (Power Over HDBaseT, POH)
1 x DC Jack (Black) with locking
Unit To Unit1 x RJ-45 Female1 x RJ-45 Female
Power ConsumptionDC5V:4.37W:20BTU
POH:5.46W:25BTU

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
DC5V:2.7W:13BTU

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature0 - 50°C0 - 50°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.46 kg ( 1.01 lb )0.44 kg ( 0.97 lb )
Dimensions (L x W x H) with bracket14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)
14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
