HDMI HDBaseT-Lite Receiver with Scaler (1080p@70m) (HDBaseT Class B)


VE805R
MSRP: Quote Upon Request
  • HDBaseT Connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6a cable
  • Scaler – features a scaling function to integrate a video wall seamlessly with various output formats
  • Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
  • Video Wall – features configurable video wall profiles available for custom screen layouts via simple point-n-click web GUI*
HDBaseT
HDMI

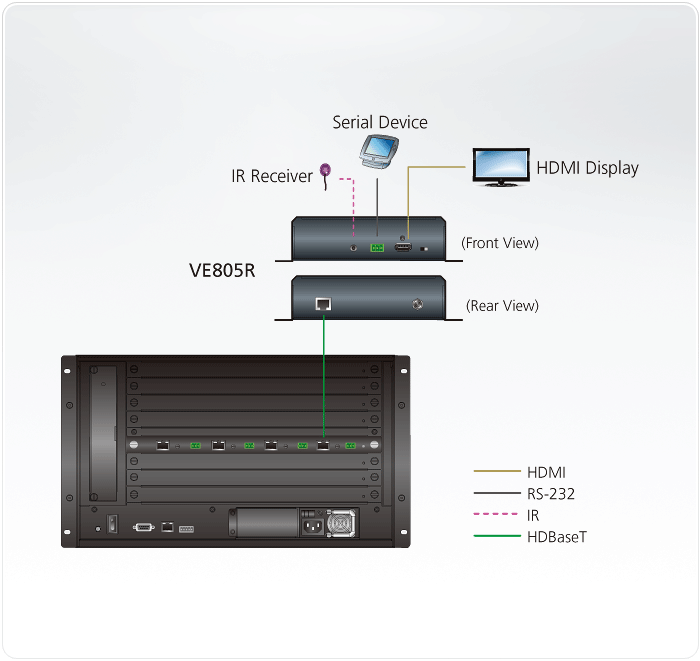

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend a HDMI display up to 60 m from the HDMI source device using a single Cat 5e/6 cable or up to 70 m via a Cat 6a cable.


With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.

Package Contents

  • 1x VE805R HDMI HDBaseT-Lite Receiver with Scaler
  • 1x 0AD6-1F05-26EG Power Adapter
  • 1x 2XRT-0003G IR Transmitter
  • 1x 2XRT-0004G IR Receiver
  • 1x Terminal Block
  • 1x User Instructions
  • HDBaseT connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6/6a cable
  • HDBaseT Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology
  • Bi-directional RS-232 channel1 – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Scaler – features a scaling function to integrate a video wall seamlessly with various output formats
  • Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions2
  • Video Wall – features configurable Video Wall profiles available for custom screen layouts via simple point-n-click web GUI2
  • Bi-directional IR channel – IR transmission is processed one direction at a time3
  • Rack-mountable

    Note:
    1. Bi-directional RS-232 channel only available when VE805R is used with the VM8514.
    2. The Seamless SwitchTM and Video Wall functions are available when the VE805R is used with the VM8514.
    3. Supports full frequency IR signals from 30KHz to 60KHz; however the IR receiver cable included with the package only supports 30KHz to 56 KHz.
Video Input
Interfaces1 x RJ-45 Female (Silver)
Impedance100 Ω
Video Output
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ω
Max. Distance3 m
Video
Max. Data Rate6.75 Gpbs (2.25 Gbps per lane)
Max. Pixel Clock225 MHz
ComplianceHDMI (3D, Deep Color)
HDCP 1.4 Compatible
HDBaseT Compatible
Max. Resolutions / DistanceUp to 1080p @60m (Cat 5e/6); 70m (Cat 6a)
Control
RS-2321 x Captive Screw Connector, 3 Pole
IR1 x Mini Stereo Jack Female (Black)
Connectors
Power1 x DC Jack (Sliver)
Switches
Firmware Upgrade1 x Slide Switch
Power ConsumptionDC5V:8.36W:39BTU
Environmental
Operating Temperature0 - 50°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.81 kg ( 1.78 lb )
Dimensions (L x W x H)17.74 x 16.92 x 4.20 cm
(6.98 x 6.66 x 1.65 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.




Desc.Ver.Release DateFile Name
Firmware Upgradev2.2.2132021-08-19 ve805r_v2.2.213_fw.zip
Firmware Upgradev2.2.2132021-08-19 ve805r_v2.2.213_exe.zip
Firmware Upgradev2.2.2112019-03-27 ve805r_v2.2.211_exe.zip
Firmware Upgradev2.2.2112019-03-27 ve805r_v2.2.211_fw.zip
Firmware Upgradev2.1.2092019-01-11 ve805r_v2.1.209_exe.zip
Firmware Upgradev2.1.2092019-01-11 ve805r_v2.1.209_fw.zip
Firmware Upgradev2.1.2022017-01-10 ve805r_v2.1.202.fw
Firmware Upgradev2.1.2022017-01-10 ve805r_v2.1.202.zip
Firmware UpgradeV2.0.1992016-08-29 ve805r_v2.0.199.zip
Firmware UpgradeV2.0.1992016-08-29 ve805r_v2.0.199.fw
Firmware UpgradeV1.1.1032016-04-20 ve805r_v1.1.103.zip
Firmware Upgradev1.0.0662015-06-16 ve805r_v1.0.066.zip
