HDMI/USB Cat 5 Extender (1080p@40m)
VE803

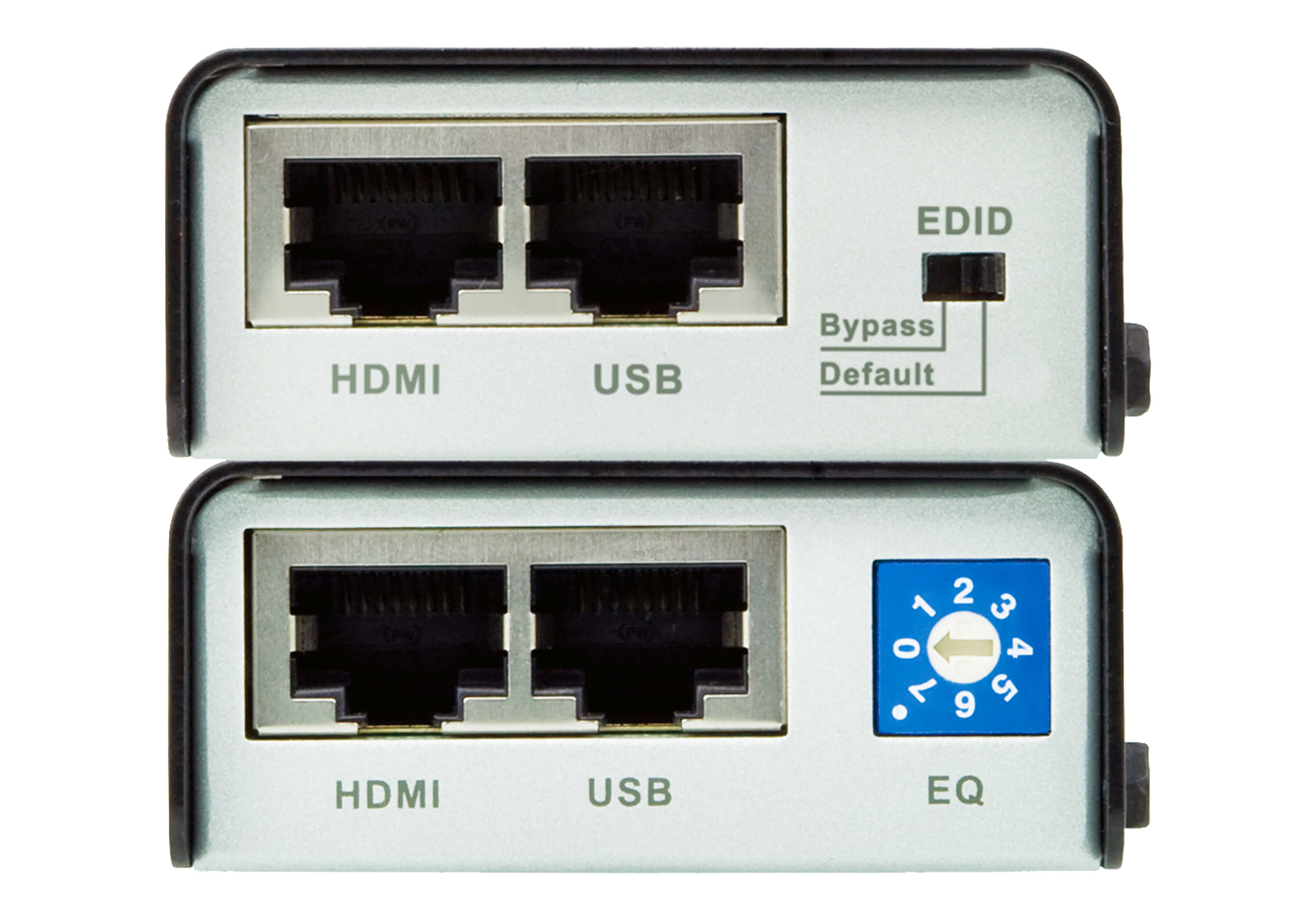

- Uses two Cat 5e cables to connect the local and the remote units
- Extends 1080p by 40m; extend 1080i by 60m
- Transparent USB Support – supports all USB 2.0 full speed device (up to 12 Mbps)
- HDMI (3D, Deep Color); HDCP compatible – signaling rates up to 2.25Gbits
MSRP:
Quote Upon Request
The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.
The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application.
Package Contents
- 1x VE803T HDMI USB Extender
- 1x VE803R HDMI USB Extender
- 1x Power Adapter
- 1x USB Cable (1.8 m)
- 1x Mounting Kit
- 1x User Instructions
- Uses two Cat 5e cables to connect the local and the remote units
- Extends 1080p by 40m; extend 1080i by 60m
- Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- Supports USB touch panel
- 8 segment equalization adjustment switch optimizes display quality
- Support Dolby True HD and DTS HD Master Audio
- Built-in 8KV/15KV ESD protection
- Transparent USB Support – supports all USB 2.0 full speed device (up to 12 Mbps)
- Supports wide screen formats
- HDMI (3D, Deep Color); HDCP compatible – signaling rates up to 2.25Gbits
- Powered local unit via USB cable
Function | VE803R | VE803T |
Video Input | ||
Interfaces | N/A | 1 x HDMI Type A Female (Black) |
Impedance | N/A | 100 Ω |
Max. Distance | N/A | 3 m |
Video Output | ||
Interfaces | 1 x HDMI Type A Female (Black) | N/A |
Impedance | 100 Ω | N/A |
Max. Distance | 3 m | N/A |
Video | ||
Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) | 6.75 Gbps (2.25 Gbps Per Lane) |
Max. Pixel Clock | 225 MHz | 225 MHz |
Compliance | HDMI (3D, Deep Color) HDCP Compatible | HDMI (3D, Deep Color) HDCP Compatible |
Max. Resolutions / Distance | Up to 1080p@40m; 1080i@60m | Up to 1080p@40m; 1080i@60m |
Audio | ||
Input | N/A | 1 x HDMI Type A Female (Black) |
Output | 1 x HDMI Type A Female (Black) | N/A |
Control | ||
USB | 1 x USB Type A Female | 1 x USB Type B Female |
EDID Settings | EDID Mode: Default | EDID Mode: Default |
Connectors | ||
Power | 1 x DC Jack | 1 x DC Jack |
Power Consumption | DC5V:0.75W:14BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. | DC5V:1.04W:16BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental | ||
Operating Temperature | 0 - 50°C | 0 - 50°C |
Storage Temperature | -20 - 60°C | -20 - 60°C |
Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
Physical Properties | ||
Housing | Metal | Metal |
Weight | 0.16 kg ( 0.35 lb ) | 0.16 kg ( 0.35 lb ) |
Dimensions (L x W x H) | 9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.) | 9.00 x 5.74 x 2.40 cm (3.54 x 2.26 x 0.94 in.) |
Carton Lot | 5 pcs | 5 pcs |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
