HDMI HDBaseT Transmitter (4K@100m) (HDBaseT Class A)

Name: VE812T
Brand: ATEN

VE812T

MSRP: Quote Upon Request

Add to Quote Cart

Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
HDMI (3D, Deep Color, 4k); HDCP Compatible
Long distance transmission - up to 100m
Supports up to 340MHz bandwidth for high performance video

Note: The images are for reference only. The printing on the device may differ due to product enhancement.

/global/en/supportcenter/service/warranty-policy-new/a-product-warranty/

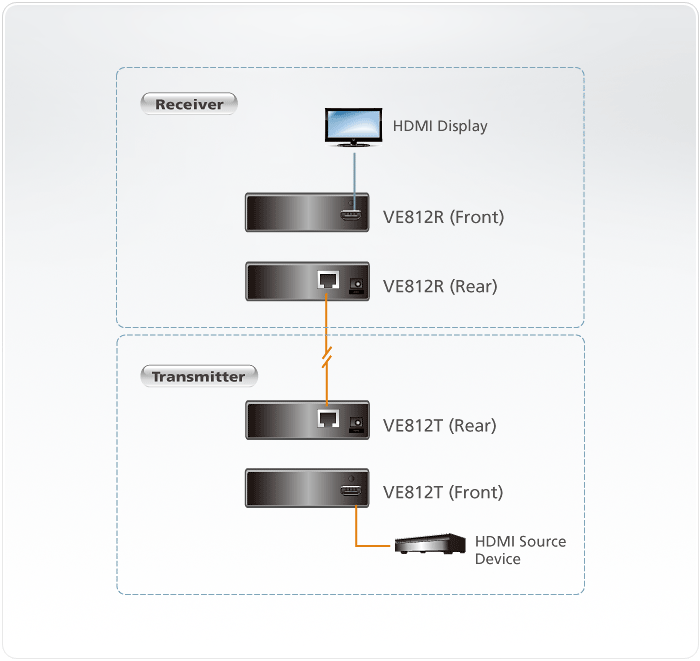

The VE812T HDMI HDBaseT Transmitter enables an HDMI display to be located up to 100 meters away from the source device. It can be conveniently extended using only one Cat 5e cable, which is cost-effective.

The VE812T supports HDMI (3D, Deep Color), Ultra HD (4k x 2k), and is HDCP compatible. Furthermore, the remote EDID pass-through ensures optimum video quality for any HDMI display.

The VE812T is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.

Package Contents

1x VE812T HDMI HDBaseT Transmitter
1x Power Adapter
1x Mounting Kit
1x User Instructions

Extends the distance between HDMI source and HDMI display
Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
HDMI (3D, Deep Color, 4k); HDCP Compatible
Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Long distance transmission - up to 100m
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Supports up to 340MHz bandwidth for high performance video
Supports Dolby True HD and DTS HD Master Audio
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3 m
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock	Up to 340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Max. Resolutions / Distance	Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input	1 x HDMI Type A Female (Black)
Connectors
Power	1 x DC Jack (Black)
Power Consumption	DC5.3V:2.22W:10BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.40 kg ( 0.88 lb )
Dimensions (L x W x H)	14.17 x 10.30 x 3.00 cm (5.58 x 4.06 x 1.18 in.)
Carton Lot	5 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
