9 x 9 4K HDMI HDBaseT-Lite Matrix Switch
DiscontinuedVM3909H
- Supports 9 HDMI inputs and mirrored 9 HDMI and HDBaseT outputs
- The mirrored HDMI outputs can be used to verify the corresponding HDBaseT output or as an additional video display*
- HDBaseT Connectivity – connects HDMI displays over a long distance via one Cat 5e/6/6a cable
- Power over HDBaseT (POH) – supplies power over a long distance from the switch to a receiver over a single Cat 5e/6/6a cable** / ***
With the rapid development of HDBaseT technology, ATEN has released the new VM3909H HDMI HDBaseT-Lite Matrix Switch. The switch extends uncompressed 4K / Full HD digital video, audio, IR and power via HDBaseT technology through a single Cat 6a cable up to 40/70 meters.

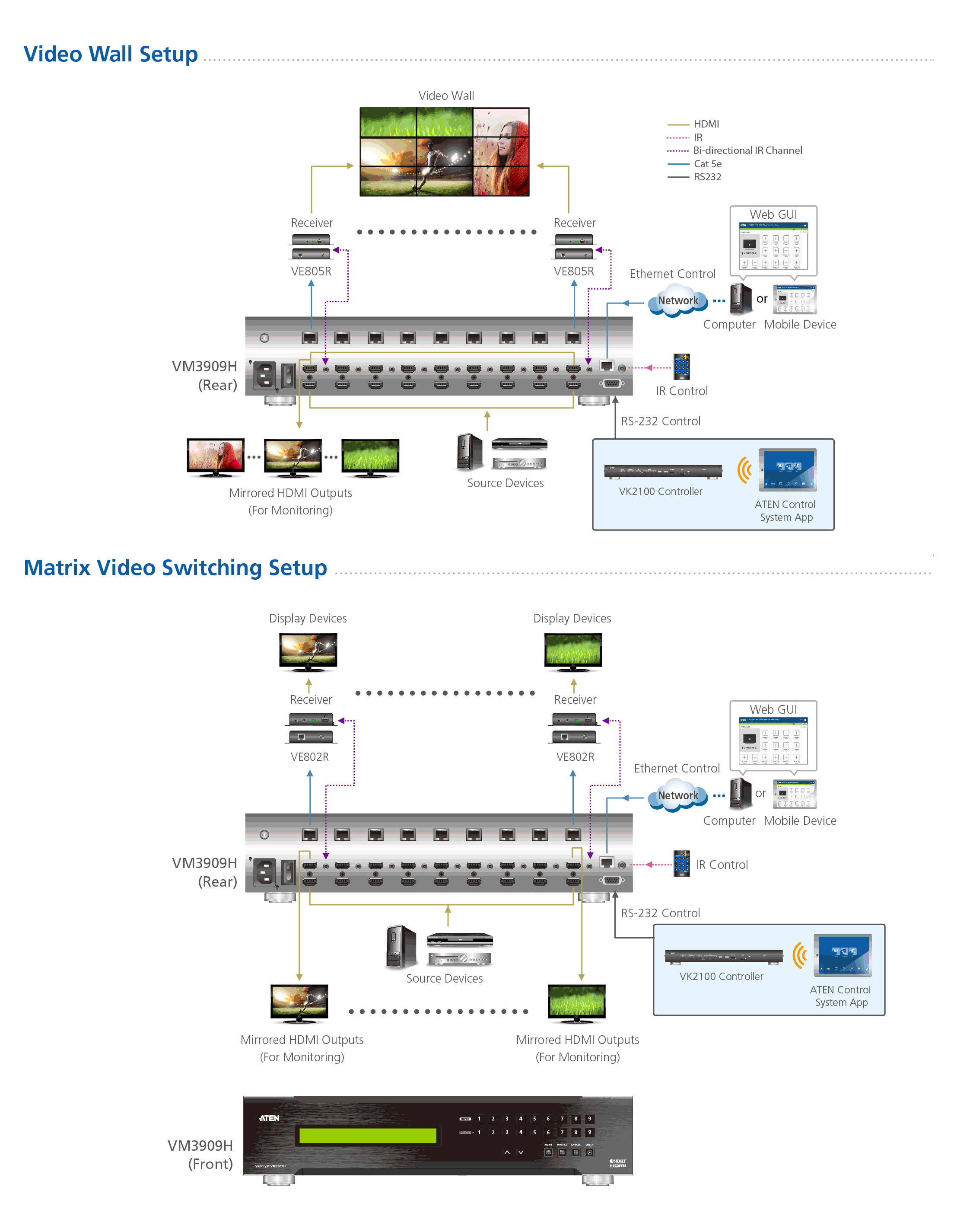

When the VM3909H is combined with VE805R/VE816R receivers, it supports both ATEN Seamless Switch™ technology and Video Wall functionality. ATEN’s exclusive Seamless Switch™ technology employs an FPGA graphics processor to ensure continuous video streaming, real-time control and stable signal transmission across all sources. The Video Wall functionality allows you to create 18 video wall profiles for custom screen layouts through an easy-to-use web interface. The Power over HDBaseT (POH) feature provides an ingenious way to power the VE802R receivers through the Cat 5e cable without the need of using an additional power supply.
The VM3909H offers flexibility with reliable signal distribution controlled via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections. It’s designed as a functional and integrated control system built for residential, commercial and conference center settings
Package Contents
- 1x VM3909H HDMI HDBaseT-Lite Matrix Switch
- 1x Power Cord
- 1x Mounting Kit
- 1x User Instructions
- Supports 9 HDMI inputs and mirrored 9 HDMI and HDBaseT outputs
- The mirrored HDMI outputs can be used to verify the corresponding HDBaseT output or as an additional video display*
- HDBaseT Connectivity – connects HDMI displays over a long distance via one Cat 5e/6/6a cable
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission
- Power over HDBaseT (POH) – supplies power over a long distance from the switch to a receiver over a single Cat 5e/6/6a cable ** / ***
- Seamless Switch™ Technology – ATEN FPGA engine unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions**
- Video Wall - allows you to create custom video wall layouts via intuitive web GUI**
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections
- View and control via ATEN Video Matrix Control App in a swift and agile way
- Bi-directional IR channel ports support full frequency IR signals from 30 KHz to 60 KHz
- Supports ATEN’s LockPro™ HDMI cable lock for securing HDMI cables to the device
- Firmware Upgradeable
- Rack Mountable (VM3909H: 2U Design)
Note:
* The HDMI outputs can't support the Video Wall and Seamless Switch™ functions.
** The Seamless Switch™, Video Wall and POH features are only available when used a compatible receiver.
*** The VM3909H can provide up to 15.4 W @ 48 VDC of power per port and 75W of total power ; please ensure that the power consumption of the devices connected to the VM3909H does not exceed this limit.
Video Input | |
Impedance | 100 Ω |
Interfaces | 9 x HDMI Type A Female (Black) |
Max. Distance | 3.0 m |
Video Output | |
Interfaces | 9 x HDMI Type A Female (Black) ; 9 x RJ-45 Female |
Impedance | 100 Ω |
Max. Distance | HDMI: up to 15 m HDBaseT (Class B): 4K up to 35 m (Cat 5e/6) / 40 m (Cat 6a); 1080p up to 60 m (Cat 5e/6) / 70 m (Cat 6a) |
Video | |
Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
Max. Pixel Clock | 340 MHz |
Compliance | HDMI (3D, Deep Color, 4K); HDCP 1.4 Compatible Consumer Electronic Control (CEC) HDBaseT Compatible |
Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Max. Distance | Up to 70 m |
Control | |
RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
IR Channel | 9 x Mini Stereo Jack Female (Black); 30~60 KHz full range transmission |
Ethernet | 1 x RJ-45 Female |
EDID Settings | EDID Mode: Default / Port1 / Remix / Customized |
Connectors | |
Power | 1 x 3-Prong AC Socket |
Power | |
Maximum Input Power Rating | 100-240 VAC; 50-60 Hz; 1.0A |
Power Consumption | AC110V:122W:572BTU/h AC220V:120W:563BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental | |
Operating Temperature | 0-50°C |
Storage Temperature | -20 - 60°C |
Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | 7.33 kg ( 16.15 lb ) |
Dimensions (L x W x H) | 43.24 x 38.23 x 8.80 cm (17.02 x 15.05 x 3.46 in.) |
Rack Height (U Spaces) | 2U |
Carton Lot | 1 pc |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
