1-Local/Remote Share Access Single Port VGA KVM over IP Switch - TAA Compliant


CN8000A
MSRP: Quote Upon Request
  • High video resolution – up to 1920 x 1200 @ 60 Hz- 24 bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
  • Virtual Media Support
  • TLS 1.2 encryption to protect password when users log in
  • TAA Compliant

The new generation ATEN CN8000A features superior video quality with HD resolutions up to 1920 x 1200, LUC (Laptop USB Console) for easier KVM access, user-friendly local console OSD and virtual media function without additional cable.

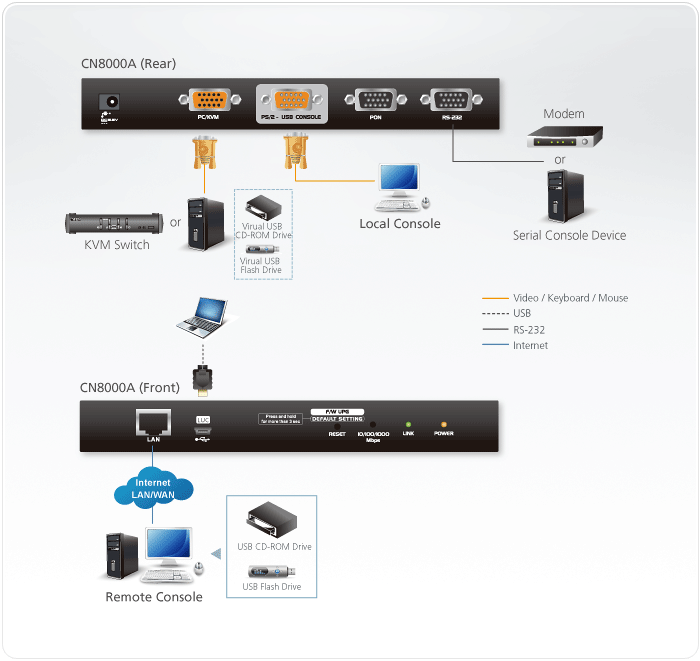

The CN8000A Single Port KVM over IP provides access control through “over-IP” for conventional KVM switches that do not have built in over-IP functionality. It allows system operators to monitor and access computers from remote locations using standard Web browsers or Windows and Java based application programs. The CN8000A connects to the Intranet either LAN or WAN simply by using an industry standard Cat 5e/6 cable, and is connected to a local KVM switch or server via a custom KVM cable.


The ATEN CN8000A uses the standard TCP/IP protocols for communications, it allows the connected server or KVM switch to be accessed from any computer over the internet – whether that computer is located down the hall, in other areas of the country or branch offices in other parts of the world.

The CN8000A expands on previous models by providing a dedicated RS-232 port for modem access or serial console management, a PON port to connect a ATEN PDU device and USB 2.0 virtual media capability.

A Windows Client and a Java Client are available for remote access. They allow IP connection and login from anywhere over the internet. In addition, ATEN also provides an iOS APP - PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from your iPad. Please visit the PadClient webpage for more information.

To meet advanced security requirements, the CN8000A’s Virtual Media function allows a Smart Card / CAC reader on a user’s local system to be mapped to a remote server. The CN8000A provides a fast, reliable and a cost effective way to remotely access and manage widely distributed multiple computer installations.

Package Contents

  • 1x CN8000A Single Port KVM over IP
  • 1x Custom KVM Cable (VGA, USB, PS/2; 1.2m/4ft)
  • 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
  • 1x USB Cable (USB-A to USB Mini-B; 1.8m/6ft)
  • 1x Power Adapter
  • 1x Rack Mounting Kit
  • 1x User Instructions
  • Hardware
  • Provides over-IP capability to KVM switches that do not have built in over-IP functionality *
  • Supports PS/2,USB, Sun Legacy (13W3)** and serial (RS-232) connectivity
  • Local console provides PS/2, USB keyboard and mouse support***
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Virtual Media Support
  • High video resolution – up to 1920 x 1200 @ 60 Hz- 24 bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
  • Enhanced fps (frames per second) throughput for crisp responsive video display
    Note:
    * Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, CS1308, CS1316, CS1754*, CS1758*, CS1708A, CS1716A, ACS1208A, ACS1216A, CS228*, CS428*, KH0116, KH2508, KH2516, KH1508, and KH1516
    - Some of the CN8000A’s features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media.)
    - Some features found on the cascaded KVM switches may not be supported on the CN8000A. (For example, the CS1754’s audio.)
    ** Requires CV130A converter purchase
    ***Since there are a large number of keyboards/mouses with functions specifically designed for OS other than Windows, they may not be adapted and may have compatibility issue.



  • Management
  • Laptop USB Console (LUC) – A dedicated USB port directly connects to laptop for easy console operation
  • Easy configuration through local console OSD
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • End session feature – administrators can terminate running sessions
  • Event logging and Windows-based Log Server support
  • Critical system events sent by email and SNMP trap; and Syslog support
  • Remote Firmware upgradable
  • Serial console management – serial terminal access. Access the CN8000A via a built-in serial viewer, or via third party
  • software (such as PuTTY) for Telnet and SSH sessions
  • PPP mode (modem) dial-in/dial back/dial out support for out-of-band, and low bandwidth operation
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Local/Remote Share Mode to conveniently grant shared or exclusive console privilege
  • Integration with ATEN CC2000 Centralized Management Software
  • Integration with ATEN CCVSR Video Session Recording Software
  • Power Over the NET integration for remote power control
  • DDNS (Dynamic Domain Name System)
  • Export/import user account and configuration settings
  • Enable/disable browser operation
  • IPv6 capable



  • Easy-to-Use Interface
  • Browser-based and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
  • Full-screen or sizable and scalable Virtual Remote Desktop
  • Magic Panel



  • Advanced Security
  • Smart Card /CAC Reader Support
  • External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • TLS 1.2 encryption to protect password when users log in
  • Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or system-generated random selection for independent keyboard/mouse, video, and virtual media data encryption
  • Support for IP/MAC Filter
  • Supports password protection
  • Private CA



  • Virtual Media
  • Virtual media enables file applications, OS patching, software installation and diagnostic testing
  • Works with USB enabled servers in operating system and BIOS level
  • Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
  • Convenient to use without virtual media cable



  • Virtual Remote Desktop
  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full screen video display or scalable video display
  • Message Board for communication among remote users
  • On-screen keyboard with multilanguage support
  • Mouse Dynasync
  • Exit Macros support
  • BIOS-level access
Connectors
Console Ports1 x SPHD Male (Yellow)
KVM (Computer) Ports1 x SPHD Female (Yellow)
Laptop USB Console (LUC) Port1 x USB Mini-B Female
PON1 x DB-9 Male
RS-2321 x DB-9 Male
LAN Ports1 x RJ-45 Female
Power1 x DC Jack
Switches
Reset1 x Semi-recessed Pushbutton
LEDs
Power1 (Orange)
Link1 (Green)
10/100/1000 Mbps1 (Orange / Orange+Green /Green)
Emulation
Keyboard / MouseUSB; PS/2
VideoUp to 1920 x 1200 @ 60 Hz; DDC2B
Power ConsumptionDC5.3V:4.79W:31BTU
Environmental
Operating Temperature0 - 50°C (CN8000A)
0 - 40°C (Power Adapter)
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-condensing
Physical Properties
HousingMetal
Weight0.49 kg ( 1.08 lb )
Dimensions (L x W x H)20.00 x 8.14 x 2.50 cm
(7.87 x 3.2 x 0.98 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.





DescriptionVer.Release DateFile Name
Firmware Upgradev1.0.0952024-01-02 cn8000a-v1.0.095.zip
Firmware Upgradev1.0.0932023-01-30 cn8000a_v1.0.093.zip
Firmware Upgradev1.0.0922020-04-17 cn8000a_v1.0.092.zip
Firmware Upgradev1.0.0892019-07-25 cn8000a_v1.0.089.zip
Firmware Upgradev1.0.0832018-11-21 cn8000a_v1.0.083.zip
Firmware Upgradev1.0.0772018-02-07 cn8000a_v1.0.077.zip
Firmware Upgradev1.0.0752018-01-03 cn8000a_v1.0.075.zip
Firmware Upgradev1.0.0712017-10-13 cn8000a_v1.0.071.zip
Firmware Upgradev1.0.0692017-05-16 cn8000a_v1.0.069.zip
Firmware Upgradev1.0.0652017-01-16 cn8000a_v1.0.065.zip
OSDescriptionVer.Release DateFile Name
IP Installer & Utility
IP Installerv1.4.1342018-03-22 IPInstaller_v1.4.134.zip
IP Installerv1.4.1322014-09-23 IPInstaller_v1.4.132.zip
