Dual Rail LCD Console (PS/2-USB, VGA)


CL5800
  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with a 19" LED-backlit LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Supports input video resolutions up to 1920 x 1200@60 Hz
  • Supports an external console* with either PS/2 or USB connectors
ROHS
Weee

Enquire Now

The CL5800 is a LCD KVM console featuring an integrated 19" LED-backlit LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing.

The CL5800's LCD and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.
For added convenience, ports for an external PS/2 or USB keyboard and mouse as well as a monitor are provided on the rear panel.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below or the link: LCD KVM Optional Rack Mount Kit

CL5800N: 19" LCD

Package Contents

  • 1x CL5800 Dual Rail LCD PS/2-USB Console with Standard Rack Mount Kit
  • 1x Custom KVM Cable (VGA, USB, PS/2; 1.8m/6ft)
  • 1x Power Cord
  • 1x Firmware Upgrade Cable
  • 2x L Brackets
  • 1x User Instructions
  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with a 19" LED-backlit LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Standard rack mount kit included
  • Supports an external console* with either PS/2 or USB connectors
  • Dual interface - Supports computers and KVM switches with PS/2 or USB keyboards and mice
  • Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
  • Embedded power supply
  • High video resolution:
    • Up to 1280 x 1024 @75Hz
    • Supports DDC, DDC2, DDC2B
    • DDC emulation of the LCD monitor
    • Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
  • Standard 105-key keyboard; Sun keyboard emulation
  • Dual rail design allows LCD monitor and keyboard/touch pad modules to operate independently
  • Firmware upgradeable
  • Supports Microsoft Intellimouse (5 keys)
  • Supports Logitech and Microsoft wireless mice
  • Optional rack mount kits available including easy installation options
  • Console lock - enables the console drawer to remain securely locked away in position when not in use

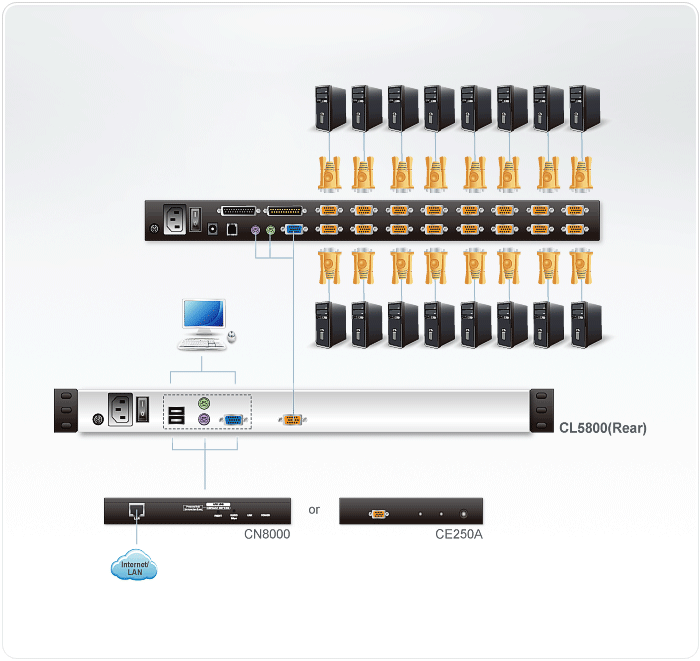

    * Connect to a KVM over IP solution (e.g. CN8000A) for over-the-Internet access at a remote location.

    More information about "Easy Rack Mounting"...
FunctionCL5800N
Computer Connections
Direct1
Console SelectionHotkey
Connectors
KVM Ports1 x SPHD Female (Yellow)
Firmware Upgrade1 x RJ-11 Female
Power1 x IEC 60320/C14
External Console Ports1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
External Mouse / Peripheral1 x USB Type A Female (Front)
Switches
Reset1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch
Power1 x Rocker Switch
LCD Control4 x Pushbutton
LCD Power1 x LED Pushbutton
LEDs
Power1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light1 x LED Illumination Light
Panel Spec
LCD Module19" TFT-LCD
Resolution1280 x 1024 @ 75 Hz
Response time5 ms
Viewing Angle170° (H), 160° (V)
Pixel Pitch0.294 mm x 0.294 mm
Support Color16.7M colors
Contrast Ratio1000:1
Luminance250 cd/m²
Video
Input Video Resolutionup to 1920 x 1200 @ 60Hz;
1280 x 1024 @ 75 Hz, DDC2B
Emulation
Keyboard / MousePS/2, USB
Maximum Input Power Rating100-240V AC; 50–60Hz; 1A
Power ConsumptionAC110V:22.2W:115BTU
AC220V:22.9W:118BTU
Environmental
Operating Temperature0–50°C
Storage Temperature-20–60°C
Humidity0–80% RH, Non-condensing
Physical Properties
HousingMetal
Rail TypeDual Rail
Weight14.27 kg ( 31.43 lb )
Dimensions (L x W x H)48.00 x 68.04 x 4.40 cm
(18.9 x 26.79 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
