4K DisplayPort to HDMI Active Adapter


VC986
  • Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
  • Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
  • Supports AMD Eyefinity™ Technology (multi-screen setups)
  • Audio supported
HDMI
ROHS
UHD (4K)
Weee


Plug-n-Play

No installation software or drivers required. The VC986 is the perfect solution for connecting DisplayPort inputs to HDMI output displays. The built-in chip ensures high quality signal conversion, smooth output, and compatibility with DP++.

Supports 4K

Supports resolutions up to 4K, making it highly compatible across devices.




Superior Signal Quality

The internal copper foil shielding protection ensures signal integrity and minimizes external interference, giving you extra reliable and superior quality signals.

AMD Eyefinity Compatible

Compatible with AMD Eyefinity graphics cards for multiple display applications.




Package Contents

  • 1x VC986 4K DisplayPort to HDMI Active Adapter

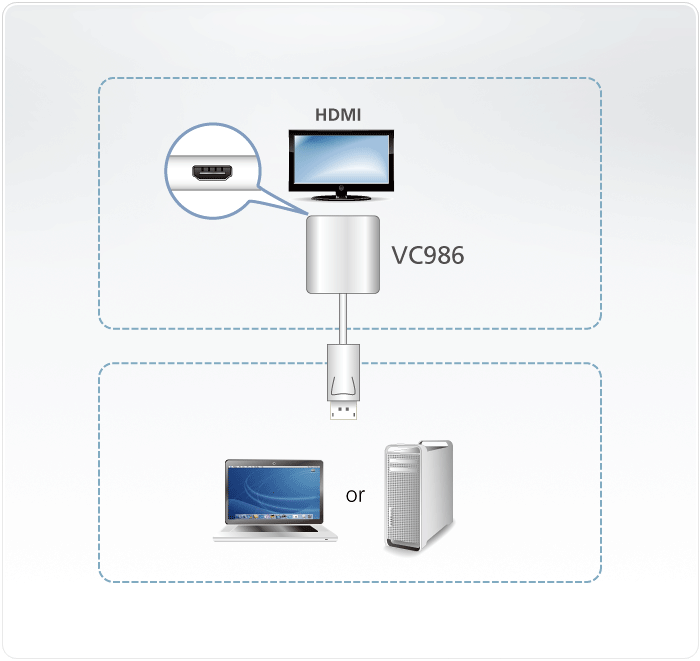

The VC986 is an active DisplayPort to HDMI adapter that allow you to connect your Mini DisplayPort/DisplayPort output device to the HDMI input of a 4K TV or other display.

The ATEN VC986 is an active adapter, featuring advanced chips which ensure stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++).* Moreover, support for resolutions up to 4K make this adapter ideal for users who require a high performance signal conversion solution.

* Dual-mode DisplayPort (DP++) can directly process the signal from DisplayPort to HDMI or DVI signals.



  • Converts DisplayPort signals to HDMI output
  • Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to 4K UHD
  • Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support dual-mode DisplayPort (DP++)*
  • Supports AMD Eyefinity™ Technology (multi-screen setups)
  • Audio supported
  • No software or driver installation required
Video Input
Interfaces1 x DisplayPort Male (White)
Video Output
Interfaces1 x HDMI Type A Female (Black)
Video
Max. Pixel Clock297 MHz
Max. Resolution3840x2160@30Hz, 1920 x 1200@60Hz.
ComplianceDP1.2a, HDMI (3D, Deep Color, 4K), HDCP 1.3
Audio
Output1 x HDMI Type A Female (Black)
Environmental
Operating Temperature0 - 50 ºC
Storage Temperature-20–60 ºC
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPlastic
Weight0.04 kg ( 0.09 lb )
Dimensions (L x W x H)18.00 x 4.50 x 1.50 cm
(7.09 x 1.77 x 0.59 in.)
Carton Lot40 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
