4K Wireless Presentation Switch with Quad View Kit

New
VP2021KIT

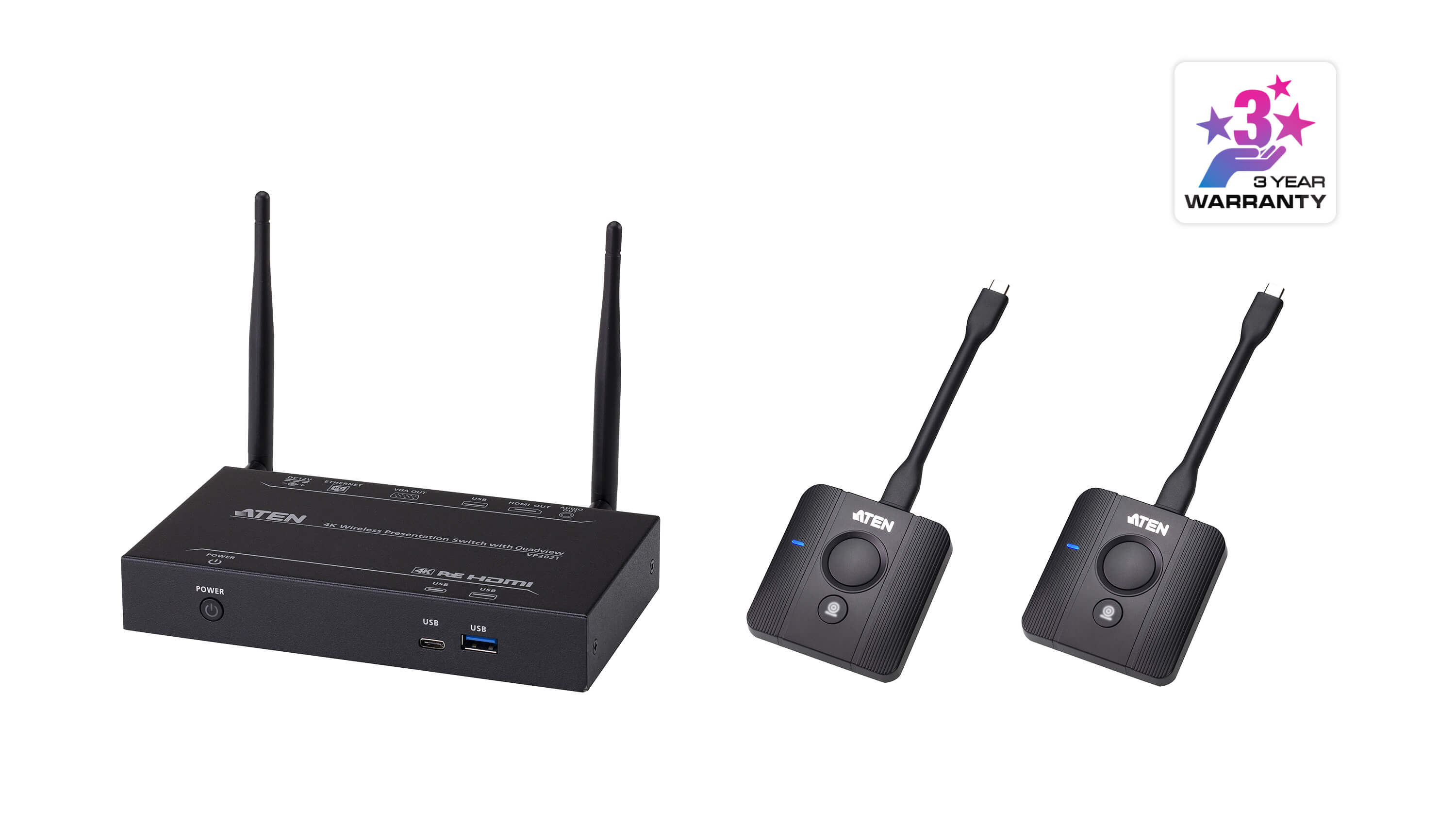

  • Each kit includes 1 × VP2021 wireless presentation switch and 2 × VP201 USB-C wireless dongles
  • 1 × VP2021 can pair with up to 8 × VP201s – 8 individuals can join the meeting wirelessly by plugging in the dongle’s USB-C port to their own laptops / mobile devices*
  • Wireless A/V content casting and power supply via VP201’s USB-C connector with just one click
  • BYOM (Bring Your Own Meeting) – host / join a video conference using your preferred tool (Microsoft Teams / Google Meet / Zoom) directly from your laptop

    Note: 2 × VP201s are included in this kit. The additional 6 × VP201s must be purchased separately.
  • All Features

Add to Quote Cart
MSRP:Quote Upon Request
10-4K
900-HDMI
RC-Icon_66-Power-over-Ethernet
RC-Icon_99-034-BYOD-Wireless-Sharing
RC-Icon_99-035-BYOM
RC-Icon_99-036-USB-Touch-Back-v02
RC-Icon_99-038-Wireless-Transmission
RC-Icon_99-039-Moderation-Mode
RC-Icon_99-041-Collaboration-Tools
RC-Icon_99-042-Multi-view-Function-4
/global/en/supportcenter/service/warranty-policy-new/a-product-warranty/

VP2021KIT contains everything you need to facilitate a wireless BYOM (Bring Your Own Meeting) conference, including 1 × VP2021 wireless presentation switch and 2 × VP201 USB-C wireless dongles. The VP2021 boasts versatile functionalities that foster meeting engagement and momentum, including 4K content transmission, multi-view presentation layouts (full screen / side-by-side / quad view), various collaboration tools (annotation / whiteboard / screen capture), and the support for Moderation Mode and auto layout projection. Up to 8 × VP201s* can be paired with a VP2021 to let 8 individuals join the meeting wirelessly by simply plugging the dongle’s USB-C connector into their laptops or mobile devices and start sharing A/V content with one click on the button on the dongle.

The bundle takes BYOM experiences to the next level with USB touchback support, allowing remote presenters to efficiently control their PCs from the touchscreen / interactive whiteboard in the room without having to go back and forth. Universal, cross-platform compatibility enables participants to interact directly with content from their USB conference devices – such as microphones, cameras, and speakers – and to host meetings on all major operating systems using their preferred video conferencing tools, including Microsoft Teams and Zoom.

Note: 2 × VP201s are included in this kit. The additional 6 × VP201s must be purchased separately.

Package Contents

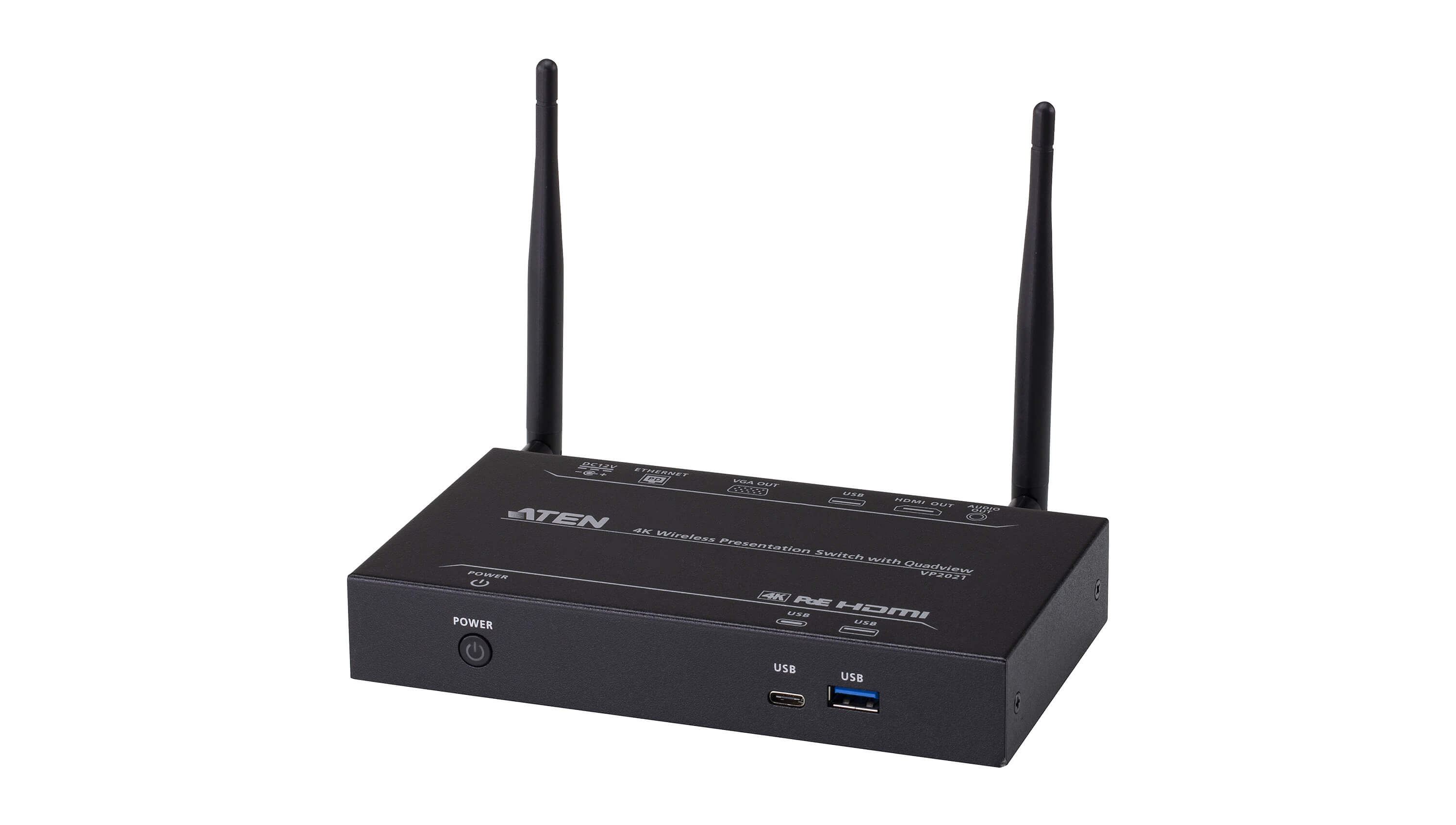

  • 1 x VP2021 4K Wireless Presentation Switch with Quad View

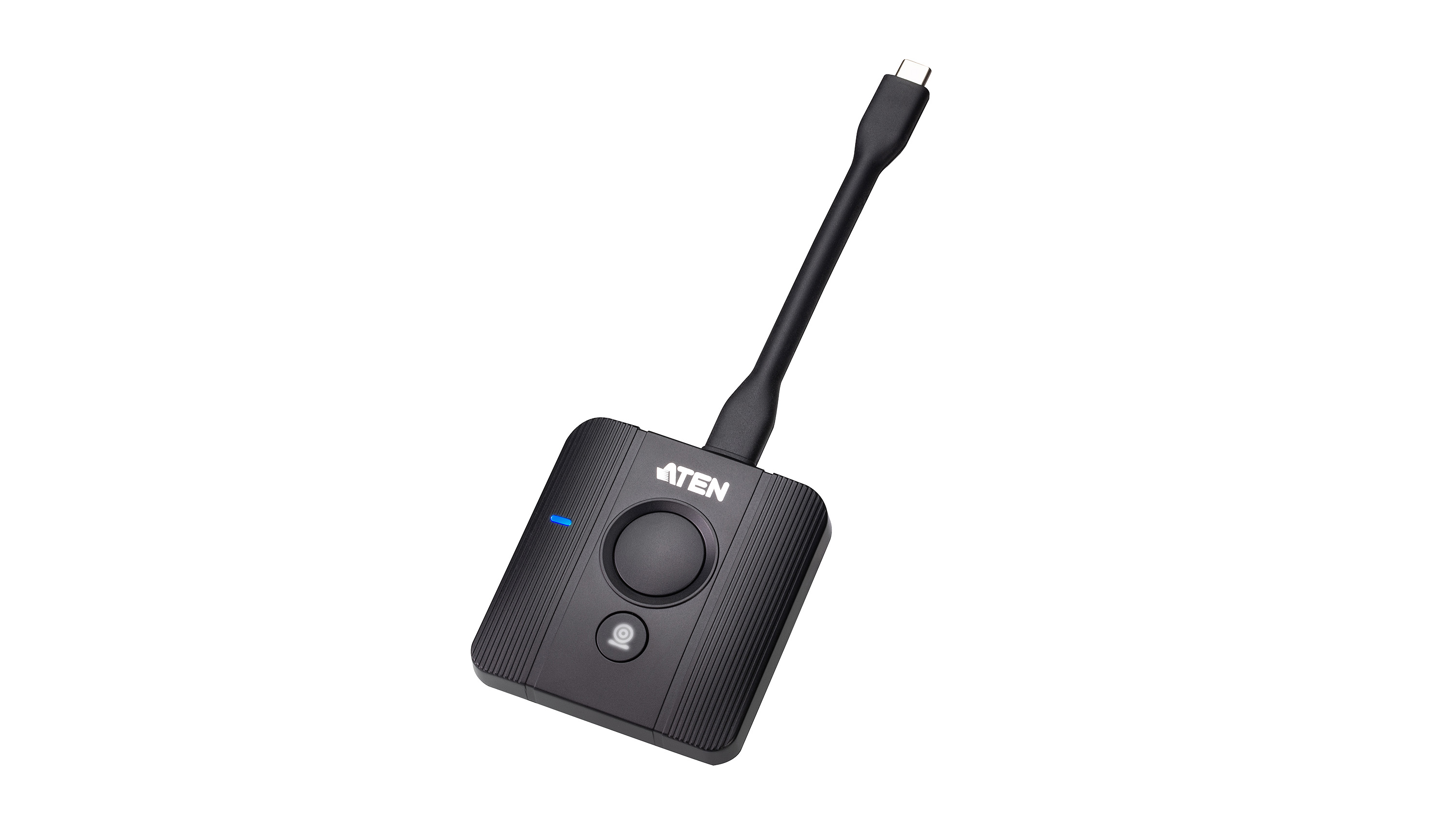

  • 2 x VP201 PresentON® Wireless Dongle for Conferences
  • 1 x Power Adapter and Power Cord
  • 2 x Wifi Antenna
  • 1 x User Instructions
  • Each kit includes 1 × VP2021 wireless presentation switch and 2 × VP201 USB-C wireless dongles
  • 1 × VP2021 can pair with up to 8 × VP201s – 8 individuals can join the meeting wirelessly by plugging in the dongle’s USB-C port to their own laptops / mobile devices
    Note: 2 × VP201s are included in this kit. The additional 6 × VP201s must be purchased separately.
  • Wireless A/V content casting and power supply via VP201’s USB-C connector with just one click
  • USB touchback – ensures seamless presentation flow directly from the in-room eWhiteboard or content interaction from users' USB devices
  • BYOM (Bring Your Own Meeting) – host / join a video conference using your preferred tool (Microsoft Teams / Google Meet / Zoom) directly from your laptop
  • Supports in-room AV equipment ranging from cameras, microphones to speakers
  • Multi-view – up to 4 sources can be shared wirelessly in full screen / side-by-side / quad view layout
  • Auto layout projection – presentation layout can be switched automatically whenever a new signal is detected
  • Moderation Mode – the moderator can manage and control attendees’ connection status and the AV content being displayed
  • Multiple collaboration tools – annotation, whiteboard on screen, and screen capture
  • Simultaneously outputs content at up to 4K to an HDMI display and a VGA display
  • HDMI audio de-embedding – easy integration with audio amplifiers or mixing systems
  • Power over Ethernet (PoE) – eliminates the need for an additional power adapter
  • Supports up to 20 attendees to join the meeting via LAN in the same network environment
  • OS-independent – works on Windows / macOS / Linux
  • Plug-and-play with no need to install software / drivers
FunctionVP201VP2021
Video Input
Interfaces1 x USB-CN/A
Max. Distance12cm cable length and is fixed to the unitN/A
Video Output

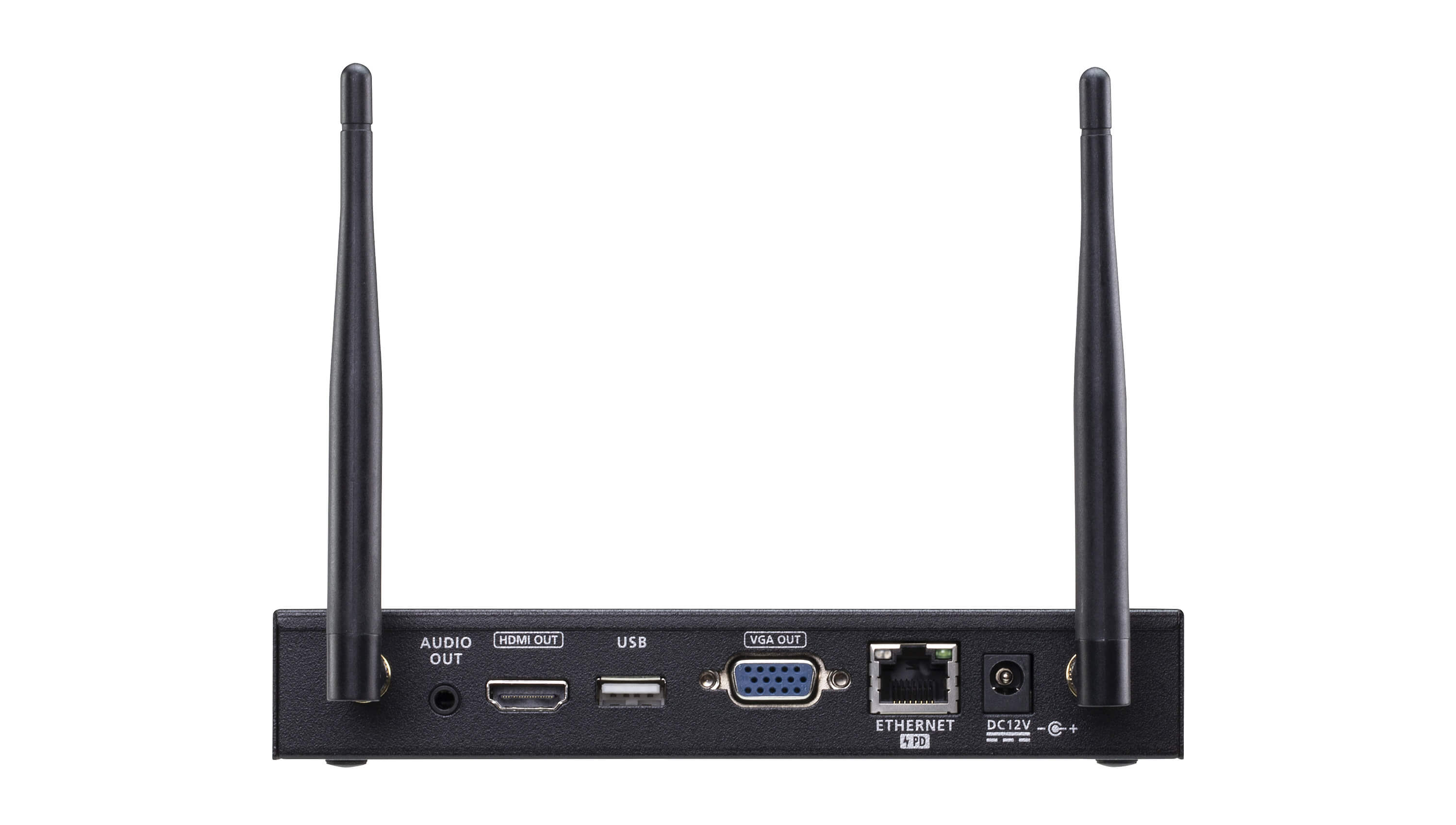

InterfacesN/A1 x HDMI Type A female (Black)
1 x VGA (HDB-15) Female
Max. DistanceN/AHDMI: Up to 5 m
VGA: Up to 15 m
Video
Max. Data RateAverage ~ 12 MbpsAverage ~ 12 Mbps
Max. ResolutionUp to 1080p @ 60 HzHDMI: Up to 4K @ 30 Hz
VGA: Up to 1080p
Audio
Input1 x USB-CN/A
OutputN/A1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Black)
Wireless
Authentication ProtocolWPA2-PSK using the ATEN PresentOn solution in network integration modeAP mode: WPA2-PSK
Station mode: WEP, WPA, WPA2, 802.1x EAP
Wireless Transmission ProtocolIEEE 802.11 a/g/n/acIEEE 802.11 ac
Frequency BandSwitchable dual band 2.4 GHz and 5 GHz (DFS channels not supported)Switchable dual band 2.4GHz and 5GHz (DFS channels not supported)
ReachUp to 10 m* (Line of Sight)Up to 20 m* (Line of Sight)
Connectors
Power1 x USB-C male1 x DC Jack (Black)
Console Ports1 x USB-C maleUSB 3.0: 1 x USB Type-A Female (Blue)
USB 2.0: 1 x USB Type-A Female
USB-C: 1 x USB-C Female
RJ-45 10/100/1000 PortsN/A1 x RJ-45 Ethernet port (Support POE)
Switches
PowerN/A1 x Pushbutton (LED: Blue)
Function Key1 x Function button to connect video conferencing deviceN/A
Mode Switch1 x Share button to control screen sharingN/A
Power ConsumptionDC5V:1.37WDC12V:12W
Environmental
Operating Temperature0-40°C0-40°C
Storage Temperature-10 - 70°C-20 - 60°C
Humidity20 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingPlasticMetal
Weight0.09 kg ( 0.2 lb )0.47 kg ( 1.04 lb )
Dimensions (L x W x H)6.70 x 6.90 x 1.50 cm
(2.64 x 2.72 x 0.59 in.)		17.00 x 10.40 x 2.83 cm
(6.69 x 4.09 x 1.11 in.)
Note* Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.* Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

VP2021KIT-4K-Wireless-Presentation-Switch-with-Quad-View-Kit-datasheet-en.pdf (920.6 KB)
File NameRelease Date
vp2020-vp2021-user-manual-w.pdf (3.58 MB) 2025-11-21
DescriptionVer.Release DateFile Name
Firmware Upgradev1.0.592026-02-09 vp2021-v1.0.59.zip
Firmware Upgradev1.0.562025-12-19 vp2021-v1.0.56.zip
Firmware Upgradev1.0.532025-01-21 vp2021-v1.0.53.zip
Firmware Upgradev1.0.442024-02-06 vp2021-v1.0.44.zip
Firmware Upgradev1.0.282023-02-22 vp2021_v1.0.28.zip
Firmware Upgradev1.0.252023-01-03 vp2021_v1.0.25.zip

Note : For requests regarding firmware versions older than 3 years, please contact the Technical Support team.
