4K Wireless Presentation Switch Kit

New
VP2020KIT
  • Each kit includes 1 × VP2020 wireless presentation switch and 2 × VP200 USB-C wireless dongles
  • 1 × VP2020 can pair with up to 8 × VP200 – 8 individuals can join the meeting wirelessly by plugging in the dongle’s USB-C port to their own laptops / mobile devices*
  • Wireless A/V content casting and power supply via VP200's USB-C connector plugged into laptops / mobile devices
  • BYOD (Bring Your Own Device) – allows attendees to use their personal devices to share content

    Note: 2 × VP200s are included in this kit. The additional 6 × VP200s must be purchased separately.
  • All Features

Add to Quote Cart
MSRP:Quote Upon Request
10-4K
900-HDMI
RC-Icon_66-Power-over-Ethernet
RC-Icon_99-034-BYOD-Wireless-Sharing
RC-Icon_99-036-USB-Touch-Back-v02
RC-Icon_99-038-Wireless-Transmission
RC-Icon_99-039-Moderation-Mode
RC-Icon_99-040-Moderation-ModeMulti-view-Function-2
/global/en/supportcenter/service/warranty-policy-new/a-product-warranty/

VP2020KIT contains everything you need to facilitate a wireless BYOD (Bring Your Own Device) conference, including 1 × VP2020 wireless presentation switch and 2 × VP200 USB-C wireless dongles. The VP2020 boasts versatile functionalities that foster meeting engagement and momentum, including 4K content transmission, multi-view presentation layouts (full screen / side-by-side), and the support for Moderation Mode and auto layout projection. Up to 8 × VP200s* can be paired with a VP2020 to let 8 individuals join the meeting and share content wirelessly by simply plugging the dongle’s USB-C connector into their laptops or mobile devices.

The bundle takes BYOD experiences to the next level with USB touchback support, allowing remote presenters to efficiently control their PCs from the touchscreen / interactive whiteboard in the room without having to go back and forth. Universal, cross-platform compatibility enables participants to interact directly with content from their USB conference devices – such as microphones, cameras, and speakers – and to host meetings on all major operating systems using their preferred video conferencing tools, including Microsoft Teams and Zoom.

Note: 2 × VP200s are included in this kit. The additional 6 × VP200s must be purchased separately.

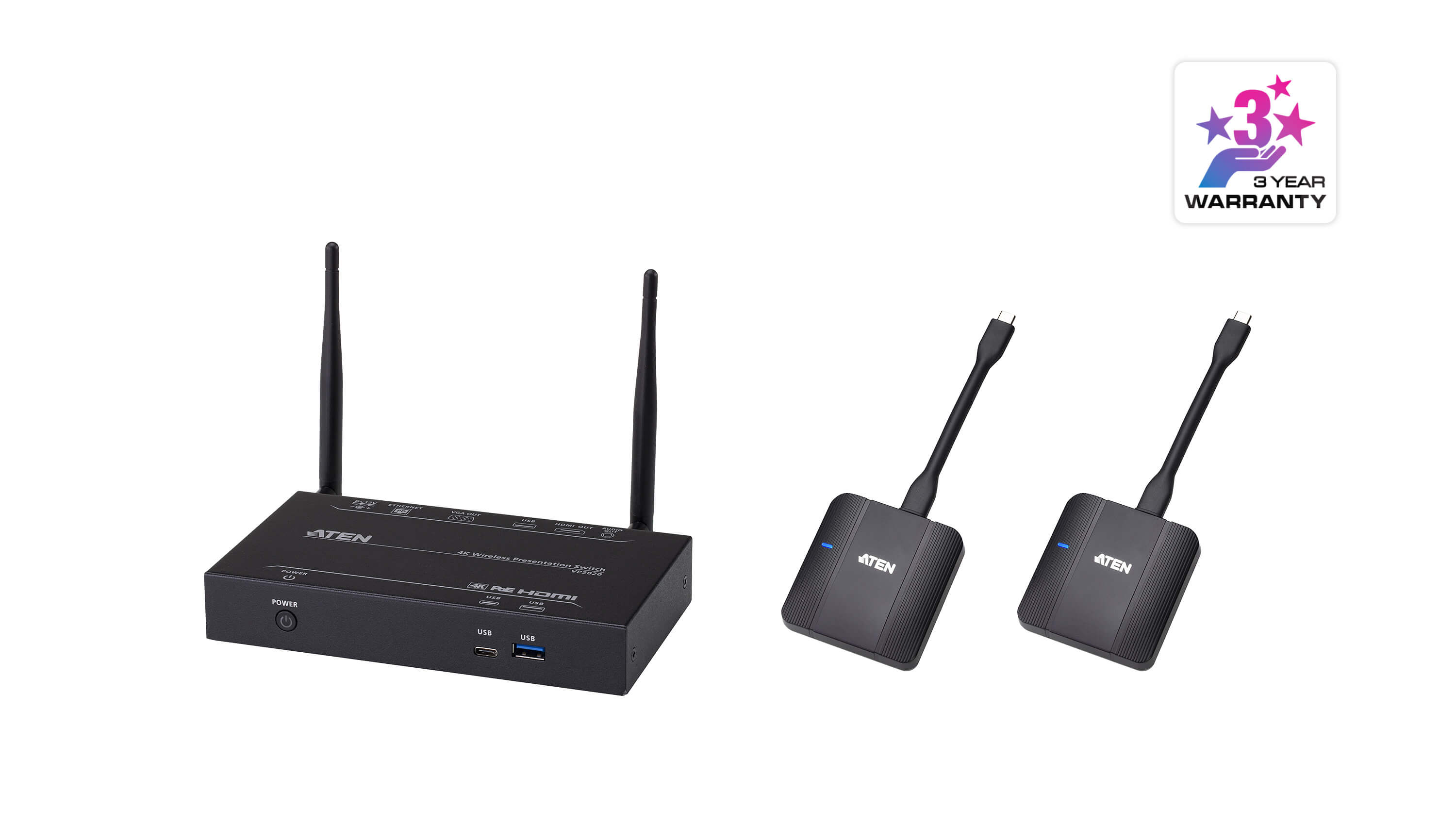

Package Contents

  • 1 x VP2020 4K Wireless Presentation Switch

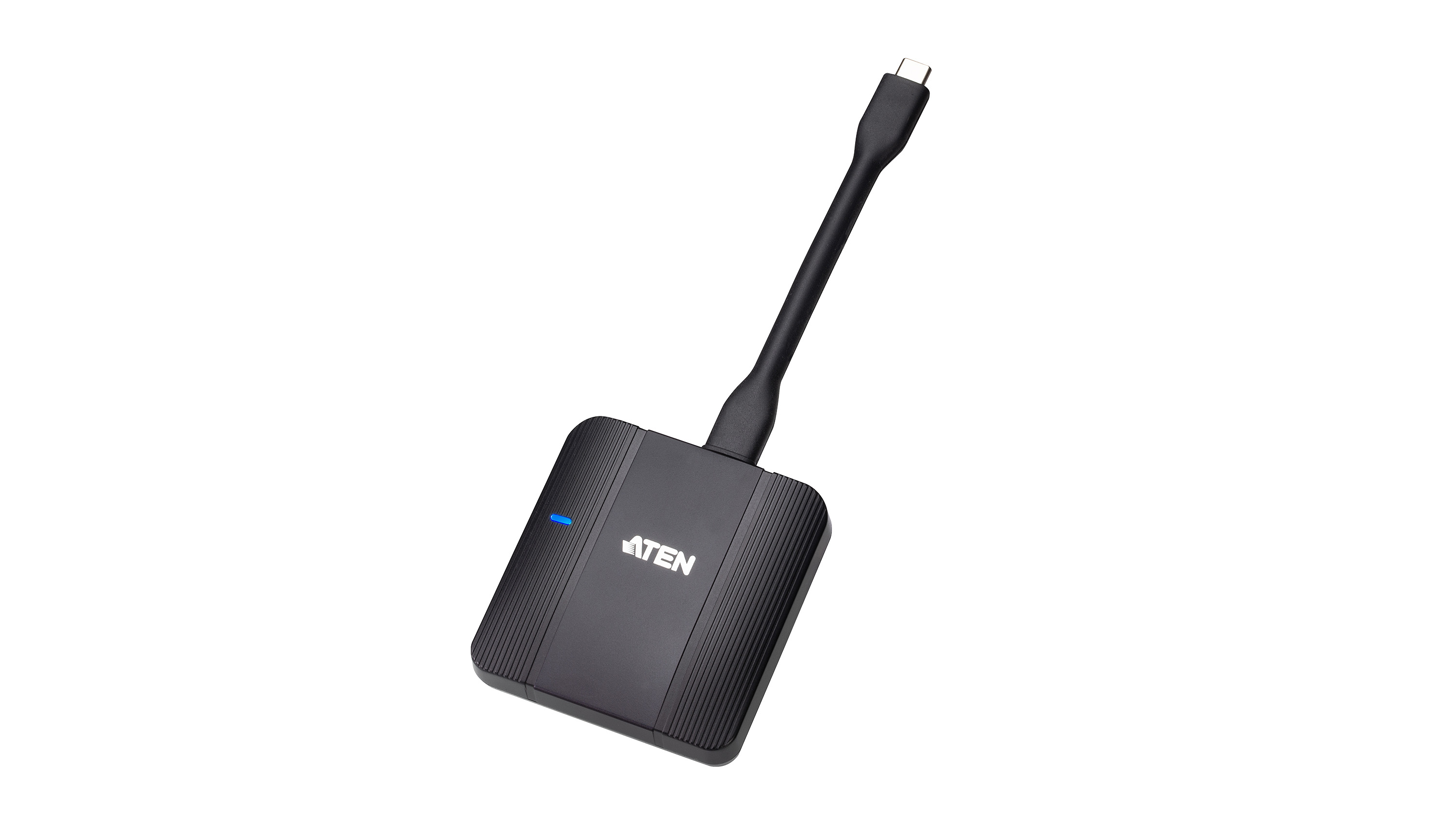

  • 2 x VP200 PresentON® Wireless Dongle for Presentations
  • 1 x Power Adapter and Power Cord
  • 2 x Wifi Antenna
  • 1 x User Instructions
  • Each kit includes 1 × VP2020 wireless presentation switch and 2 × VP200 USB-C wireless dongles
  • 1 × VP2020 can pair with up to 8 × VP200 – 8 individuals can join the meeting wirelessly by plugging in the dongle’s USB-C port to their own laptops / mobile devices
    Note: 2 × VP200s are included in this kit. The additional 6 × VP200s must be purchased separately.
  • Wireless A/V content casting and power supply via VP200's USB-C connector plugged into laptops / mobile devices
  • USB touchback – ensures seamless presentation flow directly from the in-room eWhiteboard or content interaction from users' USB devices
  • BYOD (Bring Your Own Device) – allows attendees to use their personal devices to share content
  • Supports in-room AV equipment ranging from cameras, microphones to speakers
  • Multi-view – up to 2 sources can be shared wirelessly in full screen / side-by-side layout
  • Auto layout projection – presentation layout can be switched automatically whenever a new signal is detected
  • Multiple collaboration tools – annotation, whiteboard on screen, and screen capture
  • Simultaneously outputs content at up to 4K to an HDMI display and a VGA display
  • HDMI audio de-embedding – easy integration with audio amplifiers or mixing systems
  • Power over Ethernet (PoE) – eliminates the need for an additional power adapter
  • Supports up to 8 attendees to join the meeting via LAN in the same network environment
  • OS-independent – works on Windows / macOS / Linux
  • Plug-and-play with no need to install software / drivers
FunctionVP200VP2020
Video Input
Interfaces1 x USB-CN/A
Max. Distance12cm cable length and is fixed to the unitN/A
Video Output
InterfacesN/A1 x HDMI Type A female (Black)
1 x VGA (HDB-15) Female
Max. DistanceN/AHDMI: Up to 5 m
VGA: Up to 15 m
Video
Max. Data RateAverage ~ 12 MbpsAverage ~ 12 Mbps
Max. ResolutionUp to 1080p @ 60 HzHDMI: Up to 4K @ 30 Hz
VGA: Up to 1080p
Audio
Input1 x USB-CN/A
OutputN/A1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Black)
Wireless
Authentication ProtocolWPA2-PSK using the ATEN PresentOn solution in network integration modeAP mode: WPA2-PSK
Station mode: WEP, WPA, WPA2, 802.1x EAP
Wireless Transmission ProtocolIEEE 802.11 a/g/n/acIEEE 802.11 ac
Frequency BandSwitchable dual band 2.4 GHz and 5 GHz (DFS channels not supported)Switchable dual band 2.4GHz and 5GHz (DFS channels not supported)
ReachUp to 10 m* (Line of Sight)Up to 20 m* (Line of Sight)
Connectors
Power1 x USB-C male1 x DC Jack (Black)
Console Ports1 x USB-C maleUSB 3.0: 1 x USB Type-A Female (Blue)
USB 2.0: 1 x USB Type-A Female
USB-C: 1 x USB-C Female
RJ-45 10/100/1000 PortsN/A1 x RJ-45 Ethernet port (Support POE)
Switches
PowerN/A1 x Pushbutton (LED: Blue)
Power ConsumptionDC5V:1.37WDC12V:12W
Environmental
Operating Temperature0-40°C0-40°C
Storage Temperature-10 - 70°C-20 - 60°C
Humidity20 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingPlasticMetal
Weight0.09 kg ( 0.2 lb )0.47 kg ( 1.04 lb )
Dimensions (L x W x H)6.70 x 6.90 x 1.50 cm
(2.64 x 2.72 x 0.59 in.)		17.00 x 10.40 x 2.83 cm
(6.69 x 4.09 x 1.11 in.)
Note* Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.* Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

VP2020KIT-4K-Wireless-Presentation-Switch-Kit-datasheet-en.pdf (914.28 KB)
File NameRelease Date
vp2020-vp2021-user-manual-w.pdf (3.58 MB) 2025-11-21
DescriptionVer.Release DateFile Name
Firmware Upgradev1.0.592026-02-09 vp2020-v1.0.59.zip
Firmware Upgradev1.0.562025-12-19 vp2020-v1.0.56.zip
Firmware Upgradev1.0.532025-01-21 vp2020-v1.0.53.zip
Firmware Upgradev1.0.442024-02-06 vp2020-v1.0.44.zip
Firmware Upgradev1.0.272023-02-22 vp2020_v1.0.27.zip
Firmware Upgradev1.0.262023-01-03 vp2020_v1.0.26.zip

Note : For requests regarding firmware versions older than 3 years, please contact the Technical Support team.

ОSDescriptionVer.Release DateFile Name
Apps
AndroidSoftware Upgradev1.1.202026-02-09 vp2020-vp2021-app-v1.1.20.zip
AndroidSoftware Upgradev1.1.192025-01-21 vp2020-vp2021-app-v1.1.19.zip
AndroidSoftware Upgradev1.1.152024-01-22 vp2020_vp2021_app_v1.1.15.zip
AndroidSoftware Upgradev1.1.62022-12-23 vp2020_vp2021_app_v1.1.6.zip
