4-Port Serial Expansion Box - TAA Compliant

MSRP: Quote Upon Request
  • An Ethernet-to-serial box ships with 4 bi-directional RS-232/422/485 serial ports
  • Supports Power over Ethernet (PoE) or DC power supply
  • Supports Telnet CLI (command-line interface) mode for third-party system integration

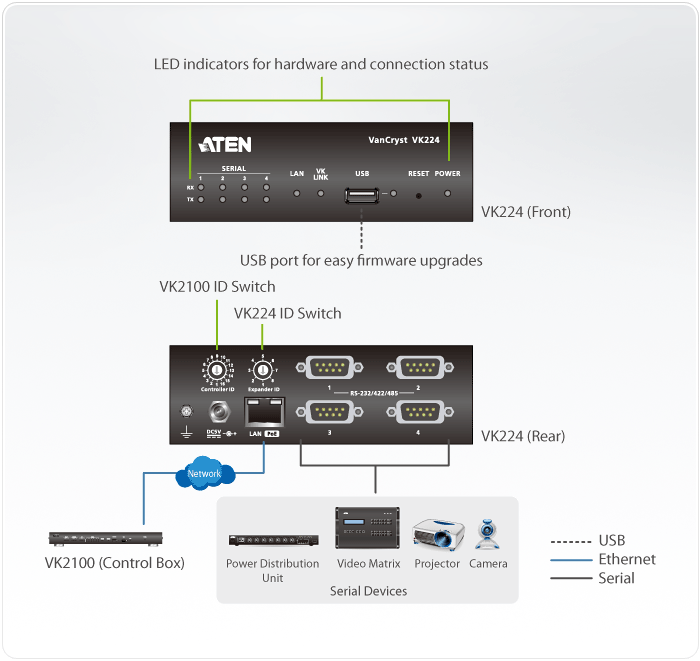

  • An expansion solution for connecting more serial devices to ATEN Control System

The VK224 provides Ethernet-to-serial connectivity with 4 bi-directional RS-232 / 422 / 485 serial ports. It allows users to remotely access serial devices from a PC or any system located anywhere. The complete Telnet CLI commands are fully integrated into users’ commercial and industrial applications.

What’s more, the VK224 serves as a flexible expansion box of the ATEN Control System, enabling users to control additional serial devices through an ATEN controller in any environments where more serial devices are required. With the advantage of Ethernet-based connection, the expansion box can be easily connected to controllers via LAN connection from a variety of locations across a network.

*The power adapter for this product is sold separately. For more information about this accessory, see Accessories.

Package Contents

  • 1x VK224 4-Port Serial Expansion Box
  • 1x Mounting Kit
  • 1x User Instructions
  • An Ethernet-to-serial box ships with 4 bi-directional RS-232/422/485 serial ports
  • Supports Power over Ethernet (PoE) or DC power supply
  • Supports Modbus protocol - enables integration with Modbus devices, including TCP, RTU and its checksum data
  • Supports Telnet CLI (command-line interface) mode for third-party system integration
  • WebUI provides VK224 system information, including firmware upgrade
  • An expansion solution for connecting more serial devices to ATEN Control System
  • Flexible deployment via Ethernet connection
  • Works with a connected ATEN controller with ID Switch through instant configuration
Serial• 4 x Programmable Bi-directional RS-232/422/485 Port
(4 x DB9 Male Connector, configurable via pin assignments);
 – Baud Rate: 300 to 115200 (default: 9600);
 – Data Bit: 8 (default) or 7;
 – Stop Bit: 1 (default) or 2;
 – Parity: None (default), Even or Odd;
 – Flow Control: None (default) RTS/CTS

Pin2: RXPin 1:RX-Pin3:D+
Pin3: TXPin 2: RX+Pin 4:D-
Pin 5: GNDPin 3: TX+Pin 5: GND*
Pin 7: RTSPin 4: TX-Note: A ground terminal connection is recommended but not required.
Pin 8: CTSPin 5: GND
Ethernet• 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
Subnet Mask:
Controller ID1 x 16-segment Switch
Expander ID1 x 8-segment Switch
Reset Button1 x Semi-recessed Pushbutton
USB1 x USB Type A
Power ConsumptionDC5V:3.8W:28BTU/h

● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Operating Temperature0 – 50°C
Storage Temperature–20 – 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
Weight0.45 kg ( 0.99 lb )
Dimensions (L x W x H)13.00 x 7.58 x 4.20 cm
(5.12 x 2.98 x 1.65 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

DescriptionVer.Release DateFile Name
Firmware Upgradev3.6.3552023-10-26 vk224-v3.6.355.zip
Firmware Upgradev3.4.3342023-03-28 vk224_v3.4.334.001.zip
Firmware Upgradev3.4.3332022-12-27 vk224_v3.4.333.001.zip
Firmware Upgradev3.1.3022021-12-02 vk224_v3.1.302.002.zip
Firmware Upgradev3.0.2952021-07-22 vk224_v3.0.295.001.zip
Firmware Upgradev3.0.2942021-05-25 vk224_v3.0.294.002.zip
Firmware Upgradev2.8.2712020-11-13 vk224_v2.8.271.zip
Firmware Upgradev2.6.2532019-12-30 vk224_v2.6.253.003.zip
Firmware Upgradev2.6.2512019-11-01 vk224_v2.6.251.001.zip
Firmware Upgradev2.2.2132019-04-22 vk224_v2.2.213.001.zip
Firmware Upgradev2.1.2042017-12-08 vk224_v2.1.204.zip
Firmware Upgradev2.0.1912016-12-06 vk224_v2.0.191.zip
Firmware Upgradev1.6.1562016-10-28 vk224_v1.6.156.zip
OSDescriptionVer.Release DateFile Name
ATEN Certified Drivers
Drivers for ATEN Control System
Search for drivers
Firmware Upgrade Tool
Firmware upgrade toolv1.2.1132021-12-21 FirmwareUpgradeTool_Setup_v1.2.113.zip
Firmware upgrade toolv1.1.1062018-01-09 FirmwareUpgradeTool_Setup_v1.1.106.zip
Firmware upgrade toolv1.1.1042017-10-18 FirmwareUpgradeTool_Setup_v1.1.104.zip
Firmware upgrade toolv1.0.0662016-12-09 FirmwareUpgradeTool_Setup_V1.0.066.zip
IP Installer & Utility
IP Installerv1.4.1322014-09-23 IPInstaller_v1.4.132.zip
AMX® Module *v1.02023-03-14 AMX-Module-for-ATEN-Control-System-v1.0.zip
Crestron® Module *v1.02023-03-14 Crestron-Module-for-ATEN-Control-System-v1.0.zip
