8-Channel Relay Expansion Box - TAA Compliant
VK248
- An Ethernet-to-relay channel box ships with 8 channels of relay output
- Supports Power over Ethernet (PoE) or DC power supply
- Supports Telnet CLI (command-line interface) mode for third-party system integration
- An expansion solution for connecting more relay channels to ATEN Control System
The VK248 provides Ethernet-to-relay channel connectivity with 8 channels of relay output. It allows users to remotely access relay devices from a PC or any system located anywhere. The complete Telnet CLI commands are fully integrated into users’ commercial and industrial applications.

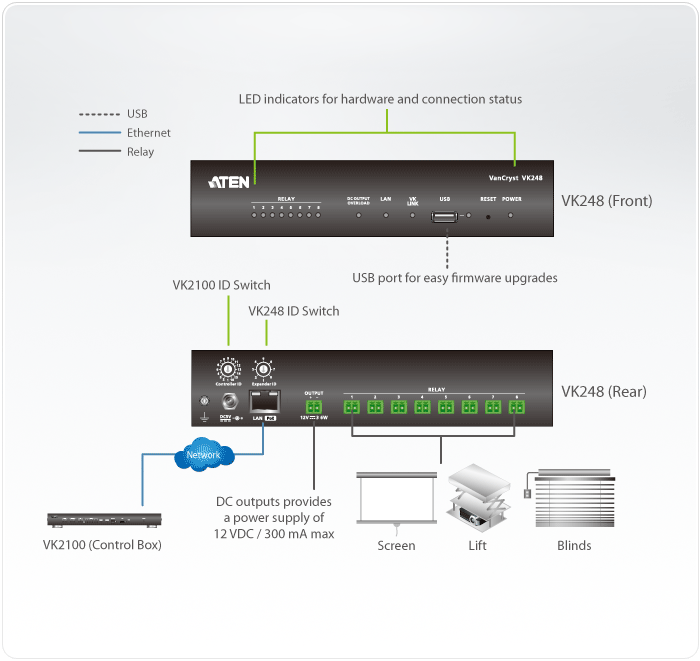

What’s more, the VK248 serves as a flexible expansion box of the ATEN Control System, enabling users to control additional equipment, such as screens, projector lifts and blinds, through an ATEN controller in any environments where more devices are required. With the advantage of Ethernet-based connection, the expansion box can be easily connected to controllers via LAN connection from a variety of locations across a network.
Accessories:
*The power adapter for this product is sold separately. For more information about this accessory, see Accessories.
Package Contents
- 1x VK248 8-Channel Relay Expansion Box
- 1x Mounting Kit
- 9x Terminal Blocks
- 1x User Instructions
- An Ethernet-to-relay channel box ships with 8 channels of relay output
- Supports Power over Ethernet (PoE) or DC power supply
- WebUI provides VK248 system information, including firmware upgrade
- Supports Telnet CLI (command-line interface) mode for third-party system integration
- An expansion solution for connecting more relay channels to ATEN Control System
- Flexible deployment via Ethernet connection
- Works with a connected ATEN controller with ID Switch through instant configuration
Interfaces | |
Relay | • 8 normally open relays (8 x 2-pole terminal block) • Contact Rating: Max 24 VDC, 2A |
Ethernet | • 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0 |
Switches | |
Controller ID | 1 x 16-segment Switch |
Expander ID | 1 x 8-segment Switch |
Reset Button | 1 x Semi-recessed Pushbutton |
USB | 1 x USB Type A (Firmware upgrade only) |
Power Consumption | DC5V:2.82W:24BTU DC48V:3.53W:27BTU |
Environmental | |
Operating Temperature | 0 – 50°C |
Storage Temperature | –20 – 60°C |
Humidity | 0 - 80% RH, Non-Condensing |
Power | |
Output | 12 VDC, 300 mA |
Physical Properties | |
Housing | Metal |
Weight | 0.65 kg ( 1.43 lb ) |
Dimensions (L x W x H) | 20.00 x 7.58 x 4.20 cm (7.87 x 2.98 x 1.65 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Datasheet
vk248_controller_ds_en.pdf (1.17 MB)User Manual
ATEN_Control_System_CLI_2022-10-13.pdf (73.05 KB) vk0100-vk0200-vk108us-vk112EU-vk1100-vk1100a-vk1200-vk2100-vk2100a-vk2200-vk224-vk236-vk248-vk258-vk330-vk6000_um_w_2023-02-16.pdf (17.12 MB)Quick Start Guides
vk248_controller_qsg.pdf (1.42 MB)CAD Drawing
VK248-ASM-V02_WEB.pdf (62.84 KB)Firmware
Description | Ver. | Release Date | File Name |
Firmware Upgrade | v3.4.334 | 2023-03-28 | vk248_v3.4.334.001.zip |
Firmware Upgrade | v3.4.333 | 2022-12-27 | vk248_v3.4.333.001.zip |
Firmware Upgrade | v3.1.302 | 2021-12-02 | vk248_v3.1.302.002.zip |
Firmware Upgrade | v3.0.294 | 2021-05-25 | vk248_v3.0.294.002.zip |
Firmware Upgrade | v2.8.271 | 2020-11-13 | vk248_v2.8.271.zip |
Firmware Upgrade | v2.6.254 | 2020-02-12 | vk248_v2.6.254.001.zip |
Firmware Upgrade | v2.6.253 | 2020-01-17 | vk248_v2.6.253.004.zip |
Firmware Upgrade | v2.2.213 | 2019-04-22 | vk248_v2.2.213.001.zip |
Firmware Upgrade | v2.1.204 | 2017-12-08 | vk248_v2.1.204.zip |
Firmware Upgrade | v2.0.191 | 2016-12-06 | vk248_v2.0.191.zip |
Software & Drivers
OS | Description | Ver. | Release Date | File Name |
ATEN Certified Drivers | ||||
Drivers for ATEN Control System |
Search for drivers | |||
Firmware Upgrade Tool | ||||
Firmware upgrade tool | v1.2.113 | 2021-12-21 | FirmwareUpgradeTool_Setup_v1.2.113.zip | |
Firmware upgrade tool | v1.1.106 | 2018-01-09 | FirmwareUpgradeTool_Setup_v1.1.106.zip | |
Firmware upgrade tool | v1.1.104 | 2017-10-18 | FirmwareUpgradeTool_Setup_v1.1.104.zip | |
Firmware upgrade tool | v1.0.066 | 2016-12-09 | FirmwareUpgradeTool_Setup_V1.0.066.zip | |
IP Installer & Utility | ||||
IP Installer | v1.4.132 | 2014-09-23 | IPInstaller_v1.4.132.zip | |
AMX Module | v1.0 | 2023-03-14 | AMX-Module-for-ATEN-Control-System-v1.0.zip | |
Crestron Module | v1.0 | 2023-03-14 | Crestron-Module-for-ATEN-Control-System-v1.0.zip |
