ATEN NIAP-Certified Secure KVM Solutions
Trusted Multi-Layer Security
ATEN Secure KVM Switches provide high-assurance desktop protection by isolating sensitive data and controlling access across multiple networks. As NIAP-certified KVM solutions—and the industry’s first secure KVM switches with 5K video support—they deliver top-tier security without sacrificing performance. Designed for industries that manage sensitive, confidential, or proprietary information—such as government and military agencies, healthcare organizations, financial institutions, and other high-security sectors—they offer features like data isolation, multi-layer security, and flexible administrative controls to help organizations maintain airtight protection in air-gapped and mission-critical environments.
NIAP Common Criteria Compliant
ATEN Secure KVM Switches are compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device), assuring maximum information security by isolating computer sources and peripherals while sharing a single set of keyboard, mouse, monitor, speakers, and common access card (CAC) reader between connected computers of various security classifications.
Stringent Security
ATEN Secure KVM Switches provide key protections such as isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtering and management, and an always-on, tamper-proof design that keeps sensitive assets isolated while delivering advanced security and a user-friendly experience for instant secure deployment.
Multi-layer Security
- Always-on chassis intrusion detection
renders the ATEN Secure KVM Switch series inoperable if physical tampering is detected
- Tamper-evident labels
provide a visual indication of any attempt to access the ATEN Secure KVM Switch’s internal components
- Non-reprogrammable firmware
prevents reprogramming of the ATEN Secure KVM Switch's firmware
- Restricted peripheral connectivity
ensures that connections from non-authorized HIDs (Human Interface Devices), video sources, or authentication devices are rejected
- Secure port switching
features port selection via pushbuttons and Remote Port Selector (RPS) to enhance security
- Clear LED indications
display peripheral filtering and KVM security status
- Configurable Port LED color
allows each Port LED indicator to be assigned a selectable color that visually represents specific priority or security classifications for rapid status assessment
- Compact size, rugged metal enclosure
- Strict audio filtration
protects against audio leakage
renders the ATEN Secure KVM Switch series inoperable if physical tampering is detected
provide a visual indication of any attempt to access the ATEN Secure KVM Switch’s internal components
prevents reprogramming of the ATEN Secure KVM Switch's firmware
ensures that connections from non-authorized HIDs (Human Interface Devices), video sources, or authentication devices are rejected
features port selection via pushbuttons and Remote Port Selector (RPS) to enhance security
display peripheral filtering and KVM security status
allows each Port LED indicator to be assigned a selectable color that visually represents specific priority or security classifications for rapid status assessment
protects against audio leakage
Data Channel Isolation and Unidirectional Data Flow
- True data path isolation prevents data transfers between computers
- The ATEN Secure KVM Switches control and isolate data flow between the console devices and connected computers
- Unidirectional data flow between console devices and the selected computer is ensured
- Only analog audio (speakers) is supported to enforce stringent security
User Data Protection
- Keyboard and mouse data of the KVM switch is automatically deleted after transmission and purged when the KVM port focus changes.
Security Management
- Supports administrative configuration of CAC Port filtering to accept or reject specific USB authentication devices
- Supports administrative configuration of keyboard/mouse port filtering to reject specific USB HID devices
- Provides administrative functions for authorized administrators to audit KVM log data
- Enables/disables CAC function by port
Superior Video Quality
- 5K video quality
supports video output resolutions of up to 5120 × 2880 @ 60 Hz, 5120 × 2160 @ 60 Hz, 5120 × 1440 @ 60 Hz / 120 Hz / 144 Hz, and 3840 × 2160 @ 60 Hz / 120 Hz / 144 Hz
- Dual Display
allows video output to be displayed on two monitors simultaneously
- Video DynaSync™
an exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources
supports video output resolutions of up to 5120 × 2880 @ 60 Hz, 5120 × 2160 @ 60 Hz, 5120 × 1440 @ 60 Hz / 120 Hz / 144 Hz, and 3840 × 2160 @ 60 Hz / 120 Hz / 144 Hz
allows video output to be displayed on two monitors simultaneously
an exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources

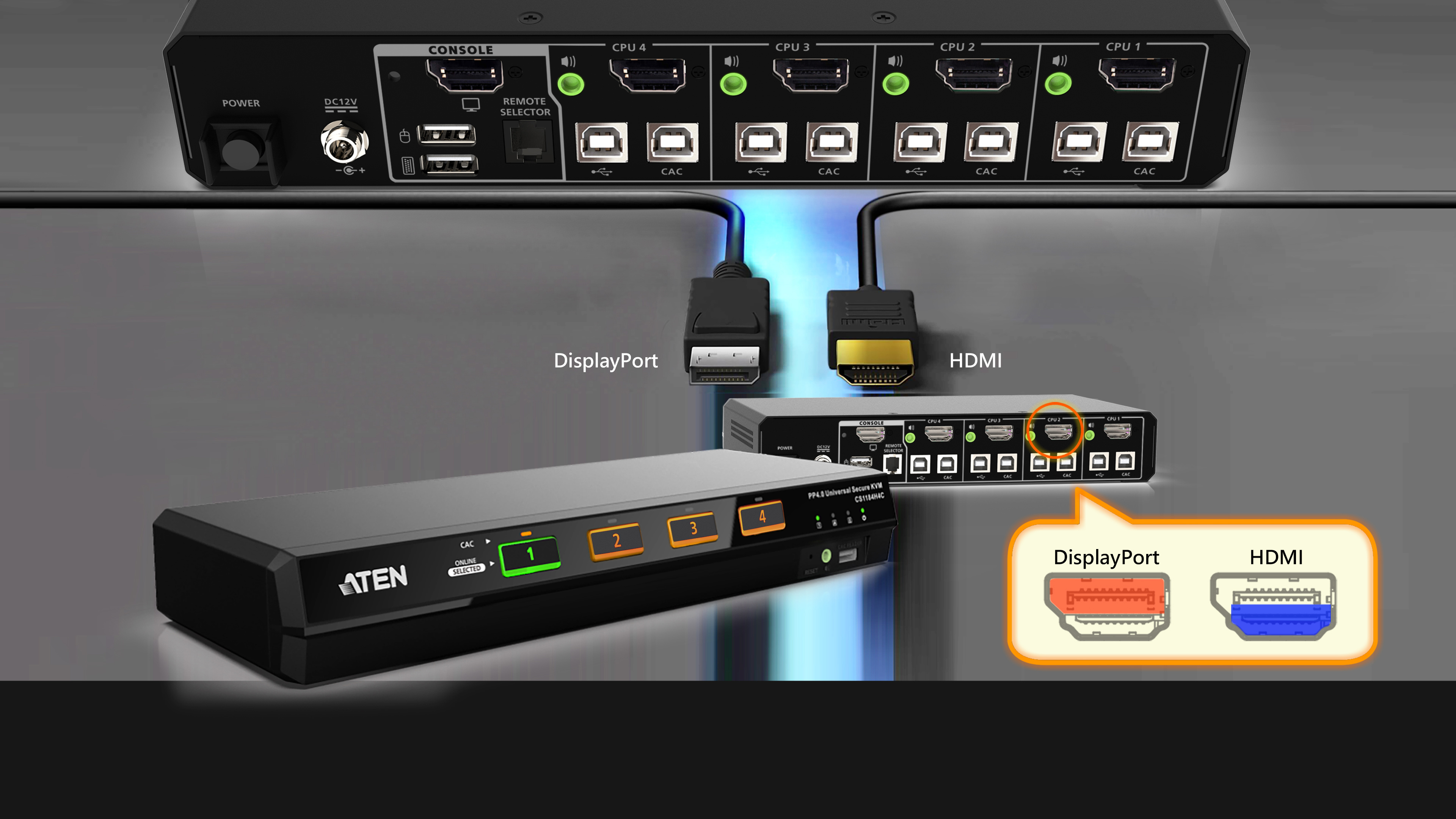

HDMI/DP Combo Port for Secure KVM Connectivity
The 2-in-1 HDMI/DisplayPort Combo Port supports flexible video configurations at both the console and computer ends, allowing mixed or matched output types while ensuring secure, stable connections.
Secure KVM Switch Lineup—Feature Comparison
Feature / Series | DVI / HDMI / DisplayPort | Universal Secure KVM Switches |
|---|---|---|
Superior Video Quality | Up to 3840 x 2160 @ 60 Hz | Up to 5120 x 2880 @ 60 Hz, 5120 x 2160 @ 60 Hz, 5120 x 1440 @ 144 Hz, 3840 x 2160 @ 144 Hz |
Combo Video Port | N/A | |
Configurable Port LED Color | N/A | |
Secure Port Selection | Pushbutton, Remote Port Selector (RPS) | Pushbutton, Remote Port Selector (RPS) |
Configurable Device Filtration | ||
LED Indication for | ||
Strict Audio Filtration | ||
Non-CAC Model Availability |
Applications
ATEN Secure KVM Switches provide secure desktop access to computers at multiple classification levels.
Government & Military
Extra cyber security for government and military office desktop applications
Medical & Healthcare
Switching between sensitive (private patient data) and non-sensitive (general insurance info, etc.) platforms
Finance & Banking
Switching between classified and non-classified computers (Network Separation)

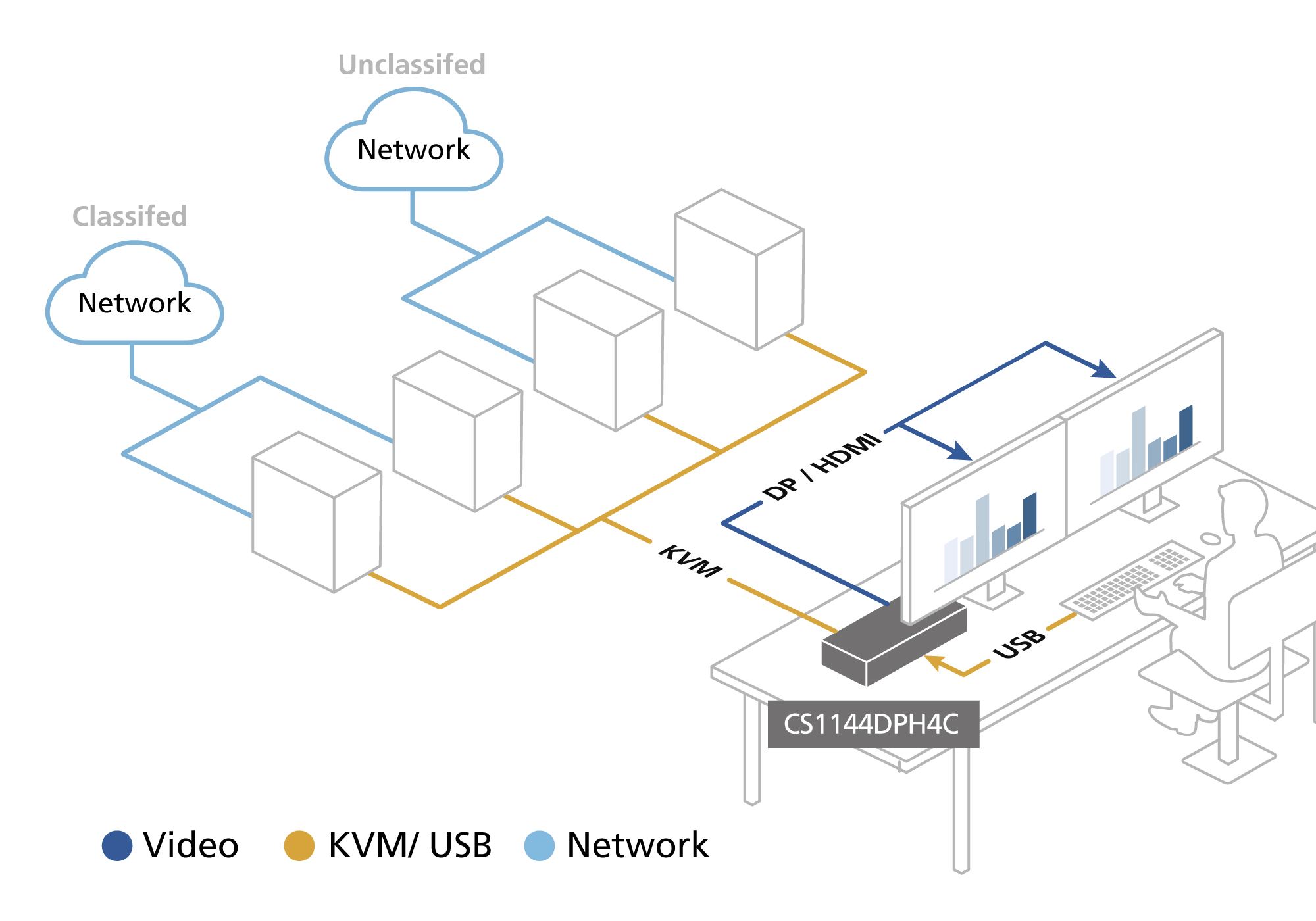

Scenario Setup
All Models at a Glance
| Universal Secure KVM Switches | |||||
|---|---|---|---|---|---|
| Console / Computer Video Interface | CAC |  2-Port |  4-Port | ||
| Single Head | Dual Head | Single Head | Dual Head | ||
| DisplayPort or HDMI / DisplayPort or HDMI | CS1182DPH4C | CS1142DPH4C | CS1184DPH4C | CS1144DPH4C | |
| CS1182DPH4 | CS1142DPH4 | CS1184DPH4 | CS1144DPH4 | ||
| DVI / HDMI / DisplayPort Secure KVM Switches | |||||||
|---|---|---|---|---|---|---|---|
| Console / Computer Video Interface | CAC |  2-Port |  4-Port |  8-Port | |||
| Single Head | Dual Head | Single Head | Dual Head | Single Head | Dual Head | ||
| DisplayPort / DisplayPort | CS1182DP4C | CS1142DP4C | CS1184DP4C | CS1144DP4C | CS1188DP4C | CS1148DP4C | |
| CS1182DP4 | CS1142DP4 | CS1184DP4 | CS1144DP4 | CS1188DP4 | CS1148DP4 | ||
| HDMI / HDMI | CS1182H4C | CS1142H4C | CS1184H4C | CS1144H4C | |||
| CS1182H4 | CS1142H4 | CS1184H4 | CS1144H4 | ||||
| DVI / DVI | CS1182D4C | CS1142D4C | CS1184D4C | CS1144D4C | CS1188D4C | CS1148D4C | |
| CS1182D4 | CS1142D4 | CS1184D4 | CS1144D4 | CS1188D4 | CS1148D4 | ||
