5 m High Speed True 4K HDMI Cable with Ethernet


2L-7D05H-1
MSRP: Quote Upon Request
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
  • Superior video quality – True 4K (4096 x 2160 @ 60Hz; 3840 x 2160 @ 60Hz 4:4:4)
  • Gold-plated connectors for reliable transmissions
  • Available in lengths from 1 to 5 m
10-4K
40-4K (True)
HDMI

ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 1 to 5 meters with resolutions up to True 4K (4096 x 2160 @60Hz 4:4:4).

Package Contents

  • 1x 2L-7D05H-1 5m High Speed True 4K HDMI Cable with Ethernet
  • Superior video quality - True 4K (4096 x 2160 @ 60Hz; 3840 x 2160 @ 60Hz 4:4:4)
  • HDMI Ethernet Channel functionality: additional dedicated data channel supports networking*
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
  • Gold-plated connectors for reliable transmissions
  • Available in lengths from 1 to 5 m
  • RoHS compliant

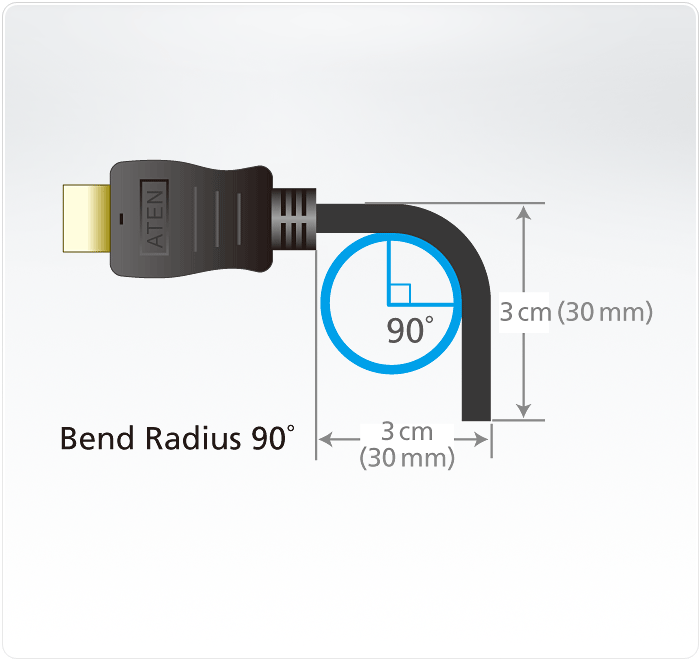

  • Bend Radius 90°**
    Note:
    * Feature only available if linked devices are HDMI Ethernet Channel enabled
    ** Swings 100 times between angles of +/- 90 degrees, at a frequency of 13 times per minute
Max. Video Resolution4096x2160@60Hz
Physical Properties
Cable Length5M
Cable ColorBlack
Cable Outer Dimension8.0 ± 0.20mm
Conductor Gauge26AWG
Conductor MaterialTinned Copper
Connector PlatingGold
Connector TypeHDMI (19pin) Male to Male
Cable Shield TypeAluminum Foil
Cable Jacket TypePVC
Environmental
Operating Temperature80°C
RatingUL VW-1 (Flame rate), CSA
