4-Port USB VGA/Audio Cable KVM Switch (0.9m, 1.2m)

  • Superior video quality – up to 2048 x 1536; DDC2B
  • Computer Selection via hotkey
  • Multiplatform support - Windows, Linux, Mac, Sun
  • Built-in 0.9/1.2 m cables and bus-powered design
The CS64US takes a giant step forward from prior cable KVM models in the Petite series, by offering built-in cables, USB peripheral sharing, and a firmware upgrade function that allows you to keep up with latest available versions.
Furthermore, the CS64US features enhanced Video DynaSync™ technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. The CS64US also offers multiplatform support and computer selection via hotkeys to provide the ultimate in desktop convenience.

Package Contents

  • 1x 4-Port CS64US USB KVM Switch
  • 2x Hotkey Stickers
  • 1x User Instructions

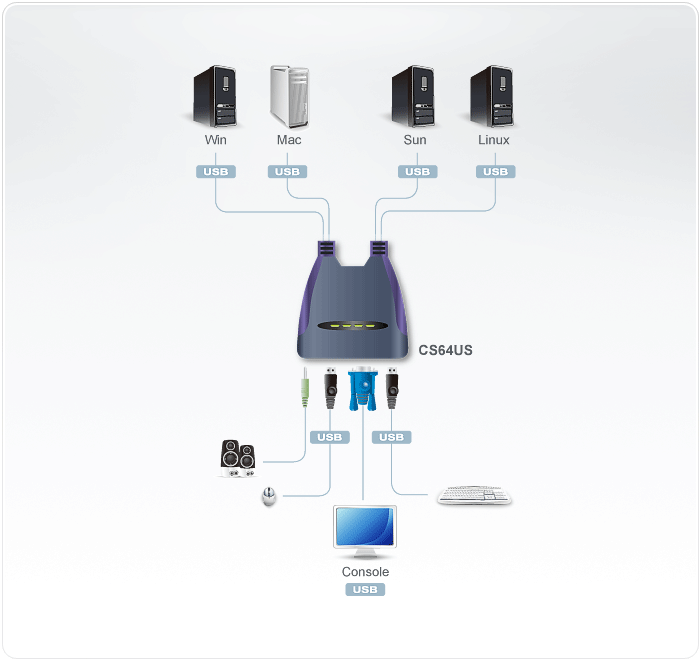

  • One USB console controls four USB computers
  • Compact design, built-in 0.9/1.2 m cables
  • Hotkey selection for OS and keyboard language
  • Computer Selection via hotkey
  • Multiplatform support - Windows, Linux, Mac, Sun
  • Video DynaSync ™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
  • Supports multifunction and wireless keyboards and mice NEW!
  • All-in-one design
  • With speaker support
  • Superior video quality – up to 2048 x 1536; DDC2B
  • Auto Scan function to monitor computer operation
  • Bus-Powered
  • Sun/Mac keyboard support and emulation*
  • Firmware upgradable NEW!

    * 1. PC keyboard combinations emulate Sun/Mac keyboards
    2. Sun/Mac keyboards only work with their own computers
Computer Connections4
Port SelectionHotkey
Console Ports1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
KVM Ports4 x HDB-15 Male (Blue)
4 x USB Type A Male
4 x 3.5mm Audio Jack Male (Green)
Selected4 (Green)
Cable Length
Computer2 x 0.9 m; 2 x 1.2 m
Keyboard / MouseUSB
Video2048 x 1536; DDC2B
Scan Interval1-99 secs. (default 5 secs.)
Power ConsumptionDC5V:0.9W:8BTU
Operating Temperature0 - 50°C
Storage Temperature-20 - 60°C
Humidity0-80% RH, Non-condensing
Physical Properties
Weight0.58 kg ( 1.28 lb )
Dimensions (L x W x H)9.41 x 9.72 x 2.60 cm
(3.7 x 3.83 x 1.02 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Desc.Ver.Release DateFile Name
Firmware Upgradev1.2.2112019-05-27 cs64us_v1.2.111.zip
Firmware Upgradev1.1.1082017-02-07 cs64us_v1.1.108.zip
Firmware Upgradev1.1.1072015-12-17 cs64us_v1.1.107.zip
Firmware Upgradev1.1.1052015-10-06 cs64us_v1.1.105.zip
Firmware Upgradev1.1.1042014-08-27 cs64us_v1.1.104.zip
Firmware Upgradev1.1.1032012-07-04 cs64us_v1.1.103.zip
Firmware Upgradev1.1.1022011-10-12 cs64us_v1.1.102.zip
Firmware Upgradev1.1.1012010-09-15 cs64us_v1.1.101.zip
Firmware Upgradev1.0.0762010-03-08 cs64us_v1.0.076.zip
Firmware Upgradev1.0.0752010-02-03 cs64us_v1.0.075.zip
Please visit our partner center (e-service) and register KE device. Then, you can free download Matrix Manager Lite.
