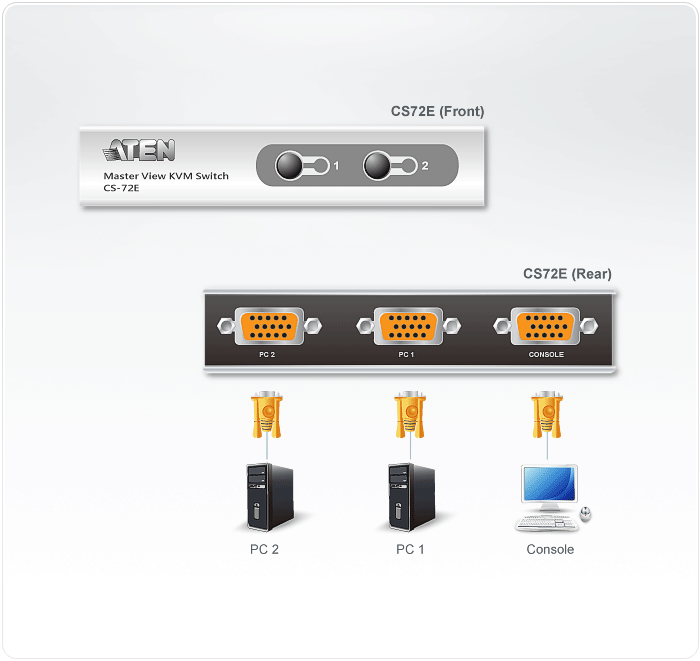

The KVM (Keyboard, Video, Mouse) switch is a control unit that allows access to two computers from a single console (keyboard, monitor, and mouse). With its custom designed connectors, the significantly reduces the number of ports required for a 2 port KVM switch. The design features a custom SPHD-15 male connector for the keyboard, video, and mouse, and SPHD-15 female connectors for the cables that connect the switch to the computers.
1x 2 Port PS/2 KVM Switch
2x Custom KVM Cable (VGA, PS/2; 1.2m/4ft)
1x Console Adapter Cable (50cm)
1x Quick Start Guide
1x User Manual
One PS/2 console controls 2 computers.
Compact, modern case for convenient attractive placement.
Custom connector layout.
Power on detection - automatically switches to the first powered on port.
Computer selection via front panel pushbuttons and hotkeys.
Superior video quality - up to 2048 x 1536; DDC2B.
Supports Microsoft IntelliMouse and the scrolling wheel on most mice.
Auto Scan function to monitor computer operation.
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX and FreeBSD
2-Port PS/2 KVM Switch
1 x SPHD-15 Male (Yellow)
2 x SPHD-15 Female (Yellow)
1 x DC Jack
2 x Pushbutton
Keyboard / Mouse
2048 x 1536 @ 60Hz; DDC2B
0~80% RH, Non-condensing
0.32 kg ( 0.7 lb )
Dimensions (L x W x H)
12.50 x 8.15 x 2.50 cm (4.92 x 3.21 x 0.98 in.)
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
