USB DVI-I Dual Display KVM Over IP Extender
DiscontinuedKE6940
- Superior video quality – up to 1920 x 1200 @ 60 Hz; 24-bit color depth
- Flexible connections - allows multiple extender and matrix conections for Multi-Display installations and Video Wall applcations
- Supports Digital and Analog video output with 2 video output as independent Channel
- Push and Pull - share content instantly by just one click
ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new Altusen™KE6940 DVI KVM Over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.
Utilizing expertise in Over IP KVM solutions, the KE6940 series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet. The KE6940 Dual View Extender supports two DVI displays at each end, allowing the video output to display on two monitors.

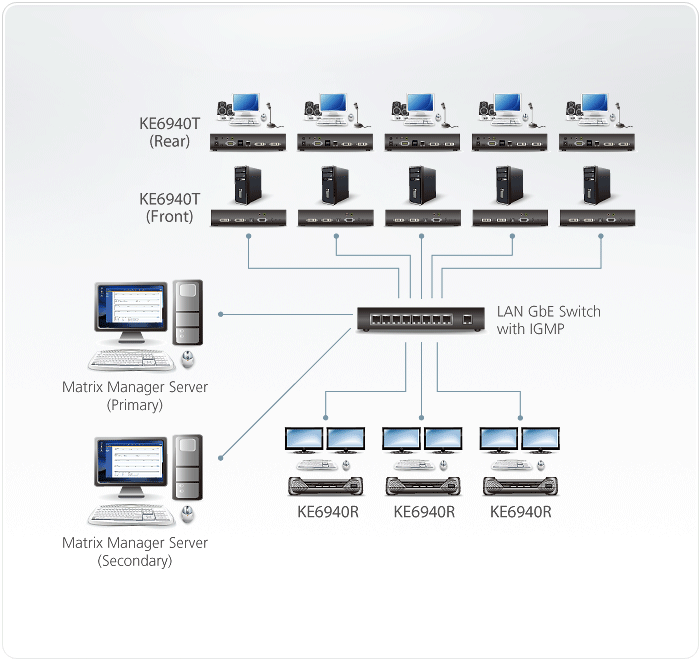

The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e cable that allows point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location - away from the keyboard, mouse and display in use. As a Matrix Extender it can connect single/multiple: computers-to-consoles in several ways: one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode), or many-to-many (Matrix mode).
The Matrix Manager® software provides advanced features for username/password authentication, autodetection of all KE6940 devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES-128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security. With an OSD, RS-232 support, and Auto MDIX, the KE6940 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.
Note:
For the latest list of compatible network switches, please visit: ATEN Support Center for more information.
Package Contents
- 1x KE6940T DVI KVM Over IP Extender (Transmitter)
- 1x KE6940R DVI KVM Over IP Extender (Receiver)
- 2x Power Adapters
- 1x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
- 1x DVI-D Cable (1.8m/6ft)
- 1x Foot Pad Set (4 pcs.) for KE6400T
- 1x Mounting Kit for KE6940T
- 1x User Instruction
- ATEN Matrix Link – allows you instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
- Boundless Switching – simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
- Remotely access computers on your KVM installation via intranet
- Dual console operation – control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
- RS-232 serial ports – allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
- Superior video quality – up to 1920 x 1200 @ 60 Hz; 24-bit color depth
- Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
- OSD (On Screen Display) on the Receiver configures both units
- Remote login security
- DVI digital and analog monitor support
- Built-in 8KV/15KV ESD protection and 2KV surge protection
- Supports stereo speakers and stereo microphone
- Auto-MDIX - automatically detects cable type
- Supports widescreen formats
- Support High-Quality Video streaming
- High speed USB Storage Transmission support
Hot pluggable - Rack Mountable
- Upgradeable firmware
- An industrial-grade power adapter included – supports operating temperature of 0°C - 50°C to ensure durability and adaptability under harsh environmental conditions
Function | KE6940R | KE6940T |
Power Consumption | DC5V:9.53W:70BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. | DC5V:8.91W:42BTU Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental | ||
Humidity | 0–95% RH, Non-condensing | 0–95% RH, Non-condensing |
Operating Temperature | 0–50°C | 0–50°C |
Storage Temperature | -20–60°C | -20–60°C |
Physical Properties | ||
Housing | Metal | Metal |
Weight | 1.25 kg ( 2.75 lb ) | 1.15 kg ( 2.53 lb ) |
Dimensions (L x W x H) | 22.75 x 17.16 x 5.48 cm (8.96 x 6.76 x 2.16 in.) | 21.50 x 16.29 x 4.18 cm (8.46 x 6.41 x 1.65 in.) |
Connectors | ||
USB Port | 2 x USB Type A Female (White) | N/A |
Console Ports | 2 x USB Type A Female (White) 2 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black) | 2 x USB Type A Female (White) 2 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black) |
KVM Ports | N/A | 1 x USB Type B Female (White) 2 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Female (Black) |
Power | 1 x DC Jack (Black) | 1 x DC Jack (Black) |
LAN Ports | 1 x RJ-45 (Black) | 1 x RJ-45 (Black) |
Switches | ||
OSD | 1 x Pushbutton | N/A |
Video | 1 x Pushbutton | N/A |
Graphics | 1 x Pushbutton | N/A |
Reset | 1 x Semi-recessed Pushbutton | 1 x Semi-recessed Pushbutton |
LEDs | ||
10/100/1000 Mbps | 1 (Green / Orange) | 1 (Green / Orange) |
Power | 1 (Blue) | 1 (Blue) |
Local | 1 (Green) | 1 (Green) |
Remote | 1 (Green) | 1 (Green) |
Emulation | ||
Keyboard / Mouse | USB | USB |
Video Resolution | Up to 1920 x 1200 @ 60Hz | Up to 1920 x 1200 @ 60Hz |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Success stories
Notifications
Please visit our partner center(e-service) and register KE device. Then, you can free download Matrix Manager Lite. |
User Manual
Quick Start Guides
ke6900_6940_kvm_extender_qsg.pdf (8.47 MB)CAD Drawing
KE6940-ASM-V02_WEB.pdf (135.33 KB)Firmware
Desc. | Ver. | Release Date | File Name |
Firmware Upgrade | v2.2.219 | 2024-05-08 | ke6900-ke6940-v2.2.219.zip |
Firmware Upgrade | v2.2.218 | 2024-01-29 | ke6900-ke6940-v2.2.218.zip |
Firmware Upgrade | v2.2.216 | 2022-12-27 | ke6900_ke6940_v2.2.216.zip |
Firmware Upgrade | v2.2.215 | 2022-04-28 | ke6900_ke6940_v2.2.215.zip |
Firmware Upgrade | v2.2.214 | 2022-03-22 | ke6900_ke6940_v2.2.214.zip |
Firmware Upgrade | v2.2.213 | 2021-08-19 | ke6900_ke6940_v2.2.213.zip |
Firmware Upgrade | v2.2.212 | 2021-03-16 | ke6900_ke6940_v2.2.212.zip |
Firmware Upgrade | v2.1.205 | 2020-02-12 | ke6900_ke6940_v2.1.205.zip |
Firmware Upgrade | v2.1.204 | 2020-02-04 | ke6900_ke6940_v2.1.204.zip |
Firmware Upgrade | v2.1.201 | 2019-03-27 | ke6900_ke6940_v2.1.201.zip |
Firmware Upgrade | v2.0.199 | 2019-02-11 | ke6900_ke6940_v2.0.199.zip |
Firmware Upgrade | v2.0.198 | 2018-10-31 | ke6900_ke6940_v2.0.198.zip |
Firmware Upgrade | v2.0.195 | 2018-03-15 | ke6900_ke6940_v2.0.195.zip |
Firmware Upgrade | v2.0.193 | 2017-11-23 | ke6900_ke6940_v2.0.193.zip |
Firmware Upgrade | v2.0.191 | 2017-08-31 | ke6900_ke6940_v2.0.191 .zip |
Firmware Upgrade | v1.4.134 | 2016-04-20 | ke6900_ke6940_v1.4.134.zip |
Firmware Upgrade | v1.4.132 | 2015-11-12 | ke6900_ke6940_v1.4.132.zip |
Firmware Upgrade | v1.3.123 | 2015-02-11 | ke6900_ke6940_v1.3.123.zip |
Firmware Upgrade | v1.3.122 | 2015-01-09 | ke6900_ke6940_v1.3.122.zip |
Firmware Upgrade | v1.2.111 | 2014-08-18 | ke6900_ke6940_v1.2.111.zip |
Software & Drivers
OS | Desc. | Ver. | Release Date | File Name |
IP Installer & Utility | ||||
IP Installer | v1.4.134 | 2018-03-22 | IPInstaller_v1.4.134.zip | |
IP Installer | v1.4.132 | 2014-09-23 | IPInstaller_v1.4.132.zip |
