HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)


VE812
:
  • Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
  • HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Long distance transmission - up to 100m
4K
HDBaseT
HDMI

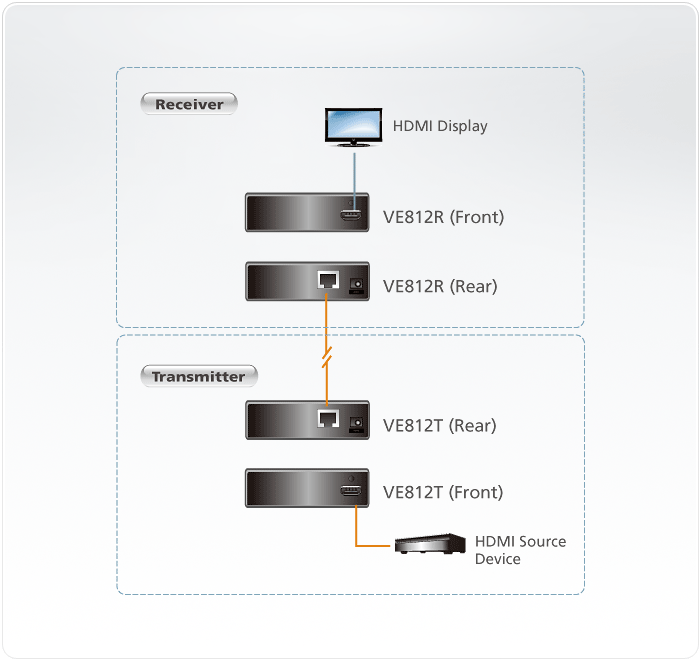

The VE812 HDMI HDBaseT Extender enables an HDMI display to be located up to 100 meters away from the source device. It can be conveniently extended using only one Cat 5e cable, which is cost-effective.

The VE812 supports HDMI (3D, Deep Color), Ultra HD (4k x 2k), and is HDCP compatible. Furthermore, the remote EDID pass-through ensures optimum video quality for any HDMI display.

The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.

Package Contents

  • 1x VE812T HDMI HDBaseT Transmitter
  • 1x VE812R HDMI HDBaseT Receiver
  • 2x Power Adapters
  • 1x Mounting Kit
  • 1x User Instructions
  • Extends the distance between HDMI source and HDMI display
  • Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
  • HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
  • Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
  • Long distance transmission - up to 100m
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Supports up to 340MHz bandwidth for high performance video
  • Supports Dolby True HD and DTS HD Master Audio
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
FunctionVE812RVE812T
Video Input
InterfacesN/A1 x HDMI Type A Female (Black)
ImpedanceN/A100 Ω
Max. DistanceN/A3 m
Video Output
Interfaces1 x HDMI Type A Female (Black)N/A
Impedance100 ΩN/A
Max. Distance3 mN/A
Video
Max. Data Rate10.2 Gbps (3.4 Gbps Per Lane)10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel ClockUp to 340 MHzUp to 340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceUp to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
InputN/A1 x HDMI Type A Female (Black)
Output1 x HDMI Type A Female (Black)N/A
Connectors
Power1 x DC Jack1 x DC Jack
Power ConsumptionDC5.3V:5.06W:24BTUDC5.3V:2.22W:10BTU
Environmental
Operating Temperature0 - 50°C0 - 50°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.41 kg ( 0.9 lb )0.40 kg ( 0.88 lb )
Dimensions (L x W x H)14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)
14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)
Carton Lot5 pcs5 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
