HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)


VE814A
  • Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
  • Superior video quality:
    • 4K up to 100 m
    • 1080p up to 150 m when in HDBaseT Long Reach Mode
  • Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
4K
HDBaseT
HDMI
ROHS
Weee

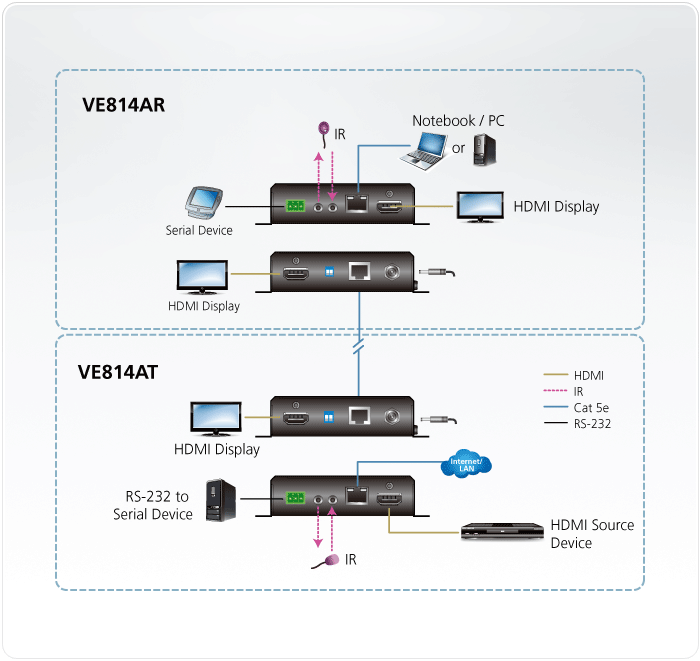

ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.

The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.

Package Contents

  • 1x VE814AT Transmitter
  • 1x VE814AR Receiver
  • 1x IR Transmitter Cable
  • 1x IR Receiver Cable
  • 2x RS-232 Terminal Blocks
  • 2x Power Adapters
  • 1x User Instructions
  • Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
  • Superior video quality:
    • 4K up to 100 m
    • 1080p up to 150 m when in HDBaseT Long Reach Mode
  • Extends Ethernet communication using the Ethernet pass-through port
  • Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
  • ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
  • RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Supports wide screen format
  • Built-in 8 kV/15 kV ESD protection
  • Plug-and-play
  • Rack-mountable


FunctionVE814ARVE814AT
Video Input
InterfacesN/A1 x HDMI Type A Female (Black)
ImpedanceN/A100 Ώ
Max. DistanceN/A1.8 m
Video Output
Interfaces2 x HDMI Type A Female (Black)1 x HDMI Type A Female (Black)
Impedance100 Ώ100 Ώ
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceUp to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
InputN/A1 x HDMI Type A Female (Black)
Output2 x HDMI Type A Female (Black)1 x HDMI Type A Female (Black)
Connectors
Unit To Unit1 x RJ-45 Female1 x RJ-45 Female
Power1 x DC Jack (Black) with locking1 x DC Jack (Black) with locking
Control
RS-232Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR2 x Mini Stereo Jack Female (Black)2 x Mini Stereo Jack Female (Black)
Ethernet1 x RJ-45 Female1 x RJ-45 Female
Switches
Long Reach Mode Switch1 x Slide Switch - ON/OFF1 x Slide Switch - ON/OFF
Firmware Upgrade1 x Slide Switch - ON/OFF1 x Slide Switch - ON/OFF
Power ConsumptionDC5V:5.09W:24DC5V:7.87W:37
Environmental
Operating Temperature0 - 40°C0 - 40°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.47 kg ( 1.04 lb )0.45 kg ( 0.99 lb )
Dimensions (L x W x H) with bracket14.02 x 12.30 x 3.00 cm
(5.52 x 4.84 x 1.18 in.)
14.02 x 12.30 x 3.00 cm
(5.52 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
