16 x 16 Modular Matrix Switch


VM1600A
MSRP: Quote Upon Request

Add to Quote Cart
  • Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix Solutions
  • Hot-pluggable: Modular Fan Design Power Module Easy integration of I/O boards
  • Optional redundant power supply for continuous operation
  • Multiple Control Methods – system management via front-panel pushbuttons, RS-232 control, and Ethernet connections (Web GUI)
Red Dot Award, Germany
10-4K
ACTIVATE YOUR 30 DAYS TRIAL
ATEN Unizon

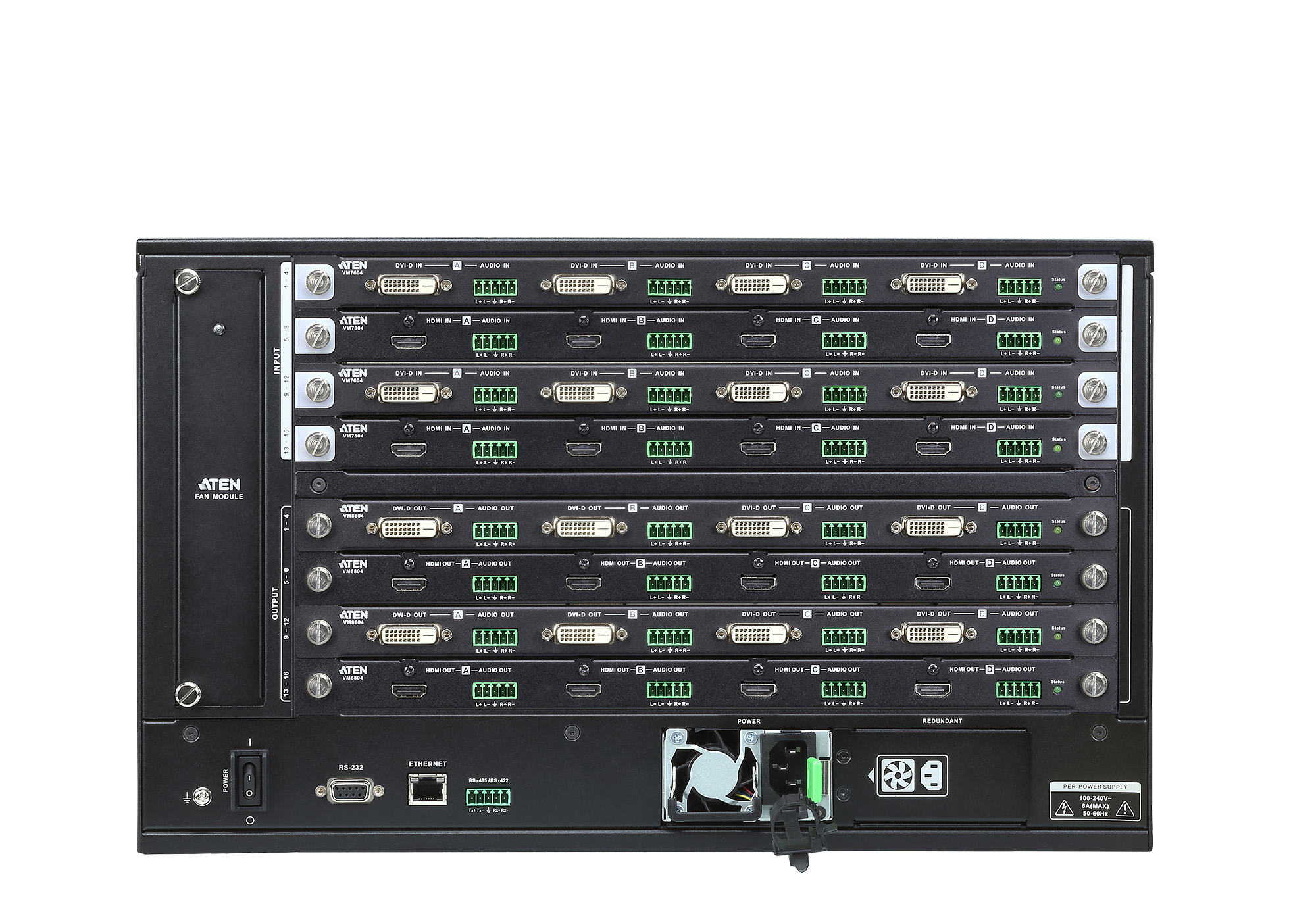

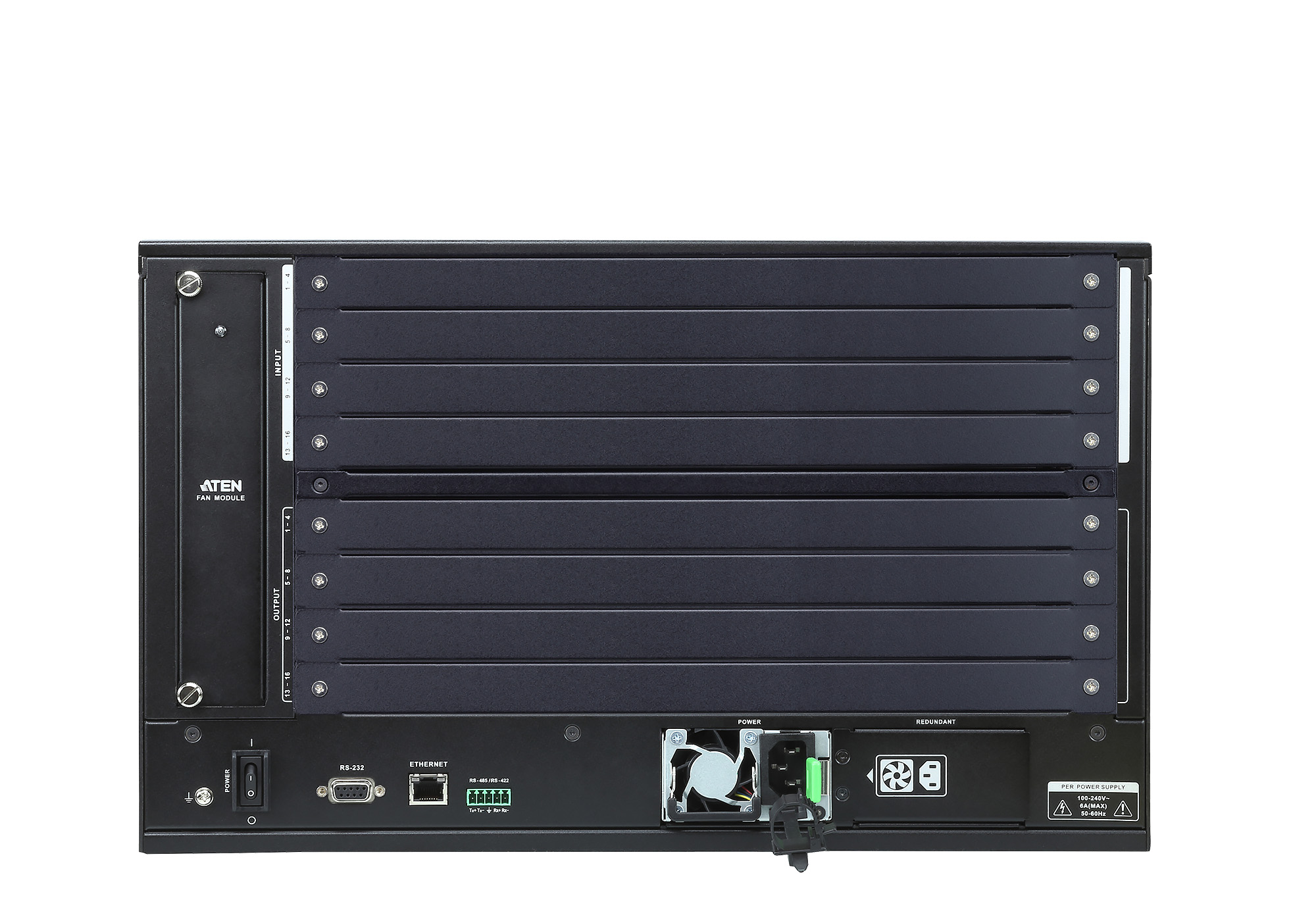

The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.

The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.

Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.

Package Contents

  • 1x VM1600A Modular Matrix Switch
  • 1x Power Cord
  • 1x Terminal Block connector
  • 1x Fan Module (pluggable)
  • 1x Power Module (pluggable)
  • 1x User Instructions
  • Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix I/O Boards
  • Multiple means for system configuration including front-panel pushbuttons, RS-232/422/485 control, and Ethernet connections for web GUI or Telnet
  • View and control via ATEN Video Matrix Control App in a swift and agile way
  • 4K resolutions –up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)*
  • Scaler –features a (4K) video scaling function to convert input resolutions to the display’s native resolutions*
  • Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
  • Video wall –allows you to create custom video wall layouts via intuitive web GUI*
  • Calendar-based scheduling – allows profile playing based on the pre-set schedule and RTC
  • EDID Expert –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
  • Audio-enabled –HDMI audio can be extracted and stereo audio can be embedded*
  • Bi-directional RS-232 channel – allows you to control the connected serial devices simultaneously through the web GUI
  • Supports redundant power module for higher reliability
  • Hot-swappable design for I/O boards, fan module, and power supplies for easy maintenance and higher reliability
  • Enables power supply via HDBaseT with installation of I/O boards and power injectors (VE44PB recommended), eliminating the need for separately installing power infrastructures to save overall cost
  • Optional redundant power supply –ensures reliability for mission-critical applications
  • Long-Reach mode up to 1080p@150m – enables extended AV transmission using the HDBaseT™ Input/Output board with ATEN HDBaseT™ Class A Video Extenders
  • HDCP 2.2 Compatible*
  • HDMI: 3D, Deep Color, 4K*
  • Consumer Electronics Control (CEC) supported*
  • Rack mountable (6U design)
    Note:
    1. The availability of the features with “*”depends on which I/O board is inserted.
    2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
    3. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.
Board Output4 x Slot
Board Input4 x Slot
Video Input
InterfacesDepends on which I/O board is inserted
Max. Data Rate15.2 Gbps (3.8Gbps per Lane)
Audio
InputDepends on which Input board is inserted
OutputDepends on which Output board is inserted
Control
RS-232Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations:
Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
RS-485/RS-422Connector: 1 x Captive Screw Connector, 5 Pole
EthernetConnector: 1 x RJ-45 Female
EDID SettingsEDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Connectors
Power1 x 3-Prong AC Socket
Power
Maximum Input Power Rating100-240 VAC; 50/60Hz; 3/6 A
Power ConsumptionAC110V:460W:166BTU/h
AC220V:460W:156BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
FanAirflow: 55.2 cfm
Operating Voltage: 10.2 - 12VDC
Operating Temp: -10 - 60°C
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight15.11 kg ( 33.28 lb )
Dimensions (L x W x H)48.20 x 46.66 x 26.59 cm
(18.98 x 18.37 x 10.47 in.)
Rack Height (U Spaces)6U
Carton Lot1 pc
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Success stories

The Medical City - Media Distribution, Philippines
K Training Command - Training Room, Korea
Government Institution - Presentation Environment, Spain
Primary School, Hong Kong
Hospital – Remote Observation Control Room – Europe
Selena Group – Elevated 4K-enabled Conference Spaces with Intuitive Control – Poland
Epson - Multifunction Showroom, Taiwan
ATEN - Multifunction Meeting Room, Taiwan
Unione Confcommercio Milano – Conference Room AV Distribution Revamp – Italy
Casino - Security Monitoring, Asia
Artear – Video Walls, Argentina
Jameson Distillery Pub - Digital Signage, Germany
Medytox – Multiple Meeting Space, Korea
Financial Group – 4K KVM over IP for Multiple Control Rooms across IT Center – South Korea
Financial Institution - Control Room, Singapore
