10公尺8K USB-C全功能主動式光纖線材
全新UE3410F
- 將PC與USB-C外接裝置間的傳輸距離延伸至10 公尺
- 支援60W電力傳輸
- 支援DP 1.4 + USB 3.2 Gen 2 (10 Gbps)的2-lane模式或DP 2.1 UHBR10 + USB 2.0 (480 Mbps)的4-lane模式
- 向下相容USB 2.0 / 1.1設備
:

全功能USB-C主動式光纖纜線
支援USB-C 3.2 Gen 2超高資料傳輸速度、DisplayPort 2.1高頻寬影像輸出和電力傳輸。

自動偵測切換DP通道,提供優異的USB與影像輸出品質
無論是四通道DP 2.1 UHBR10 + USB 2.0或雙通道DP 1.4 + USB 3.2 Gen 2 (傳輸速度10 Gbps),外接裝置可自動選取最適用的DisplayPort模式,訊號傳輸高速不卡頓,適配多元應用場域。



60W電力傳輸
隨插即用,輕鬆為外接設備提供高達60W的供電能力。
廣泛相容性,適用各類USB-C設備
訊源與輸出端的最佳橋樑,︀確保優質的USB-C設備輸出效果。

細節經得起考驗,品質值得信賴

USB-C 主動式光纖線材 vs HDMI 主動式光纖線材

聯繫 ATEN 專家
請填寫表格,ATEN專家將與您聯繫。

包裝明細
- 1x UE3410F 10公尺8K USB-C全功能主動式光纖線材
- 1x 使用說明

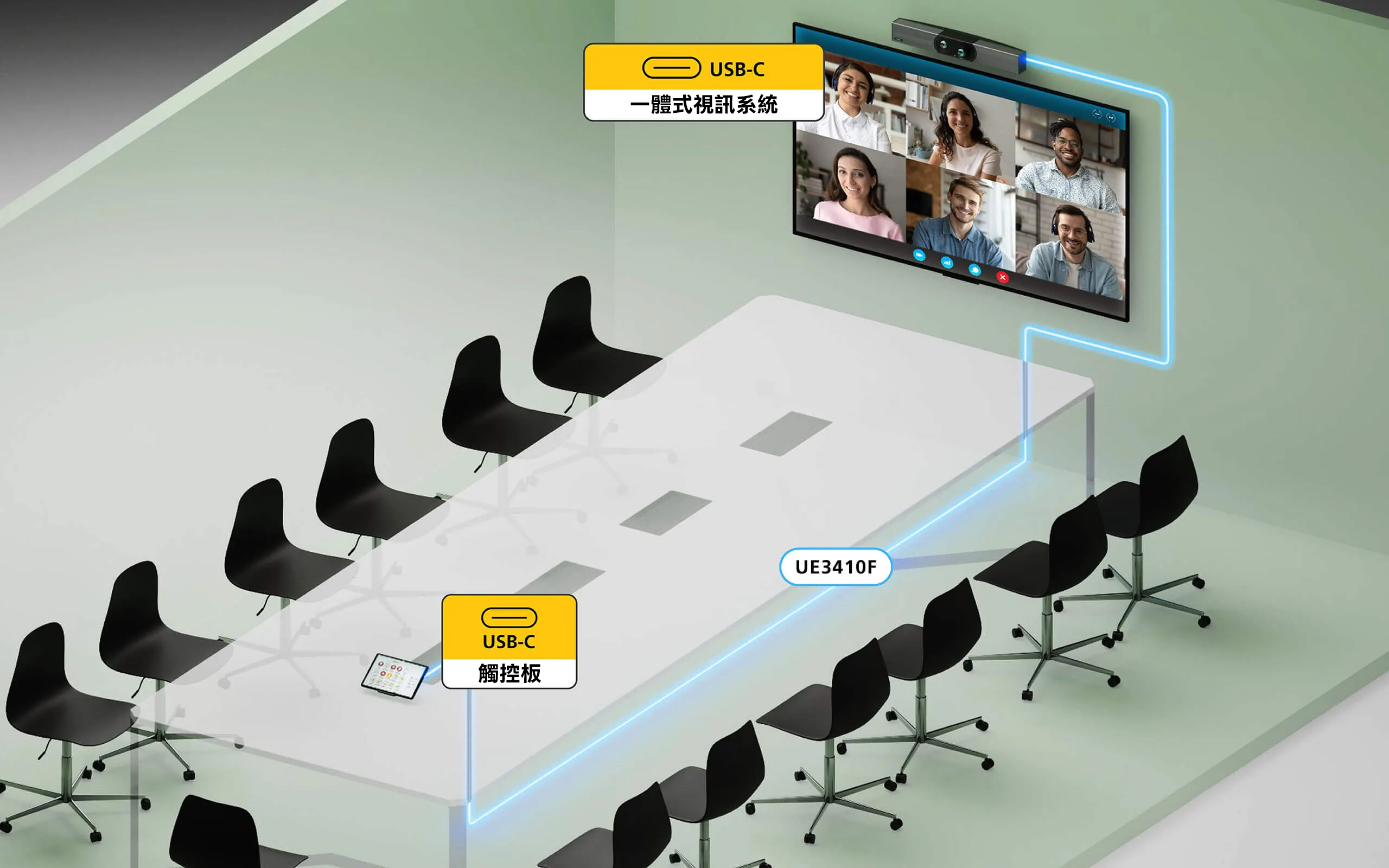

UE3410F是一款USB-C全功能主動式光纖線材,可同時傳輸高速資料、影像訊號與最高60W電力,最遠可達10公尺。產品支援兩種操作模式:DP 1.4 + USB 3.2 Gen 2 (10 Gbps) 的 2-lane模式,或DP 2.1 UHBR10 + USB 2.0 (480 Mbps)的4-lane模式,可支援4K@60Hz的影像解析度。高品質的混合式線材設計具備優異的 EMI / RFI 抗干擾能力,不僅適用於教育和會議場域,也適用於醫療產業。
- 將PC與USB-C外接裝置間的傳輸距離延伸至10公尺
- 支援60W電力傳輸
- 外接裝置可自動選取適用的DisplayPort模式 – DP 1.4 + USB 3.2 Gen 2 (10 Gbps) 的2-lane模式或DP 2.1 UHBR10 + USB 2.0 (480 Mbps) 的4-lane模式
- 支援解析度高達4K @ 60 Hz (不含HDR或DSC)
- 向下相容USB 2.0 / 1.1設備
- 高品質混合式線材提供優異的EMI / RFI抗干擾能力
- 隨插即用
連接介面 | |
USB連接埠 | 1 x USB-C 公頭 |
裝置端 | 1 x USB-C公頭 |
Cable Type | 混合光纖和銅線 |
線材長度 | 10 公尺 |
傳輸速率 | 高達10 Gbps |
耗電量 | DC5V:1.2WBTU/h 附註: ● 單位=瓦特:表示設備在沒有外部負載情況下的典型功率損耗 ● 單位= BTU/h:表示設備滿載時的功率損耗 |
作業環境 | |
操作溫度 | 0–40°C |
儲存溫度 | -20–60°C |
溼度 | 10-80% RH, 無凝結 |
加套 | |
材料 | PVC |
顏色 | 黑 |
機體屬性 | |
外殼材質 | 接頭外殼: 鋅合金 |
重量 g (公克), kg (公斤), lb(英磅) | 0.77 kg ( 1.7 lb ) |
附註 | 1. Make sure to plug the SOURCE connector to the output port of a source device and the DISPLAY connector to the input port of a display device. 2. Bending radius of optical cable must exceed 65 mm when the conduit turns direction. Bending or intermediate splicing is absolutely not allowed. 3. Make sure that the two connectors on the cable are not heavily pressed or pressured. They are very fragile. Please handle with care. 4. When laying optical cables, special caution must be taken that the pulling force is within the tolerance range (<50kg). Lay the cable in even speeds to avoid any impact or sudden stop. 5. When laying optical cables, make sure the speed is controlled not to exceed 20m/minute. |
