DVI HDBaseT-Lite Receiver (1080p@70m) (HDBaseT Class B)


VE601R
DVI HDBaseT-Lite Receiver (1080p@70m) (HDBaseT Class B)-1
DVI HDBaseT-Lite Receiver (1080p@70m) (HDBaseT Class B)-2
DVI HDBaseT-Lite Receiver (1080p@70m) (HDBaseT Class B)-3

Inquire Now
  • HDBaseT Connectivity – extends a DVI connection up to 70 meters via a single Ethernet cable
  • HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
  • Rack-Mountable
HDBaseT
ROHS
Supports(3D)
Weee
hdbaset
Product_sBanner_HDBaseT

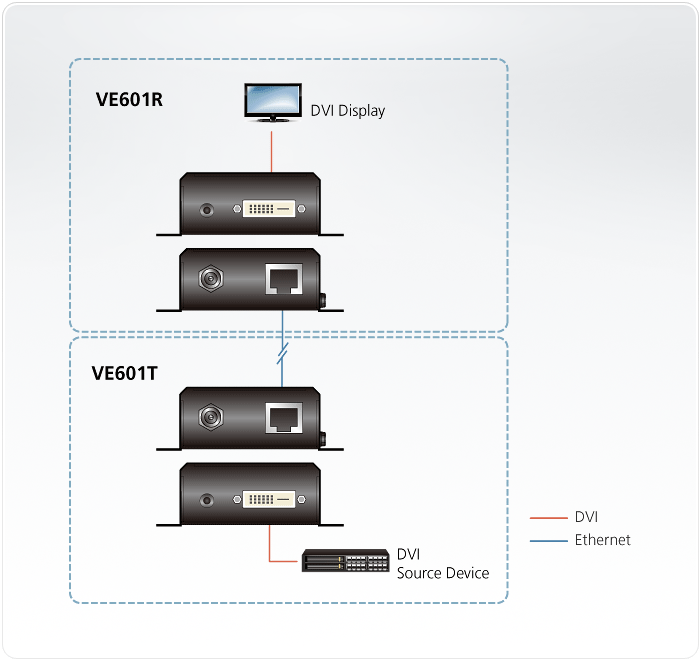

The VE601R DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.


The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.

* Compatible HDBaseT Transmitter Units: VE601T, VE801T

Package Contents

  • 1x VE601R DVI HDBaseT-Lite Receiver
  • 1x Power Adapters
  • 1x User Instructions
  • HDBaseT Connectivity – extends a DVI 1080p connection up to 70 meters via a single Cat 6a/ATEN 2L-2910 Cat 6 cable
  • DVI (3D, Deep color); HDCP 1.4 compliant
  • Superior video quality –1920 x 1200@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m(Cat 5e/6) / 70m (Cat 6a)
  • HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
  • Plug-and-play
  • Rack-mountable

DVI HDBaseT-Lite Receiver
(HDBaseT Class B)


Video Output
Impedance100 Ώ
Interfaces1 x DVI-D Female (White)
Video
Max. Pixel Clock340 MHz
Max. Data Rate10.2Gbps (3.4Gbps per lane)
ComplianceDVI (3D, Deep Color)
HDCP compatible
Max. Resolutions / DistanceUp to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910 Cat6)
Connectors
Power1 x DC Jack with locking
Unit To Unit1 x RJ-45 Female
Power ConsumptionDC5V:4.36W:20BTU
Environmental
Operating Temperature0-50°C
Storage Temperature-20 - 60°C
Humidity0% - 80% RH, Non-condensing
Physical Properties
HousingMetal
Weight0.25 kg ( 0.55 lb )
Dimensions (L x W x H) with bracket10.20 x 8.70 x 3.00 cm
(4.02 x 3.43 x 1.18 in.)
Dimensions (L x W x H) without bracket9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
