DVI HDBaseT-Lite Transmitter (1080p@70m) (HDBaseT Class B)
VE601T
- HDBaseT connectivity – extends a DVI connection up to 70 m
- HDBaseT Anti-Jamming – resists signal interference during video transmission
- Rack-mountable

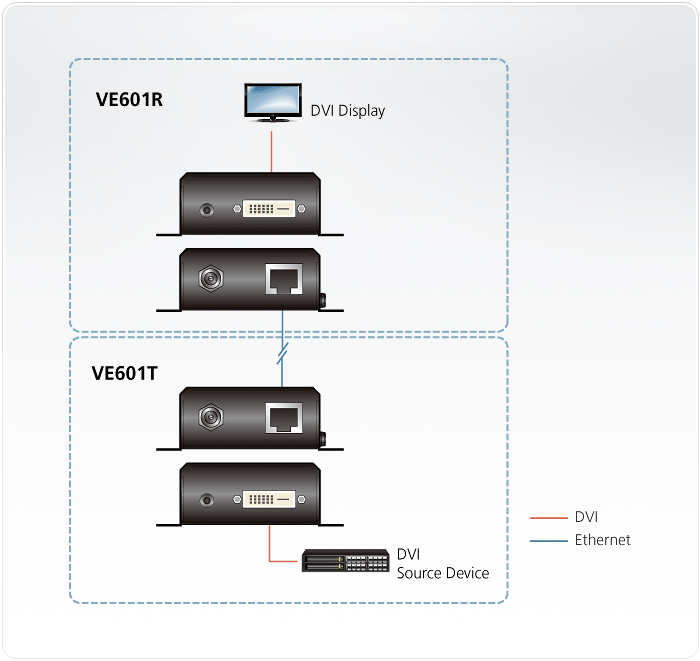

The VE601T DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.
* Compatible HDBaseT Receiver Units: VE601R, VE801R
Package Contents
- 1x VE601T DVI HDBaseT-Lite Transmitter
- 1x Power Adapters
- 1x User Instructions
- HDBaseT connectivity – extends a DVI connection up to 70 m
- Superior video quality – 1920 x 1200 @ 35 m (Cat 5e / 6) / 40 m (Cat 6a) ; 1080p @ 60 m (Cat 5e / 6) / 70 m (Cat 6a / ATEN 2L-2910)
- DVI (3D, Deep Color); HDCP 1.4 compliant
- HDBaseT Anti-Jamming – resists signal interference during video transmission
- Plug-and-play
- Rack-mountable
Video Input | |
Interfaces | 1 x DVI-D Female (White) |
Impedance | 100Ω |
Max. Distance | Up to 1.8m |
Video | |
Max. Pixel Clock | 340 MHz |
Max. Data Rate | 10.2Gbps (3.4Gbps per lane) |
Compliance | DVI (3D, Deep Color) HDCP compatible |
Max. Resolutions / Distance | Up to 1920x1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910 Cat6) |
Connectors | |
Power | 1 x DC Jack with locking |
Unit To Unit | 1 x RJ-45 Female |
Power Consumption | DC5V:1.84W:9BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental | |
Storage Temperature | -20 - 60°C |
Operating Temperature | 0-50°C |
Humidity | 0% - 80% RH, Non-condensing |
Physical Properties | |
Housing | Metal |
Weight | 0.25 kg ( 0.55 lb ) |
Dimensions (L x W x H) with bracket | 10.20 x 8.70 x 3.00 cm (4.02 x 3.43 x 1.18 in.) |
Dimensions (L x W x H) without bracket | 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.) |
User Manual
File Name | Release Date |
ve601-user-manual-w.pdf (713.64 KB) | 2023-10-13 |
