HDMI HDBaseT-Lite Extender (4K@40m) (HDBaseT Class B) - TAA Compliant
VE801
- HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
- TAA Compliant

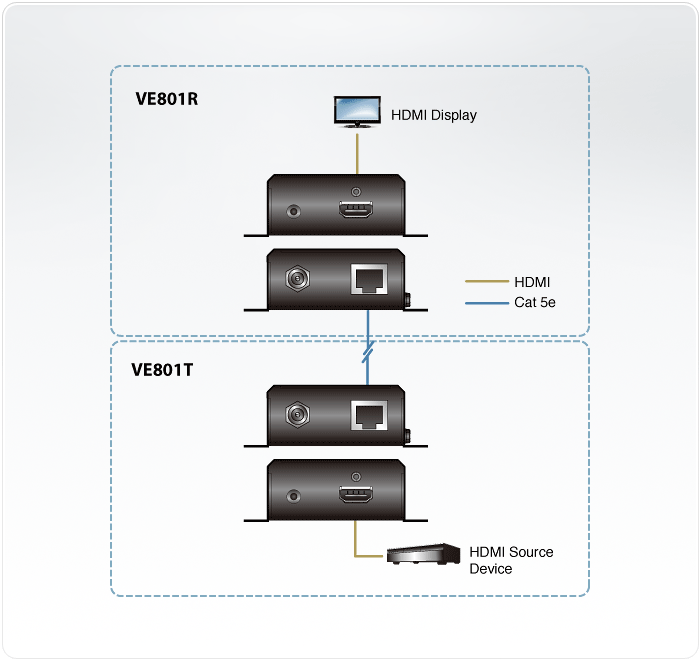

The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
Package Contents
- 1x VE801T/R HDMI HDBaseT-Lite Extender
- 2x Power Adapters
- 1x User Instructions
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Plug-and-play
- Rack-mountable
Function | VE801R | VE801T |
Video Input | ||
Interfaces | N/A | 1 x HDMI Type A Female (Black) |
Impedance | N/A | 100 Ω |
Max. Distance | N/A | 3 m |
Video Output | ||
Interfaces | 1 x HDMI Type A Female (Black) | N/A |
Impedance | 100 Ω | N/A |
Max. Distance | 3 m | N/A |
Video | ||
Max. Data Rate | 10.2Gbps (3.4Gbps per lane) | 10.2Gbps (3.4Gbps per lane) |
Max. Pixel Clock | 340 MHz | 340 MHz |
Compliance | HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) | HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
Max. Resolutions / Distance | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Audio | ||
Input | N/A | 1 x HDMI Type A Female (Black) |
Output | 1 x HDMI Type A Female (Black) | N/A |
Connectors | ||
Power | 1 x DC Jack (Black) with locking | 1 x DC Jack (Black) with locking |
Unit To Unit | 1 x RJ-45 Female | 1 x RJ-45 Female |
Power Consumption | DC5V:4.24W:20BTU | DC5V:1.86W:9BTU |
Environmental | ||
Operating Temperature | 0-50°C | 0-50°C |
Storage Temperature | -20 - 60°C | -20 - 60°C |
Humidity | 0% - 80% RH, Non-condensing | 0% - 80% RH, Non-condensing |
Physical Properties | ||
Housing | Metal | Metal |
Weight | 0.25 kg ( 0.55 lb ) | 0.24 kg ( 0.53 lb ) |
Dimensions (L x W x H) with bracket | 9.86 x 8.70 x 3.00 cm (3.88 x 3.43 x 1.18 in.) | 9.86 x 8.70 x 3.00 cm (3.88 x 3.43 x 1.18 in.) |
Dimensions (L x W x H) without bracket | 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.) | 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.) |
