HDMI HDBaseT Transmitter (4K@100m) (HDBaseT Class A)


VE811T
  • HDBaseT Connectivity – extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • HDCP 2.2 compatible
HDBaseT_Recommended
HDMI
ROHS
Weee

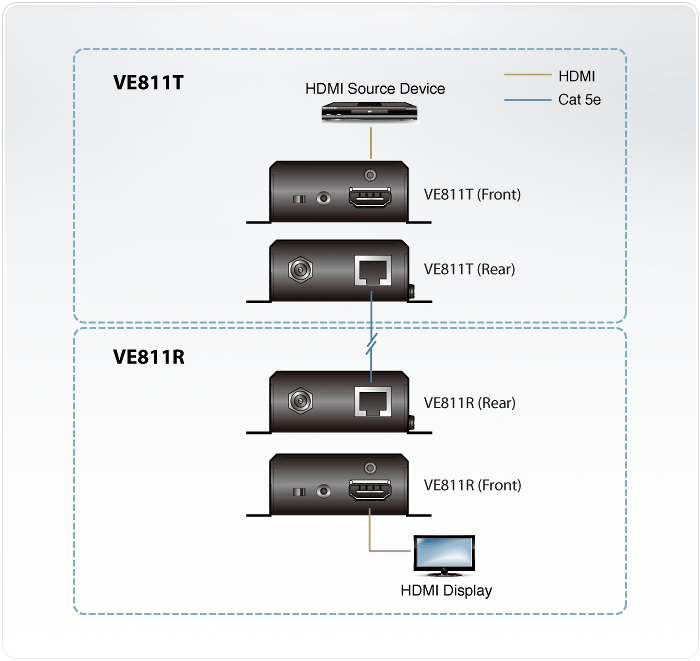

The ATEN VE811T HDMI HDBaseT Transmitter guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811T meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K.

Pushing the technology and design to the limit, the compact design makes the VE811T easy to mount in any location. Engineered for today’s digital trends, the VE811T is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.

Package Contents

  • 1x VE811T HDMI HDBaseT Transmitter
  • 1x Power Adapters
  • 1x User Instructions
  • HDBaseT Connectivity – extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep Color, 4K)
  • HDCP 2.2 compatible
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Supports wide screen format
  • Plug and play – no software required
  • Built- in 8KV/ 15 KV ESD protection
  • Rack Mountable


Video Input
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ώ
Max. Distance1.8 m
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / DistanceUp to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input1 x HDMI Type A Female (Black)
Connectors
Unit To Unit1 x RJ-45 Female
Firmware Upgrade1 x Mini Stereo Jack Female (Black)
Power1 x DC Jack (Black) with locking
Switches
Long Reach Mode Switch1 x Slide Switch - ON/OFF
Power ConsumptionDC5V:3.77W:18BTU
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.16 kg ( 0.35 lb )
Dimensions (L x W x H) with bracket8.64 x 7.30 x 2.47 cm
(3.4 x 2.87 x 0.97 in.)
Dimensions (L x W x H) without bracket8.20 x 5.20 x 2.37 cm
(3.23 x 2.05 x 0.93 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
