4-Port USB VGA/Audio Cable KVM Switch (1.8m)
CS64U
- Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B
- Computer Selection via hotkey
- Multiplatform support - Windows, Linux, Mac, and Sun
- Built-in 1.8 m cables and bus-powered design
MSRP:
Quote Upon Request
The CS64U takes a giant step forward from prior cable KVM models, by offering built-in cables, USB peripheral sharing, and a firmware upgrade function that allows you to keep up with latest available versions.
Furthermore, the CS64U features enhanced Video DynaSync™ technology, which stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution. The CS64U also offers multiplatform support and computer selection via hotkeys to provide the ultimate in desktop convenience.
Package Contents
- 1x 4-Port USB KVM Switch with Attached Cables
- 1x User Instructions

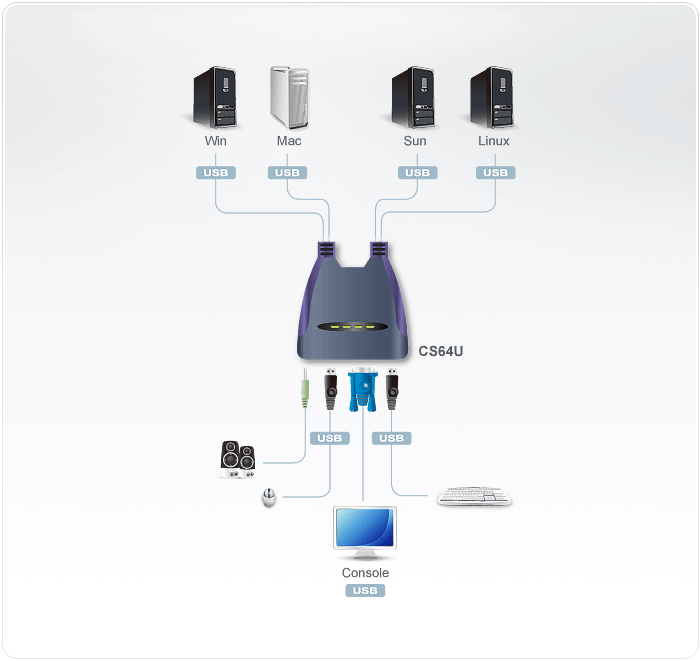

- One USB console controls four USB computers
- Compact design, built-in 1.8 m cables
- Hotkey selection for OS and keyboard language
- Computer Selection via hotkey
- Multiplatform support - Windows, Linux, Mac, and Sun
- Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
- Supports multifunction and wireless keyboards and mice
- All-in-one design
- With speaker support
- Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B
- Auto Scan function to monitor computer operation
- Bus-powered
- Sun/Mac keyboard support and emulation*
- Firmware upgradable
* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers
Computer Connections | 4 |
Port Selection | Hotkey |
Connectors | |
Console Ports | 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) |
KVM Ports | 4 x HDB-15 Male (Blue) 4 x USB Type A Male 4 x 3.5mm Audio Jack Male (Green) |
LEDs | |
Selected | 4 (Green) |
Cable Length | |
Computer | 4 x 1.8 m |
Emulation | |
Keyboard / Mouse | USB |
Video | 2048 x 1536 @ 60Hz; DDC2B |
Scan Interval | 1-99 seconds |
Power Consumption | DC5V:0.9W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental | |
Operating Temperature | 0 – 50°C |
Storage Temperature | -20 – 60°C |
Humidity | 0 – 80% RH, Non-condensing |
Physical Properties | |
Housing | Plastic |
Weight | 0.73 kg ( 1.61 lb ) |
Dimensions (L x W x H) | 9.41 x 9.72 x 2.60 cm (3.7 x 3.83 x 1.02 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Quick Start Guides
CS64U-CS64US-4-Port-USB-KVM-Switch-QSG-BSMI.pdf (25.14 MB) cs64u_64us_kvm_switch_ug.pdf (5.39 MB)Firmware
Desc. | Ver. | Release Date | File Name |
Firmware Upgrade | v1.1.103 | 2012-07-04 | cs64u_v1.1.103.zip |
Firmware Upgrade | v1.1.102 | 2011-10-12 | cs64u_v1.1.102.zip |
Firmware Upgrade | v1.1.101 | 2010-09-15 | cs64u_v1.1.101.zip |
Firmware Upgrade | v1.0.076 | 2010-03-08 | cs64u_v1.0.076.zip |
Firmware Upgrade | v1.0.075 | 2010-02-03 | cs64u_v1.0.075.zip |
