2-Port USB HDMI/Audio KVMP™ Switch


CS1792
  • Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
  • PC selection via pushbutton and hotkeys
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Multiplatform support - Windows, Linux,and Mac
HDMI
:

With the unique design and innovative features, the CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.

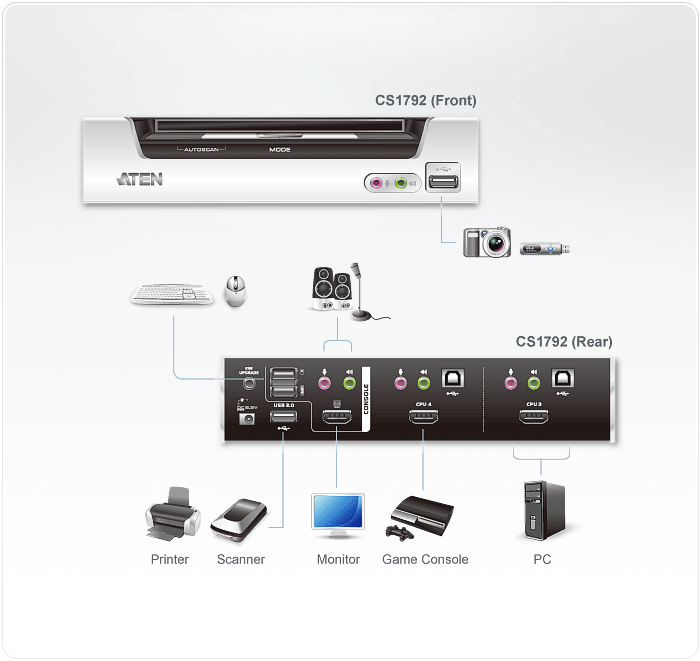

Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.

Ideal for multimedia applications in the office, the CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.

Package Contents

  • 1x CS1792 USB 2.0 HDMI KVMP™ Switch
  • 2x KVM Cable (HDMI, USB, Audio; 1.8m/6ft)
  • 1x Firmware Upgrade Cable
  • 1x Power Adapter
  • 1x User Instructions
  • 2-port HDMI USB 2.0 KVMP™ Switch
  • One USB console controls two HDMI-interface computers and two additional USB devices
  • 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
  • Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
  • HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
  • Dolby True HD and DTS HD Master Audio support
  • Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
  • Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
  • Supports widescreen resolutions
  • Multiplatform support - Windows, Linux,and Mac
  • Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Complete keyboard emulation for error-free booting
  • Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers and HDMI devices
  • Firmware Upgradable

    * 1. PC keyboard combinations emulate Mac Keyboards
       2. Mac keyboards only work with their own computers
Computer Connections2
Port SelectionHotkey, Pushbutton
Connectors
Console Ports2 x USB Type A Female (rear panel)
1 x HDMI Female (Black)
2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM Ports2 x USB Type B Female
2 x HDMI Female (Black)
2 x 3.5 mm Audio Jack Female (Green)
2 x 3.5 mm Audio Jack Female (Pink)
Firmware Upgrade1 x 3.5 mm Audio Jack Female (Black)
Power1 x DC Jack
USB Hub2 x USB Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected3 x Pushbutton
LEDs
Audio3 (Green)
KVM3 (Orange)
USB3 (Green)
Emulation
Keyboard / MouseUSB
Video1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz
Scan Interval1-99 seconds (default: 5 sec.)
Power ConsumptionDC5.3V:2.7W:28BTU
Environmental
Operating Temperature0-50°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal, Plastic
Weight0.42 kg ( 0.93 lb )
Dimensions (L x W x H)20.63 x 7.24 x 4.40 cm
(8.12 x 2.85 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.





Desc.Ver.Release DateFile Name
Firmware Upgradev1.4.1342023-04-14 CS1792-94-v1.4.134.zip
Firmware Upgradev1.4.1332022-10-14 cs1792_1794_v1.4.133.zip
Firmware Upgradev1.4.1322022-05-05 cs1792_1794_v1.4.132.zip
Firmware Upgradev1.3.1242019-05-27 cs1792_1794_v1.3.124.zip
Firmware Upgradev1.3.1232018-04-02 cs1792_1794_v1.3.123.zip
Firmware Upgradev1.3.1222017-09-29 cs1792_1794_v1.3.122.zip
Firmware Upgradev1.2.1192017-08-23 cs1792_1794_v1.2.119.zip
Firmware Upgradev1.2.1182015-11-12 cs1792_1794_v1.2.118.zip
Firmware Upgradev1.2.1142014-11-26 cs1792_1794_v1.2.114.zip
Firmware Upgradev1.2.1132013-11-27 cs1792_1794_v1.2.113.zip
Firmware Upgradev1.1.1012009-04-01 cs1794_1792_v1.1.101.zip
