4-Port USB VGA/Audio KVM Switch


CS74U
  • Superior video quality – 2048 x 1536; DDC2B
  • Computer selection via front panel pushbuttons
  • Audio enabled and multiplatform support - Windows, Linux and Mac
  • Bus-powered design
:

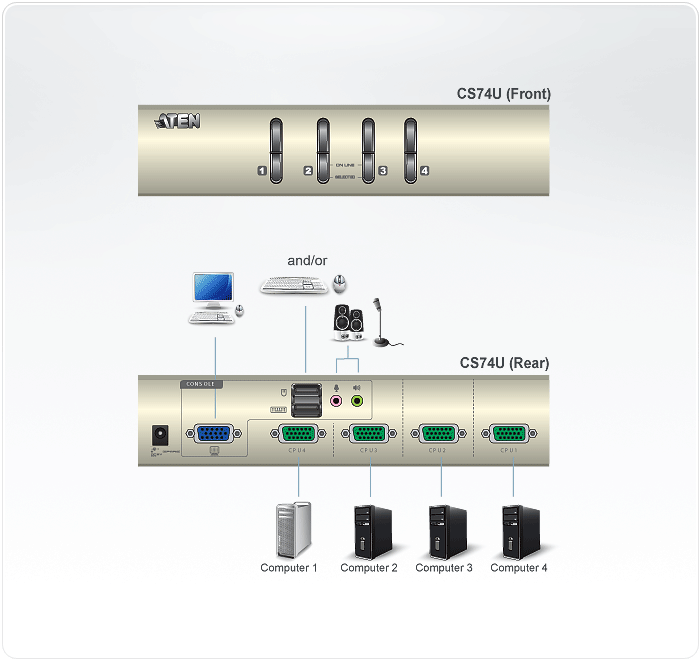

The CS74U 4-Port USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (keyboard and mouse, audio and VGA monitor).

With the CS74U, you can access computers conveniently using port selection pushbuttons located on the unit’s front panel.

Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS74U intercepts keyboard input directly, it will work on multiple computing platforms.

Package Contents

  • 1x CS74U 4-Port USB KVM Switch
  • 2x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
  • 2x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
  • 1x User Instructions
  • Note: The provided custom KVM cable set is custom-made to work with CS72U / CS74U, which transmits video, audio, and USB signals from the unit to the connected PC. There are two custom KVM cable sets available for purchase (1.2 m custom KVM cable set: LIN5-23X5-X31G; 1.8 m custom KVM cable set: LIN5-23X5-X32G). To purchase additional custom-made KVM cables, please contact your ATEN dealer for more information.
  • One VGA console controls four USB VGA interface computers
  • Computer selection via front panel pushbuttons
  • Multiplatform support - Windows, Linux and Mac
  • Audio Enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
  • Superior video quality – 2048 x 1536; DDC2B
  • Supports USB hot-plugging
  • Bus-Powered
Computer Connections4
Port SelectionPushbutton
Connectors
Console Ports2 x USB Type A Female (Black)
1 x HDB-15 Female (Blue)
1 x mini stereo Jack Female (Pink)
1 x mini stereo Jack Female (Green)
KVM Ports4 x SPHD-18 Female (Green)
Power1 x DC 5V Jack (Spare)
LEDs
Online4 (Orange)
Selected4 (Green)
Switches
Selected4 x Pushbuttons
Video2048 x 1536 @ 60 Hz; DDC2B
Power ConsumptionDC5V:0.177W:5BTU
Environmental
Operating Temperature0-50°C
Storage Temperature-20-60°C
Humidity0 - 80% RH, Non-condensing
Physical Properties
HousingMetal
Weight0.64 kg ( 1.41 lb )
Dimensions (L x W x H)20.00 x 7.65 x 4.40 cm
(7.87 x 3.01 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
