4-Port USB HDMI/Audio KVMP™ Switch


CS1794
  • Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
  • PC selection via pushbutton and hotkeys
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Multiplatform support - Windows, Linux,and Mac
HDMI

Your cart

Total
Shipping and discount codes are added at checkout.

The CS1794 allows quick access to 4 HDMI-interfaced PCs via one KVM console and flexible media sharing via a 2-port USB hub, which helps to expand your desktop workspace while keeping it tidy and organized for improved productivity. With the shared FHD video quality and speaker set, multitasking between computers can be more enjoyable.

Smooth Cross-Platform Integration

The CS1794 enables the integration of different computer systems (Windows, Mac and Linux) that are accessible from one KVM console.

Video DynaSync™

ATEN's patented Video DynaSync™ ensures correct resolutions and display configurations are maintained when switching between ports under all operating systems, while also eliminating boot-up display problems and assuring smooth desktop operation.

Flexible USB Peripheral Sharing

The built-in 2-port USB hub can be used for plug-n-play connection to compatible USB 2.0 peripheral devices (ex. printer, flash drive, scanner, etc) to fulfill data-intensive desktop work requirements.

Applications

Product Comparison



Package Contents

  • 1x CS1794 USB 2.0 HDMI KVMP™ Switch
  • 4x KVM Cable (HDMI, USB, Audio; 1.8m/6ft)
  • 1x Firmware Upgrade Cable
  • 1x Power Adapter
  • 1x User Instructions

With the unique design and innovative features, the CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.

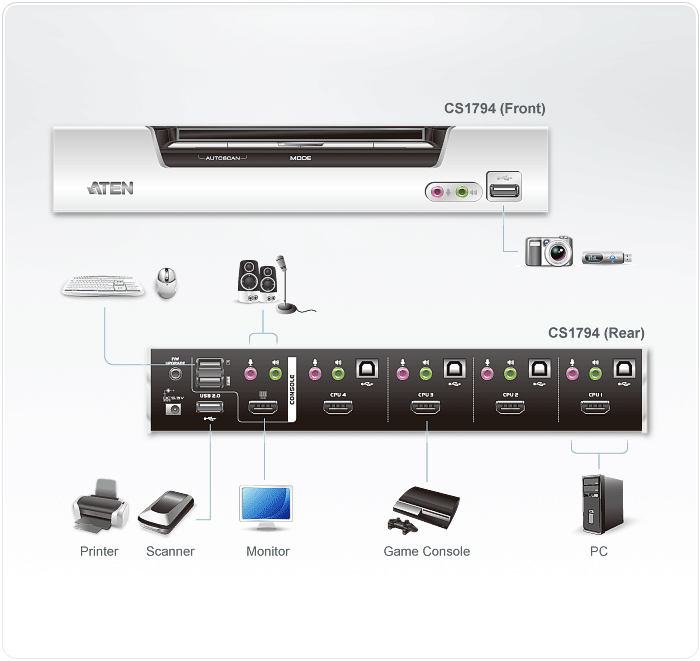

Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.

Ideal for multimedia applications in the office, the CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.



  • 4-port HDMI USB 2.0 KVMP™ Switch
  • One USB console controls four HDMI-interface computers and two additional USB devices
  • 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
  • Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
  • HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
  • Dolby True HD and DTS HD Master Audio support
  • Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
  • Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
  • Supports widescreen resolutions
  • Multiplatform support - Windows, Linux,and Mac
  • Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Complete keyboard emulation for error-free booting
  • Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers and HDMI devices
  • Firmware Upgradable

    * 1. PC keyboard combinations emulate Mac Keyboards
       2. Mac keyboards only work with their own computers
Computer Connections4
Port SelectionHotkey, Pushbutton
Connectors
Console Ports2 x USB Type A Female (rear panel)
1 x HDMI Female (Black)
2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM Ports4 x USB Type B Female
4 x HDMI Female (Black)
4 x 3.5 mm Audio Jack Female (Green)
4 x 3.5 mm Audio Jack Female (Pink)
Firmware Upgrade1 x 3.5 mm Audio Jack Female (Black)
Power1 x DC Jack
USB Hub2 x USB Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected5 x Pushbutton
LEDs
Audio5 (Green)
KVM5 (Orange)
USB5 (Green)
Emulation
Keyboard / MouseUSB
Video1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz
Scan Interval1-99 seconds (default: 5 sec.)
Power ConsumptionDC5.3V:4.88W:38BTU
Environmental
Operating Temperature0-50°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal, Plastic
Weight0.53 kg ( 1.17 lb )
Dimensions (L x W x H)26.23 x 7.24 x 4.40 cm
(10.33 x 2.85 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.





Desc.Ver.Release DateFile Name
Firmware Upgradev1.4.1332022-10-14 cs1792_1794_v1.4.133.zip
Firmware Upgradev1.4.1322022-05-05 cs1792_1794_v1.4.132.zip
Firmware Upgradev1.3.1242019-05-27 cs1792_1794_v1.3.124.zip
Firmware Upgradev1.3.1232018-04-02 cs1792_1794_v1.3.123.zip
Firmware Upgradev1.3.1222017-09-29 cs1792_1794_v1.3.122.zip
Firmware Upgradev1.2.1192017-08-23 cs1792_1794_v1.2.119.zip
Firmware Upgradev1.2.1182015-11-12 cs1792_1794_v1.2.118.zip
Firmware Upgradev1.2.1142014-11-26 cs1792_1794_v1.2.114.zip
Firmware Upgradev1.2.1132013-11-27 cs1792_1794_v1.2.113.zip
Firmware Upgradev1.1.1012009-04-01 cs1794_1792_v1.1.101.zip
